Generac Portable Products 2,300 PSI Pressure Washer
4
Adjustable Nozzle Always attached to nozzle
extension. Adjustable nozzle allows you to adjust force
of spray and spray pattern.
Air Cleaner Dry type filter element limits the
amount of dirt and dust that gets into the engine.
Automatic Cool Down System Cycles water
through pump when internal water temperature
reaches 140°-145°F. Warm water will discharge
from pump onto ground.
Chemical Inject Hose Siphons detergent into the
spray pattern.
Choke Rod Prepares a cold engine for starting.
Goggles Always use the enclosed goggles or other
eye protection when running your pressure washer.
High Pressure Hose Connect one end to water
pump and the other end to spray gun.
High Pressure Outlet Connection for high
pressure hose.
Nozzle Extension Attach to spray gun to use
adjustable nozzle.
Oil FillOil input area.
Pump Develops high pressure.
Recoil Starter Used for starting the engine
manually.
Spray Gun Controls the application of water onto
cleaning surface with trigger device. Includes safety
latch.
Throttle Lever Sets engine in starting mode for
recoil starter and stops a running engine.
Water Inlet Connection for garden hose.
KNOW YOUR PRESSURE WASHER
Read this owners manual and safety rules before operating your pressure washer.

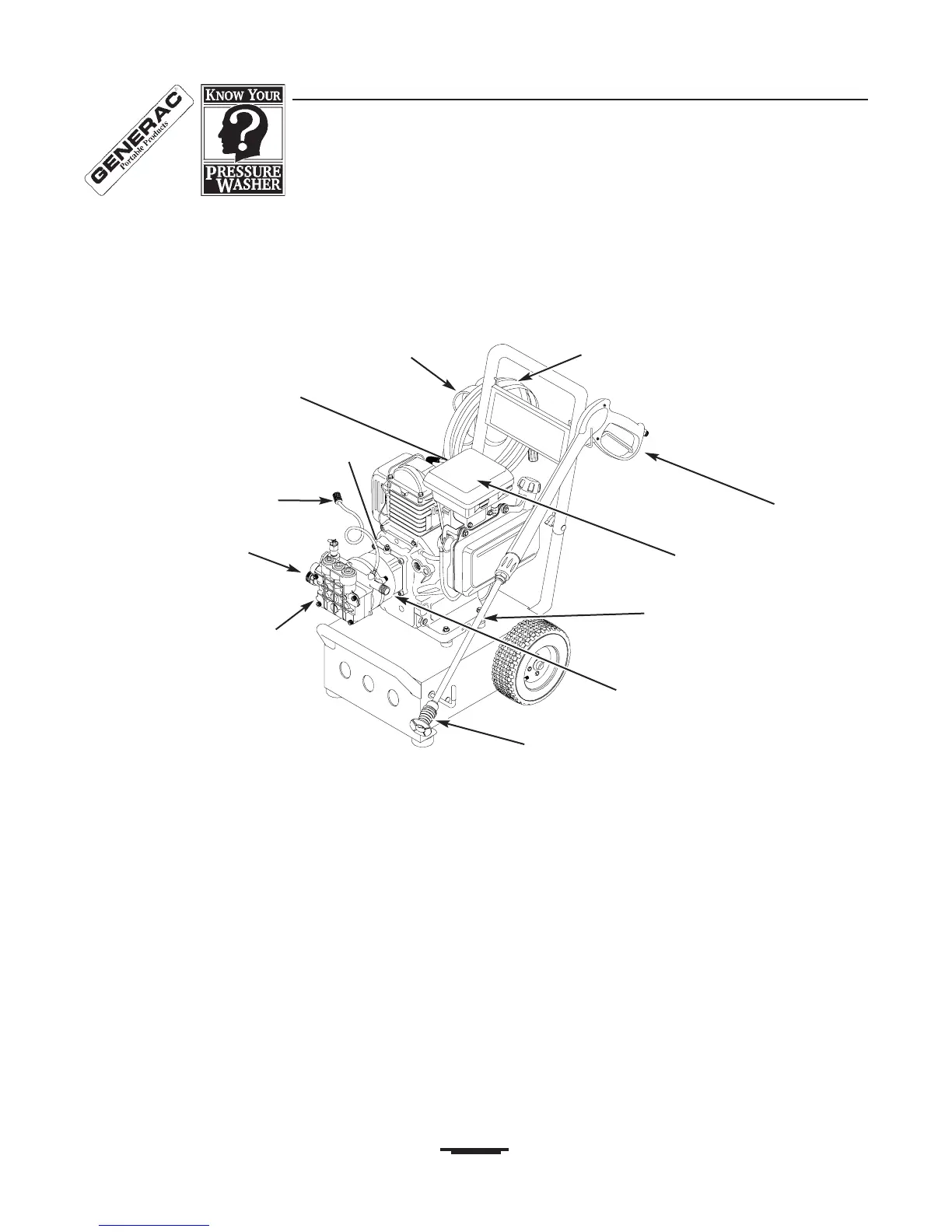

Compare the illustration below with your pressure washer to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
High Pressure Hose
Adjustable Nozzle
Nozzle Extension
Safety Goggles
High Pressure Outlet
Pump equipped with
Automatic Cool Down
System
Spray Gun
Water Inlet
Chemical Inject Hose
Oil Fill
Recoil Starter, Throttle
Lever, Choke Rod
(Located near recoil starter)
Air Cleaner
