Generac Portable Products 3,500 Watt Generator
18

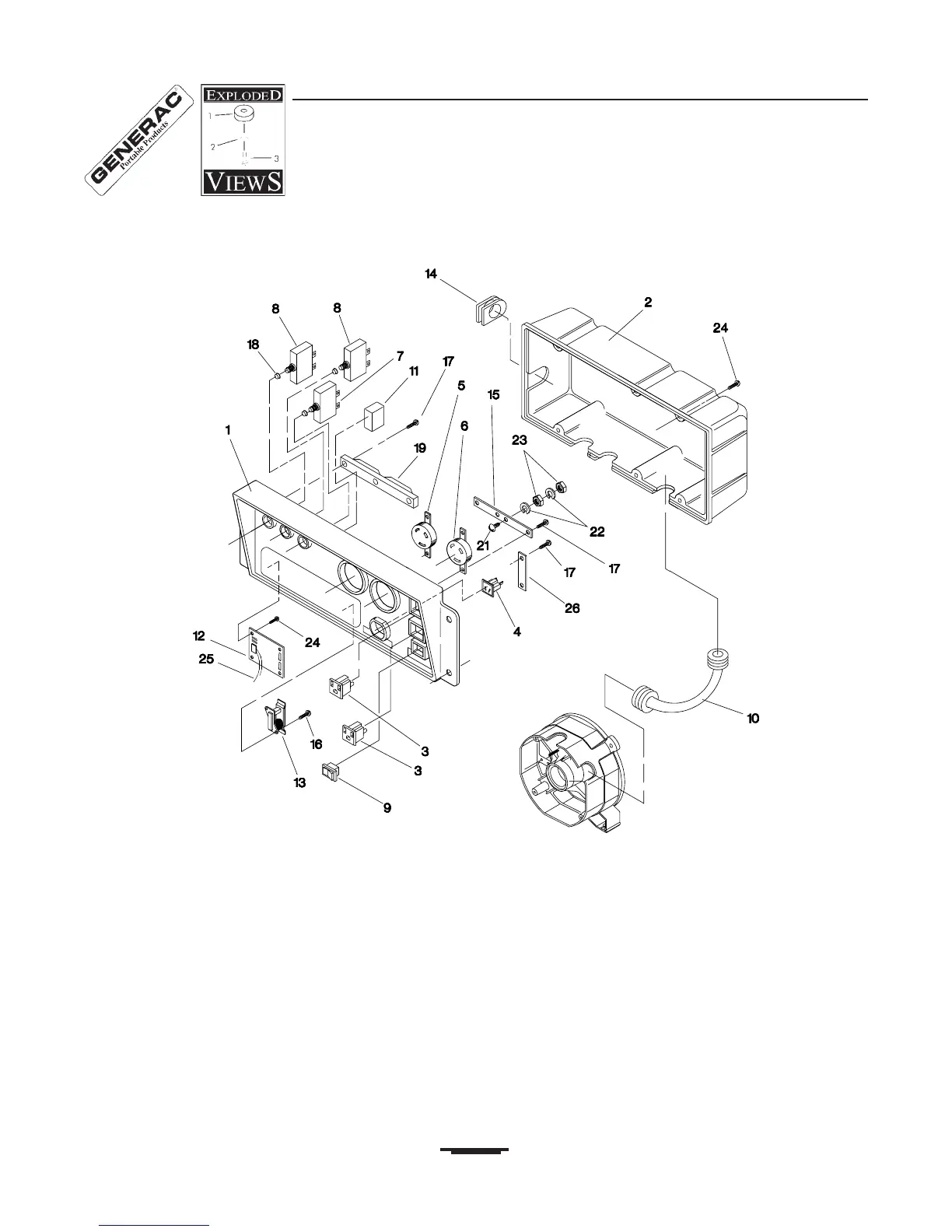

EXPLODED VIEW/PARTS LIST – CONTROL PANEL
Item Part # Qty. Description
1 83976 1 PANEL, Control
2 83975 1 BOX, Control
3 66818 2 OUTLET, 120 Volts AC
4 66821 1 OUTLET, 12 Volts DC
5 68867C 1 OUTLET, 120/240 Volts, 20 Amp
Locking
6 68868C 1 OUTLET, 120 Volts, 30 Amp
Locking
7 75207A 1 CIRCUIT BREAKER, 30 Amp
8 75207G 2 CIRCUIT BREAKER, 18 Amp
9 82538 1 SWITCH, On/Off Rocker
10 84134 1 GROMMET, Rubber
11 83514 1 CIRCUIT BREAKER, 10 Amp
12 83970 1 CONTROL BOARD, System
Item Part # Qty. Description
13 84028 1 TRANSFORMER, Idle Control
14 67022 1 GROMMET, Rubber
15 85584 1 BAR, Bus
16 84543A 2 SCREW, 3.0 x 12mm
17 84543C 9 SCREW, 3.5 x 18mm
18 84198 3 SHIELD, Circuit Breaker
19 84197 1 BAR, Circuit Breaker Retaining
21 75476 2 SCREW, 4.15 x 16mm
22 22264 4 WASHER, M4 Lock
23 51715 4 NUT, M3 Hex
24 84543B 10 SCREW, 3.5 x 12mm
25 84335 1 WIRE HARNESS
26 82542 1 BAR, DC Outlet Retaining
To Next Page
