Generac Portable Products G1000M Generator
17
Item Part # Qty Description
1 187436 1 CAP, FUEL
2 187439 1 PACKING, TANK
3 187438 1 FLTR, FUEL
4 187769 3 U-PACKING
5 187437 1 TANK, FUEL, 4.5L
6 187766 1 DECAL, CHOKE
7 187756 4 BOLT, COVER (M5-16)
8 187875 1 HSG, GEN, MFFLR
9 187807 1 DECAL, WARNING
10 187772 1 COVER, SPARK PLUG
11 187757 5 BOLT, COVER (M6-16)
12 187760 11 PHMS, M4-12 W/FW
13 187435 1 CVR, MFFLR, GEN
14 187775 3 BOLT, MFFLR CVR (M6-16)
15 187768 1 DECAL CAUTION HOT
16 187774 4 BOLT, COVER (M6-20)
17 187761 8 NUT, M4X0.6 W/FW
18 187463 1 INSLTN, MFFLR
19 187874 1 HSG, GEN
20 NSP 1 DECAL, EMISSIONS
21 187457 1 CONDENSER, 300V
22 187765 1 DECAL, CAUTION FUEL
23 187759 2 BOLT, COVER (M5-10)
Item Part # Qty Description
24 187462 1 DIODE, BRIDGE
25 187881 1 BOTTLE, OIL
26 20566 1 DECAL, 1-800
27 187773 1 COVER, OIL FILL
28 187460 1 CB, DC
29 187454 1 CB, 8A, 125V
30 187873 1 OUTLET, ACCESSORY DC
31 187450 1 SWITCH, ENG, ON/OFF
32 187812 1 CPNL
33 187456 1 RECPTCL, 15A, 125V
34 187763 1 DECAL, CAUTION OIL
35 187876 1 CABLE, BATTERY CHARGE
36 187340 1 DECAL, MODEL
37 187764 1 DECAL, FUEL SHUTOFF
38 187447 1 INSLTN, HTSHLD, TANK #1
39 187448 1 INSLTN, HTSHLD, TANK #2
40 187442 2 BRKT, TANK, FUEL
41 187758 1 BRKT, FUEL COCK
42 187443 1 COCK, FUEL
43 187770 1 PHMS, M5-10 W/FW
44 187579 1 CLIP, FUEL HOSE
45 187440 1 FLTR, FUEL
46 187578 1 HOSE, FUEL

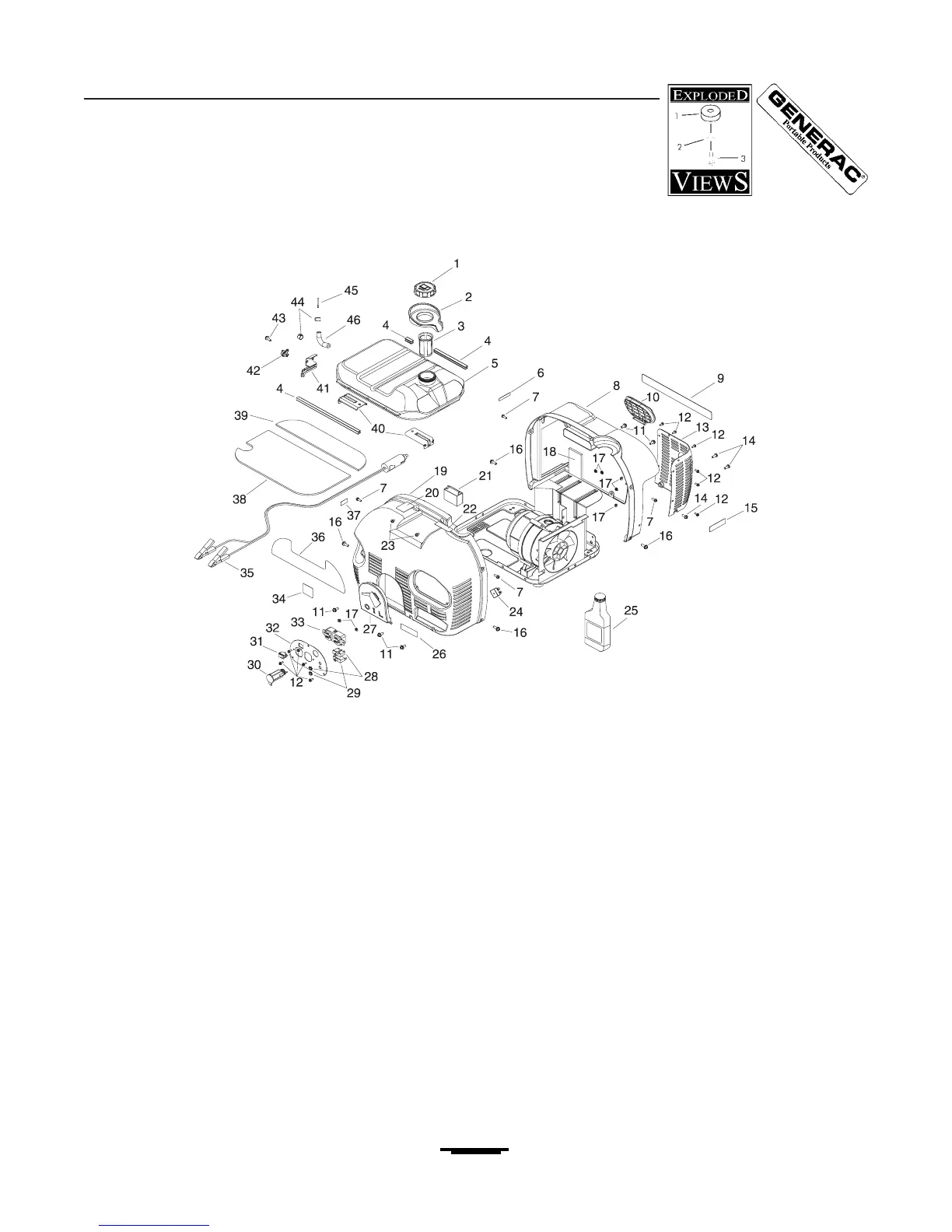

EXPLODED VIEW AND PARTS LIST – MAIN UNIT
