Generac Portable Products G1000M Generator
20

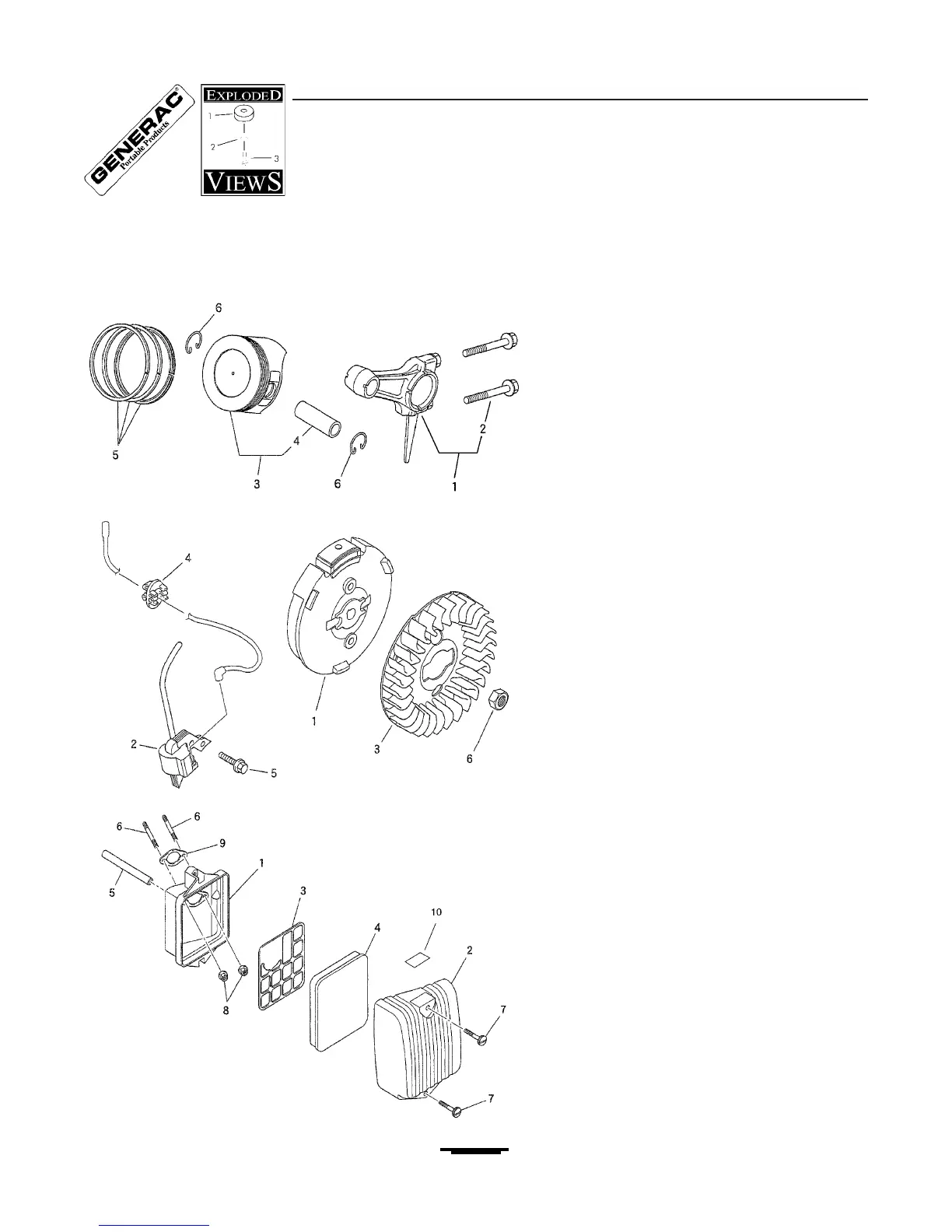

EXPLODED VIEW AND PARTS LIST – ENGINE
Piston/Rod, Magneto/Flywheel, Air Cleaner
Item Part # Qty Description
1 187526 1 ROD, CNNCTNG, STD
1 187527 1 ROD, CNNCTNG, US.25
1 187528 1 ROD, CNNCTNG, US.50
2 187529 2 BOLT, CNNCTNG ROD
3 187530 1 ASSY, PSTN, STD
3 187531 1 ASSY, PSTN, OS.25
3 187532 1 ASSY, PSTN, OS.50
4 187533 1 PIN, PISTON
5 187534 1 SET, RING, PSTN, STD
5 187535 1 SET, RING, PSTN, OS.25
5 187537 1 SET, RING, PSTN, OS.50
6 187539 2 CLIP, SPRING, PSTN PIN
Item Part # Qty Description
1 187540 1 FLYWHL
2 187541 1 COIL, IGNITION
3 187543 1 FAN
4 187544 1 CLIP, MAGNETO
5 187545 2 BOLT, MAGNETO
6 187546 1 NUT
Item Part # Qty Description
1 187492 1 HSNG, AIR CLNR
2 187494 1 CVR, AIR CLNR
3 187496 1 SPRT, AIR CLNR
4 187497 1 ELEMENT, AIR CLNR
5 187498 1 BRTHR, AIR CLNR
6 187500 2 STUD, AIR CLNR
7 187501 2 SCREW, AIR CLNR CVR
8 187503 2 NUT, AIR CLNR CVR
9 187504 1 GSKT, CARB
10 187576 1 DECAL, CHOKE
