Generac Portable Products G1000M Generator
21

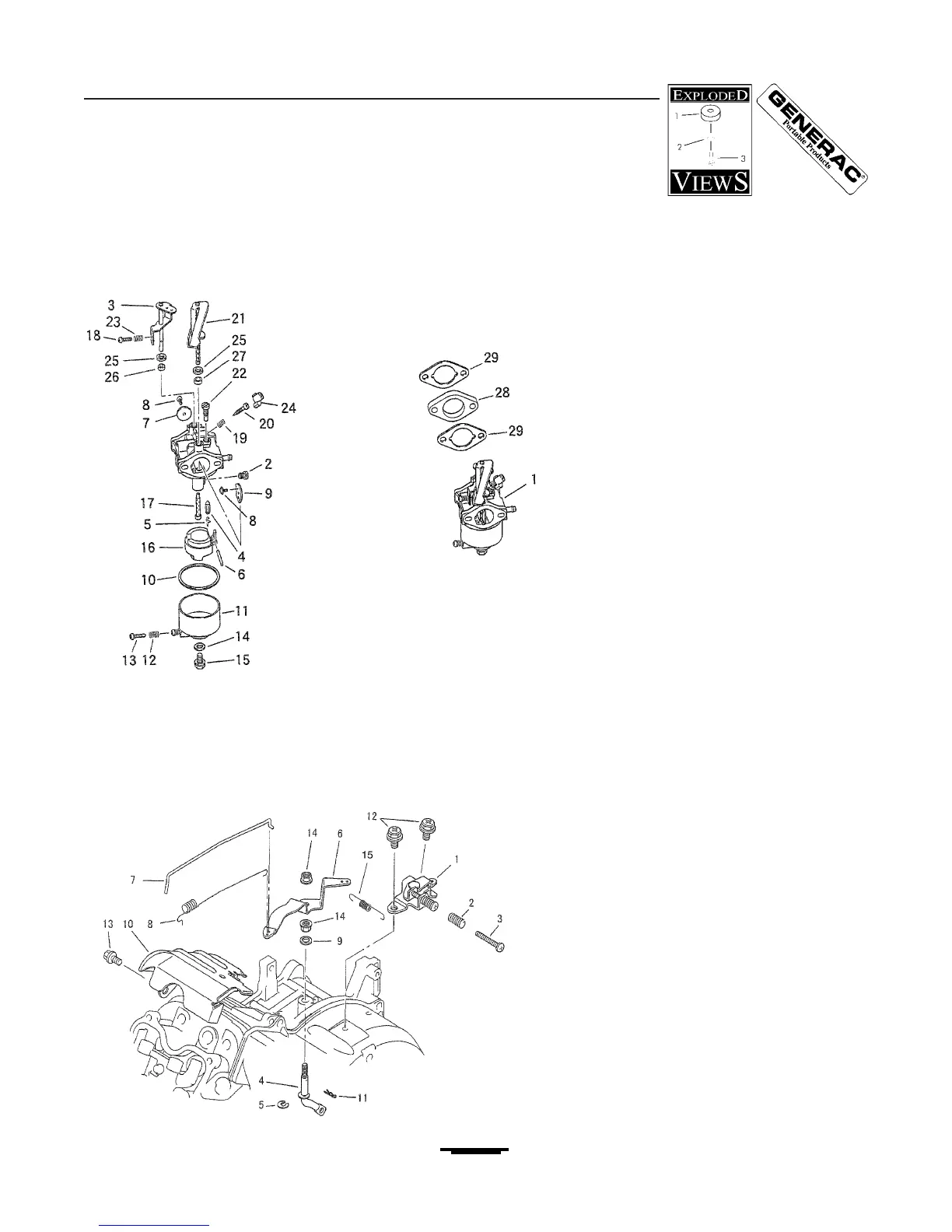

EXPLODED VIEW AND PARTS LIST – ENGINE
Carburetor, Control/Linkages
Item Part # Qty Description
1 187469 1 CARB, COMPLETE
2 187471 1 JET, MAIN
3 187476 1 SHFT, THROTTL
4 187480 1 VLV, NEEDLE
5 187482 1 CLIP, CARB
6 187483 1 PIN, CARB
7 187485 1 VLV, THRTTL
8 187491 3 HHCS, CARB
9 187493 1 VLV, CHOKE
10 187495 1 GSKT, CARB
11 187499 1 CHMBR, FLOAT
12 187502 1 SPRING, CARB
13 187509 1 HHCS, CARB
14 187511 1 GSKT, CARB
15 187525 1 BOLT, CARB
16 187536 1 FLOAT, CARB
17 187538 1 NZZL, MAIN, CARB
18 187542 1 HHCS, CARB
19 187502 1 SPRING, CARB
20 187547 1 ADJSTR, CARB
21 187548 1 LEVER, CHOKE
22 187549 1 JET, PILOT
23 187550 1 SPRING, CARB
24 187551 1 CAP, CARB
25 187552 2 PACKING, CARB
26 187553 1 SEAL, CARB
27 187554 1 SEAL, CARB
28 187556 1 INSLTR, CARB
29 187504 2 GSKT, CARB
Item Part # Qty Description
1 187505 1 BRKT, SPEED CNTRL
2 187506 1 SPRING, SPEED CNTRL
3 187507 1 SCREW, SPEED CNTRL
4 187508 1 SHFT, GOV
5 187510 1 RING, SNAP, GOV ROD
6 187512 1 LEVER, GOV
7 187513 1 ROD, GOV
8 187514 1 SPRING, GOV LEVER
9 187515 1 WSHR, GOV LEVER
10 187516 1 CVR, TOP
11 187517 1 CLIP, GOV ROD
12 187518 1 BOLT, SPEED CNTRL BKT
13 187519 1 BOLT, TOP CVR
14 187520 2 NUT, GOV LEVER
15 187570 1 SPRING, GOV
To Next Page
