Generac Portable Products G1000M Generator
22

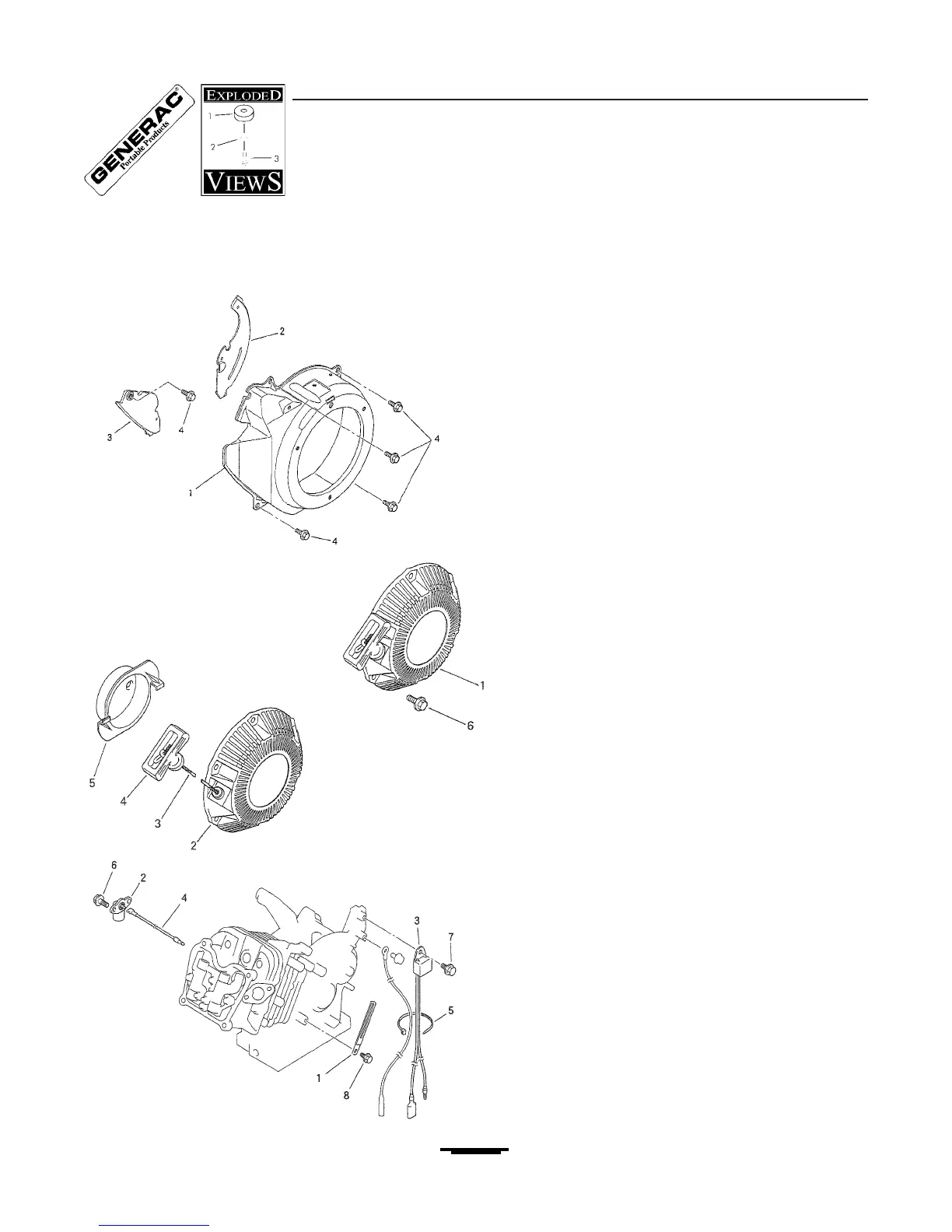

EXPLODED VIEW AND PARTS LIST – ENGINE
Fan Cover, Recoil Starter, Oil Sensor
Item Part # Qty Description
1 187521 1 CVR, FAN
2 187522 1 CVR, FAN
3 187523 1 CVR, FAN
4 187524 4 BOLT, FAN CVR
Item Part # Qty Description
1 187557 1 ASSY, RECOIL, STRTR
2 187558 1 STRTR, RECOIL
3 187559 1 ROPE, RECOIL
4 187560 1 HNDL, RECOIL
5 187561 1 PULLEY, STRTR
6 187562 3 BOLT, FLNG
Item Part # Qty Description
1 187563 1 CLAMP, OILSNSR
2 187564 1 SNSR, OIL
3 187565 1 UNIT, OILSNSR
4 187566 1 WIRE, LEAD
5 187567 1 BAND, OILSNSR
6 187470 2 BOLT, VALVE CVR
7 187524 1 BOLT, FAN CVR
8 187568 1 BOLT, FLNG
