Generac Portable Products G1000M Generator
23

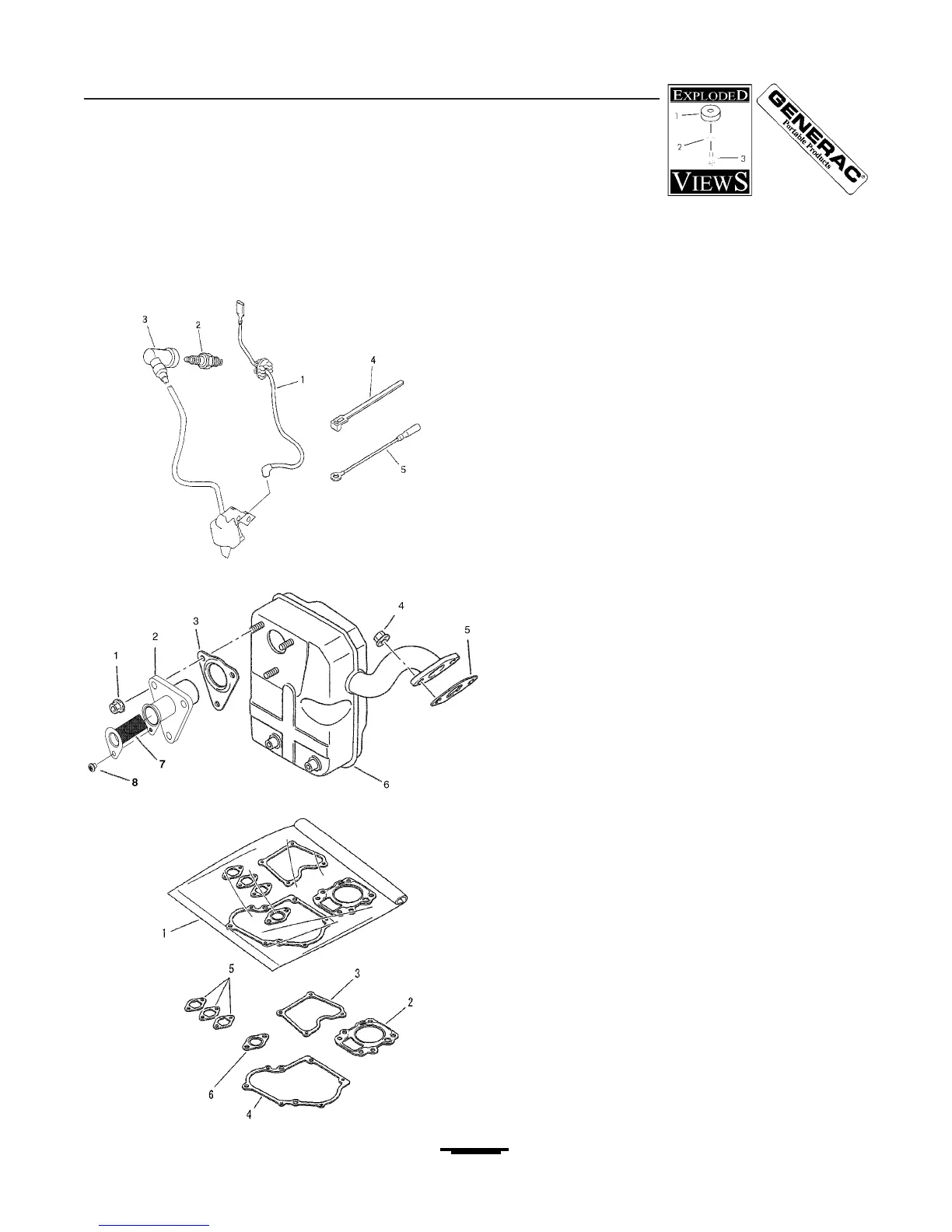

EXPLODED VIEW AND PARTS LIST – ENGINE
Lead Wires, Muffler, Gasket Set
Item Part # Qty Description
1 187571 1 WIRE, LEAD
2 187572 1 PLUG, SPARK
3 187573 1 CAP, PLUG
4 187574 1 TIEWRAP, LEAD WIRE
5 187575 1 WIRE, LEAD
Item Part # Qty Description
1 187449 3 NUT, FLNG
2 188261 1 PIPE, TAIL
3 187446 1 GSKT, MFFLR
4 187455 2 NUT, CONICAL
5 187451 1 GSKT, MFFLR
6 187444 1 MFFLR
7 188263 1 SCREEN, SPARK
8 188262 1 SCREW
Item Part # Qty Description
1 187461 1 SET, GSKT (Includes items 2-6)
2 187429 1 GSKT, HEAD
3 187472 1 GSKT, VALVE CVR
4 187479 1 GSKT, CRANKCASE CVR
5 187504 3 GSKT, CARB
6 187451 1 GSKT, MFFLR
