MAJOR DISASSEMBLY
DISCUSSION.
Each generator will have its own unique method of disassembly. Provided is a simplified version of disassembly
that does not go into step by step instructions. The figure below represents the basic disassembly and sequence
of steps needed to remove the fuel tank, stator, rotor, and the engine. All of the GP series generators have these
major components and the order of disassembly would not change.
An exploded view of each GP Series generator model is provided on the following pages.
PART 4
DISASSEMBLY
SECTION 4.1
MAJOR DISASSEMBLY
Page 54

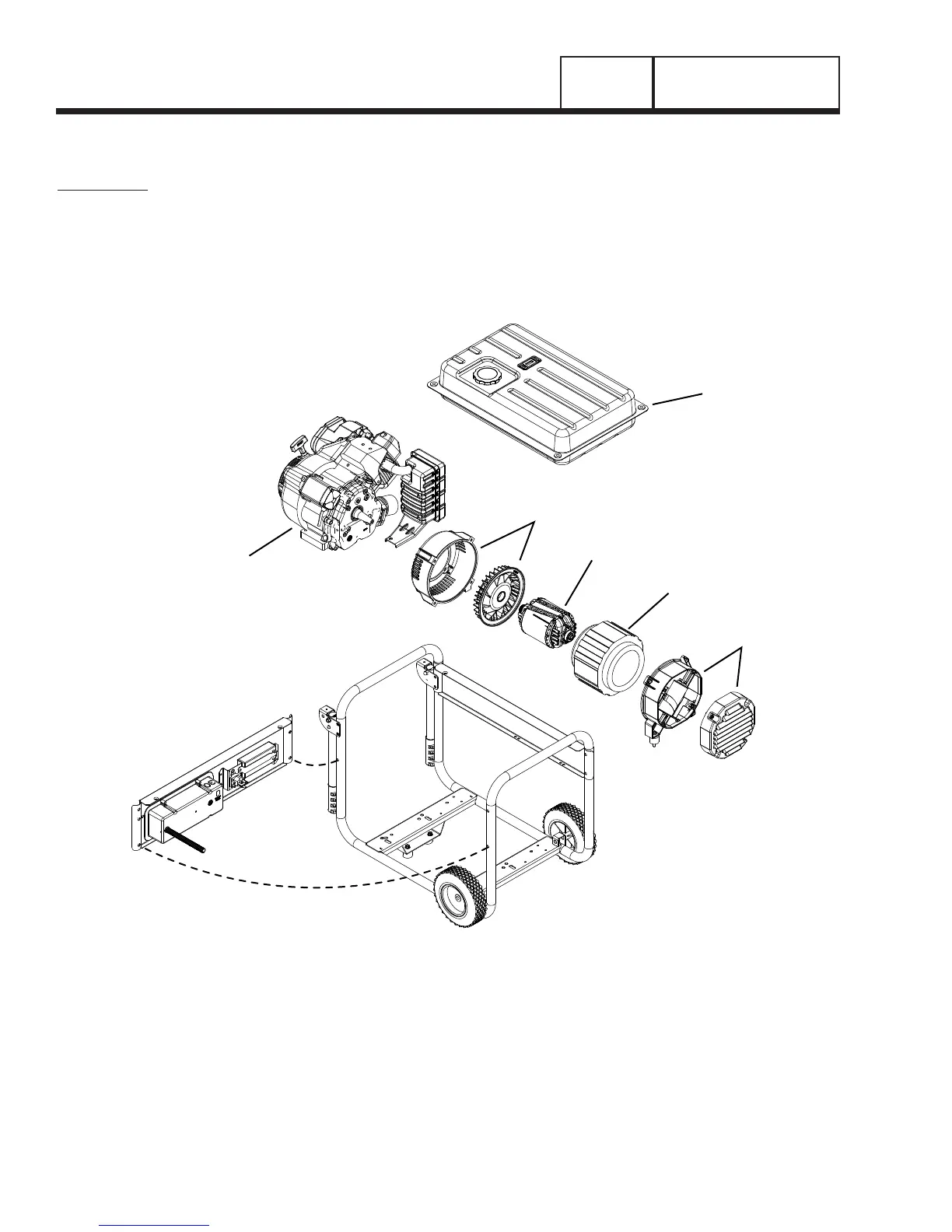

Figure 1. Basic Disassembly Steps
To Next Page
