Owner’s Manual for Portable Generator 5
2.1 — Unpacking
• Remove all packaging material.
• Remove separate accessory kit box.
• Remove generator from carton.
2.1.1— Accessory Kits
Check contents against the list in Table 2-1. If any parts
are missing or damaged, or if any problems occur during
assembly, call the Generator Helpline at 1-888-436-3722.
Table 2-1. Contents
2.2 — Assembly
The generator requires some assembly prior to usage. If
problems arise when assembling the generator, call 1-
888--436-3722.
2.2.1 — Required Tools
• Wrenches: 13 mm (2 ea), 8 mm (2)
• Needle nosed pliers
2.2.2 — Installing Wheels
NOTE: The wheels are not intended for over-the-road
use.
1. Install the Wheels as follows (Figure 2-1):
— Slide the Axle Pin (D) through the Wheel (C),
Wheel Bracket on the frame and a 5/8" Flat
Washer (B).
— Insert the Cotter Pin (A) through the Axle Pin (D).
Use the needle nosed pliers to bend open to lock
in place.

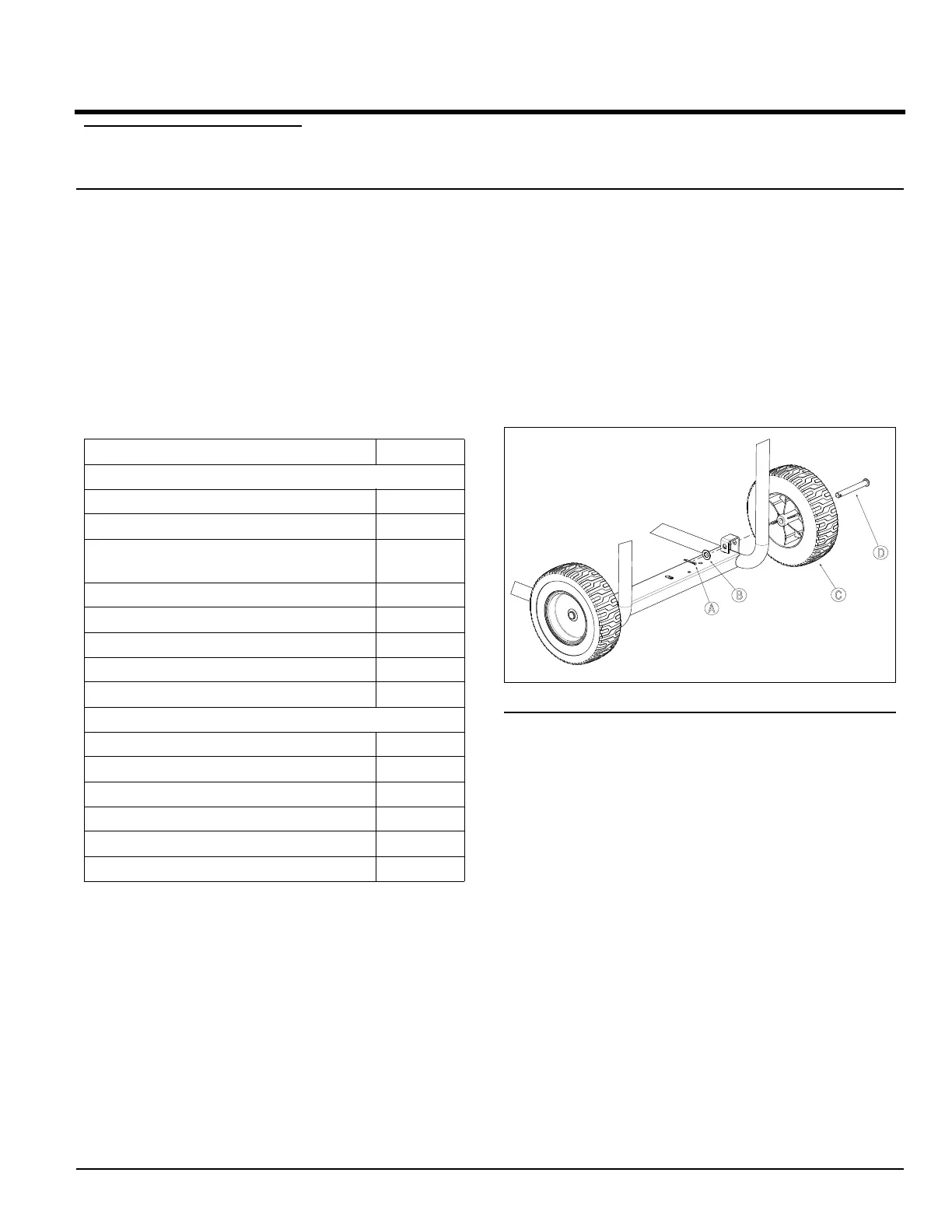

Figure 2-1. Wheel Assembly
2.2.3 — Installing Frame Feet
1. Install the Frame Foot Assemblies as shown (Figure
2-2).
— Slide the M8 Hex Bolts (F) through the holes in the
Frame Rail.
— Slide the Frame Foot (L) onto the Hex Head Bolts
(F). Then install the Locking Flange Nuts (H).
Tighten securely using a 12 mm and 13 mm
wrench.
2. Repeat the Step 1 to install the other Frame Foot
Assembly.
Parts Description Quantity
General
Generator 1
Owner’s Manual 1
Product Registration Card
(English, Spanish, and French)
1
Warranty and Emission Sheets 1
Bottle of SAE 30 Oil 1
Frame Foot (L) 2
Handle Assembly 1
Battery Charger 1
Hardware Bag
Cotter Pin (A) 2
1/2” Flat Washer (B) 2
9-1/2” Wheel (C) 2
Axle Pin (D) 2
M8 Hex Bolt (F) 5
M8 Hex Flange Nut (H) 5
Section 2 General Information
To Next Page
