Generac Power Systems Power Washer User Manual

6
Set-up
UNPACKING
1. Remove the parts bag, accessories, and inserts included with
power washer.
2. Open carton completely by cutting each corner from top to
bottom.
3. Ensure you have all included items prior to assembly.
• Main Unit
• High Pressure Hose
• Siphon Hose & Filter
• Spray Gun
• Lance with Quick Connect Fitting
• Oil Bottle
• Parts Bag (which includes the following):
– Hose Hook Wireform with Screws and Allen Wrench
– Operator’s Manual
– Owner’s Registration Card
– Bag containing Color-coded Nozzles
– Filter Screen
4. If you are missing any items from your carton, please call
Generac Customer Service at 1-888-436-3722. When calling
for assistance, please have the model and serial number from
the data tag available.
5. Fill out and send in registration card. Write Model number,
Serial number & date of purchase in the table located in the
"Where to Find Us" section.
ASSEMBLY
Read the entire operator’s manual before you attempt to assemble,
or if you have any problems with the assembly of your power
washer, please call Generac Customer Service at 1-888-436-
3722. When calling for assistance, please have the model and
serial number from the data tag available.
1. The handle may be folded down or locked into position using
the integrated pull pin.

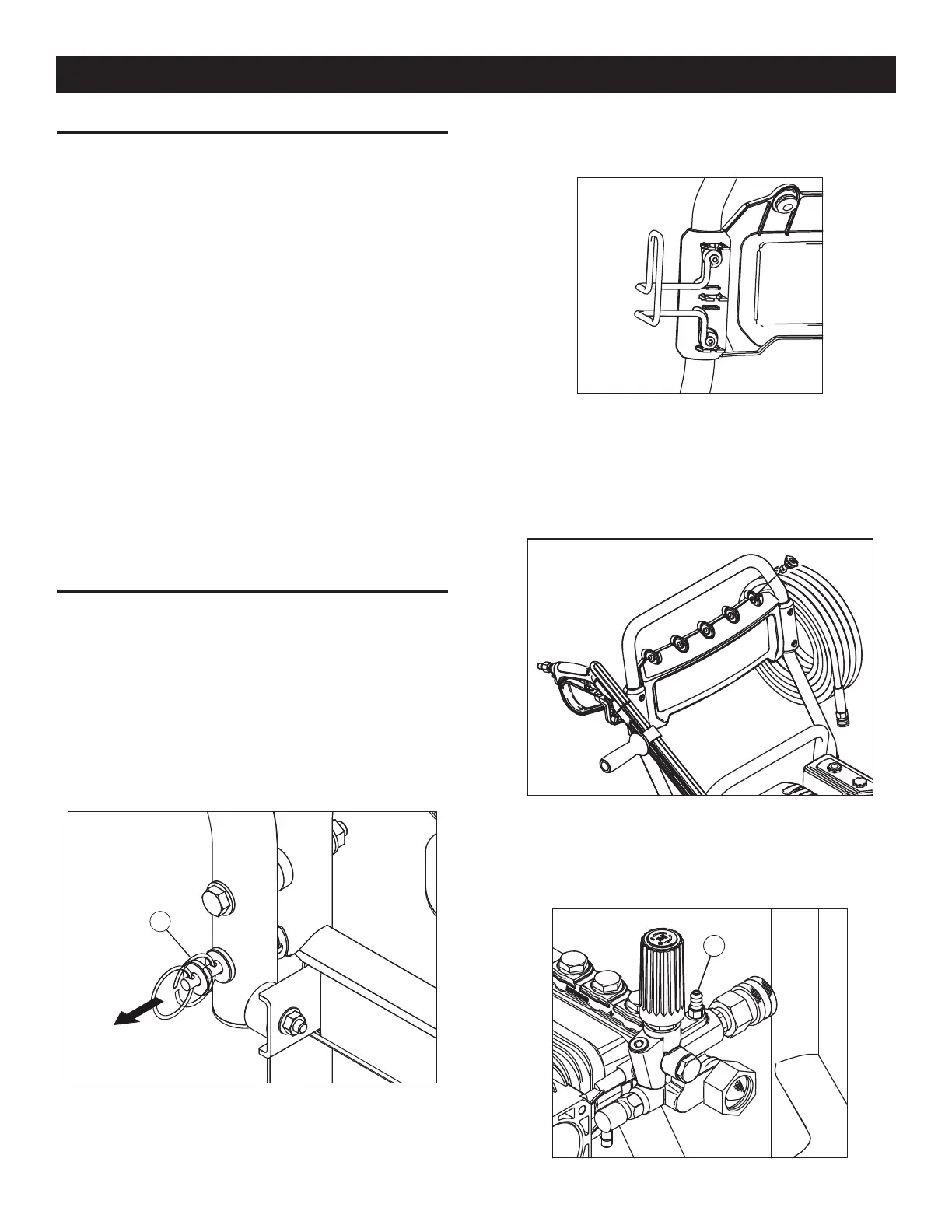

Figure 2 – Attach Handle
A
2. Install hose hook using provided screws and allen wrench
(Figure 3).
Figure 3 – Install Hose Hook
3. Insert color-coded nozzles in spaces provided in handle
(Figure 4).
4. Place spray gun and nozzle extension into spray gun holder as
shown (Figure 4).
Figure 4 – Insert Nozzles
5. Coil high pressure hose and hang on hook.
6. Attach siphon tube to location A (Figure 5).
Figure 5 – Siphon Tube Location
A
