HOLE DIGGING: MAINTENANCE
If you have any questions or comments, please feel free to contact us.
Telephone: 800.533.0524 | Email: support@generalequip.com

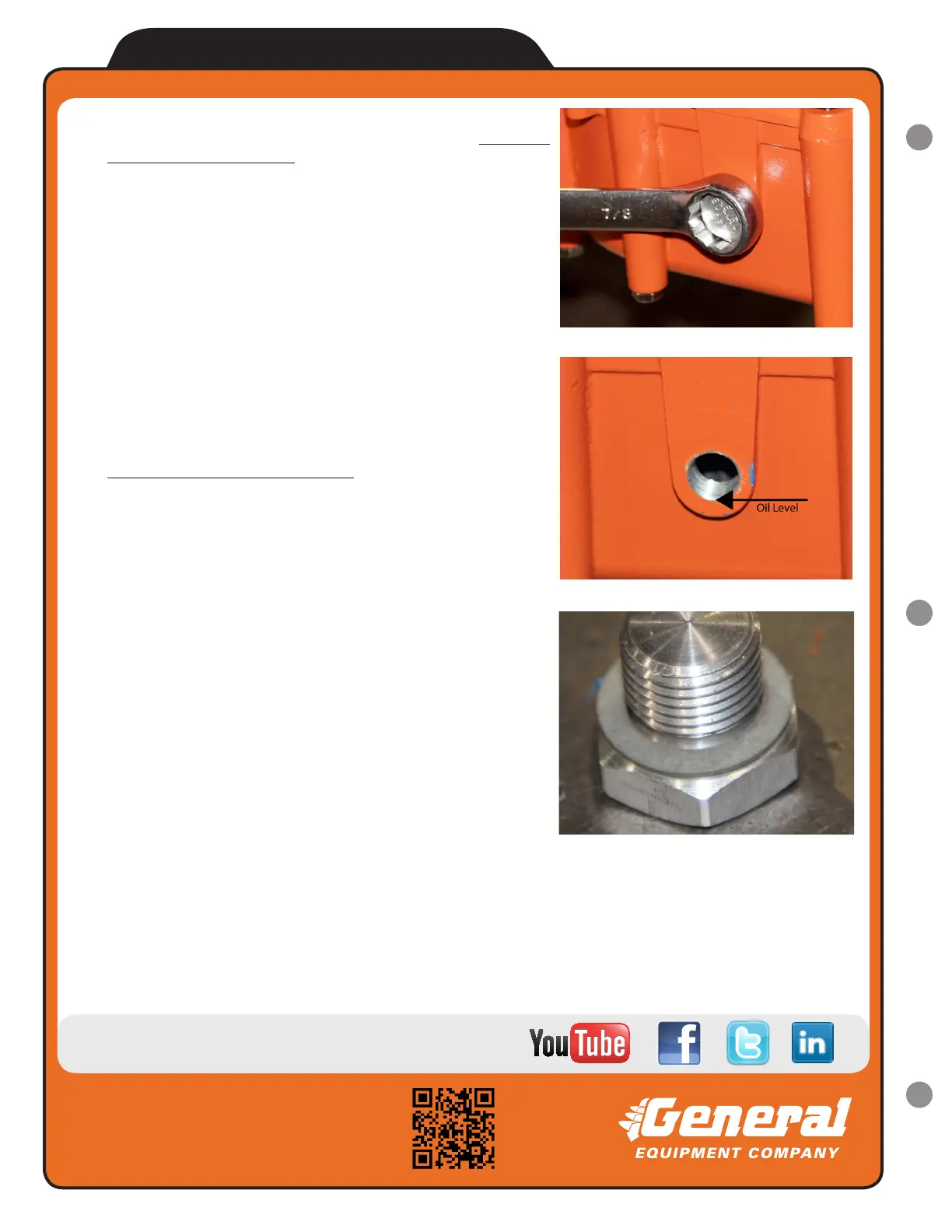

5. The transmission oil level is to be maintained at the bottom of
the oil ller/level plug hole. FIGURE 3.
6. If the oil level is not visable, add oil up to bottom of the hole.
DO NOT OVERFILL.
7. Allow excess oil to drain out of the transmission if overlled.
8. Inspect the oil ll plug gasket for proper security. If
necessary, replace the gasket with a factory approved
replacement part only. FIGURE 4.
9. Reinstall the oil ller/level plug. Tighten securely with a
suitable wrench. FIGURE 2.
10. Wipe off any excess spilled oil.
Properly dispose of any spilled oil.
Transmission Oil Capacity: 1 US quart (.94 l)
Transmission Oil Type: SAE 10W30, SAE 30
Detergent, conforming to API Classication SJ or later
Consult the Operator Manual for additional information.
To download the Operator Manual, type or copy and
paste the URL: http://www.generalequip.com/prod_
library/267-item.pdf into a browser.
CAUTION!
Correct oil level is important to insure proper
centrifugal clutch operation. Excessive oil level will
cause excessive clutch slippage. Low oil level will cause improper lubrication.
Both conditions will cause high operating temperatures that will reduce service life
and affect digging performance. Service related problems as a result of improper
transmission lubrication are not covered by the product warranty program.
FIGURE 4.
FIGURE 3.
FIGURE 2.
April 2013 • ISSUE 16P
