12

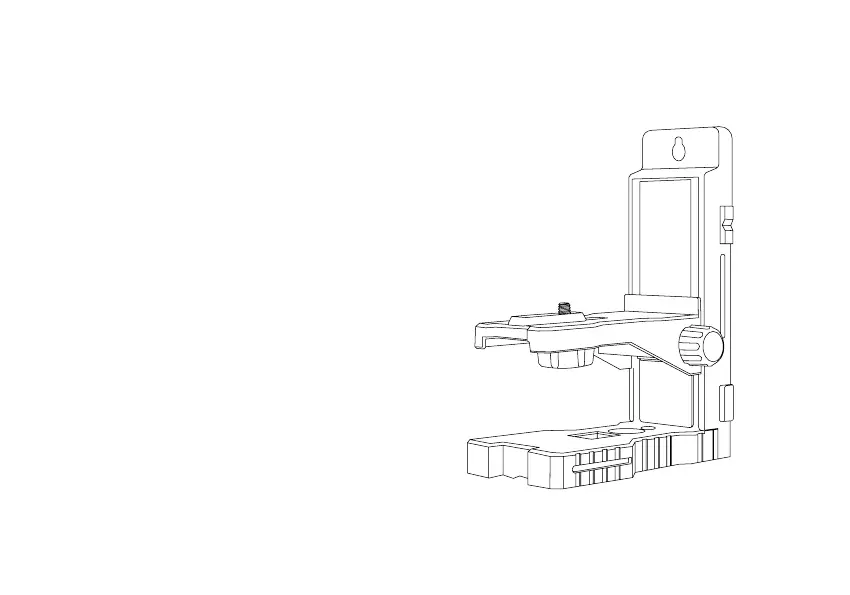

USING THE MULTI-PURPOSE MOUNT
Mounting onto a magnetic surface
▪ Attach the instrument to the mount
using the thumb screw.
▪ Attach the mount to a metal surface,
ensuring that the mount has a strong hold
before releasing your hands.
▪ To adjust the height of the instrument,
unlock the height adjustment knob.
Rotate the height adjustment knob to
raise or lower the instrument to the
desired height. Retighten the height
adjustment lock knob to secure in place.
▪ To rotate the instrument on the mount,
loosen the mini thumb screw, position
the instrument, and then re-tighten the
thumb screw.
