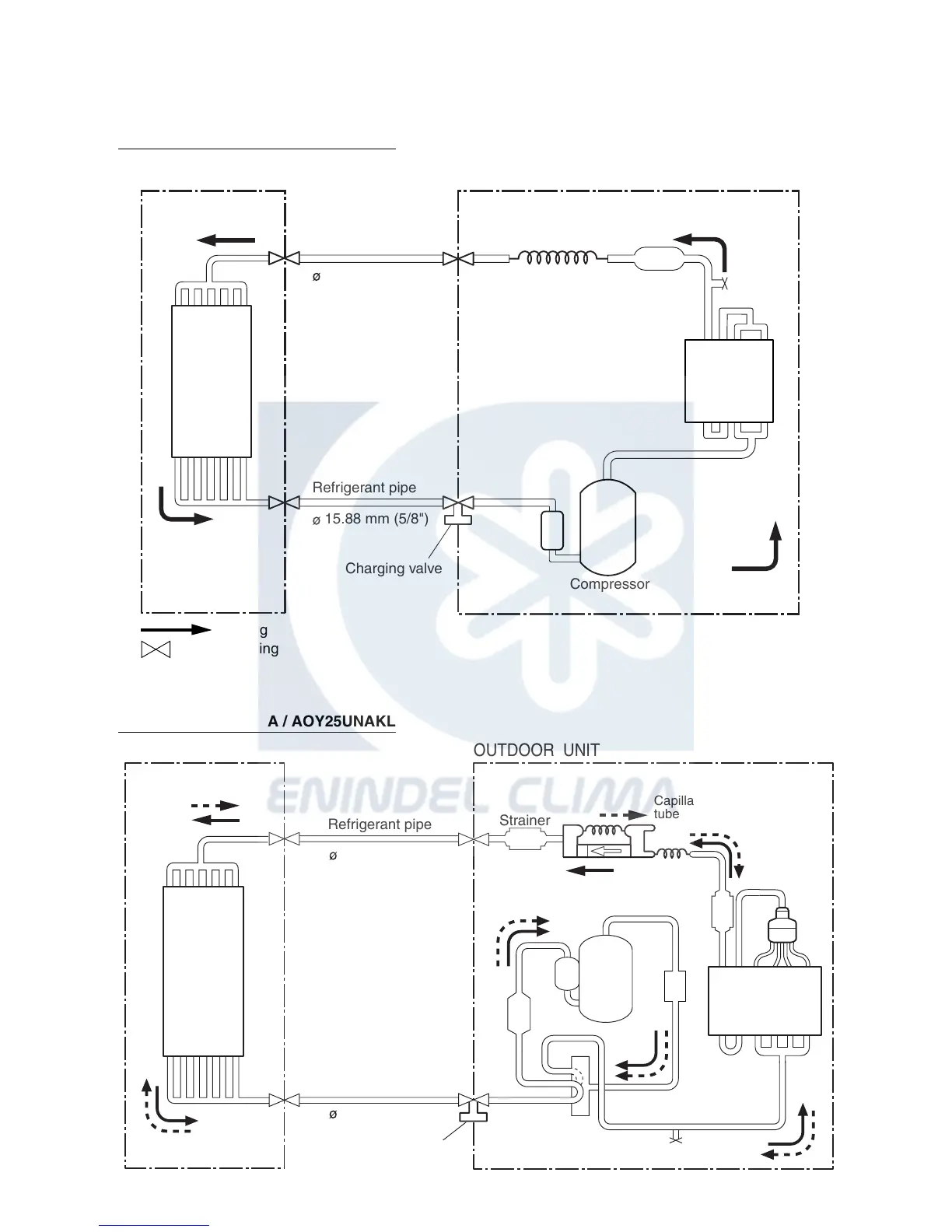

REFRIGERANT SYSTEM DIAGRAM
Cooling
: Flare coupling
Models : ARG25FUAA / AOG25FNAKL
Models : ARY25UUAA / AOY25UNAKL
Strainer
Refrigerant pipe
15.88 mm (5/8")
Refrigerant pipe
9.52 mm (3/8")
Capillary tube
Charging valve
Compressor
OUTDOOR UNITINDOOR UNIT
Evaporator
Condenser
Evaporator
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
INDOOR UNIT
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
Distributor
Muffler
Accumulator
2004.08.02 7
www.enindel.com
