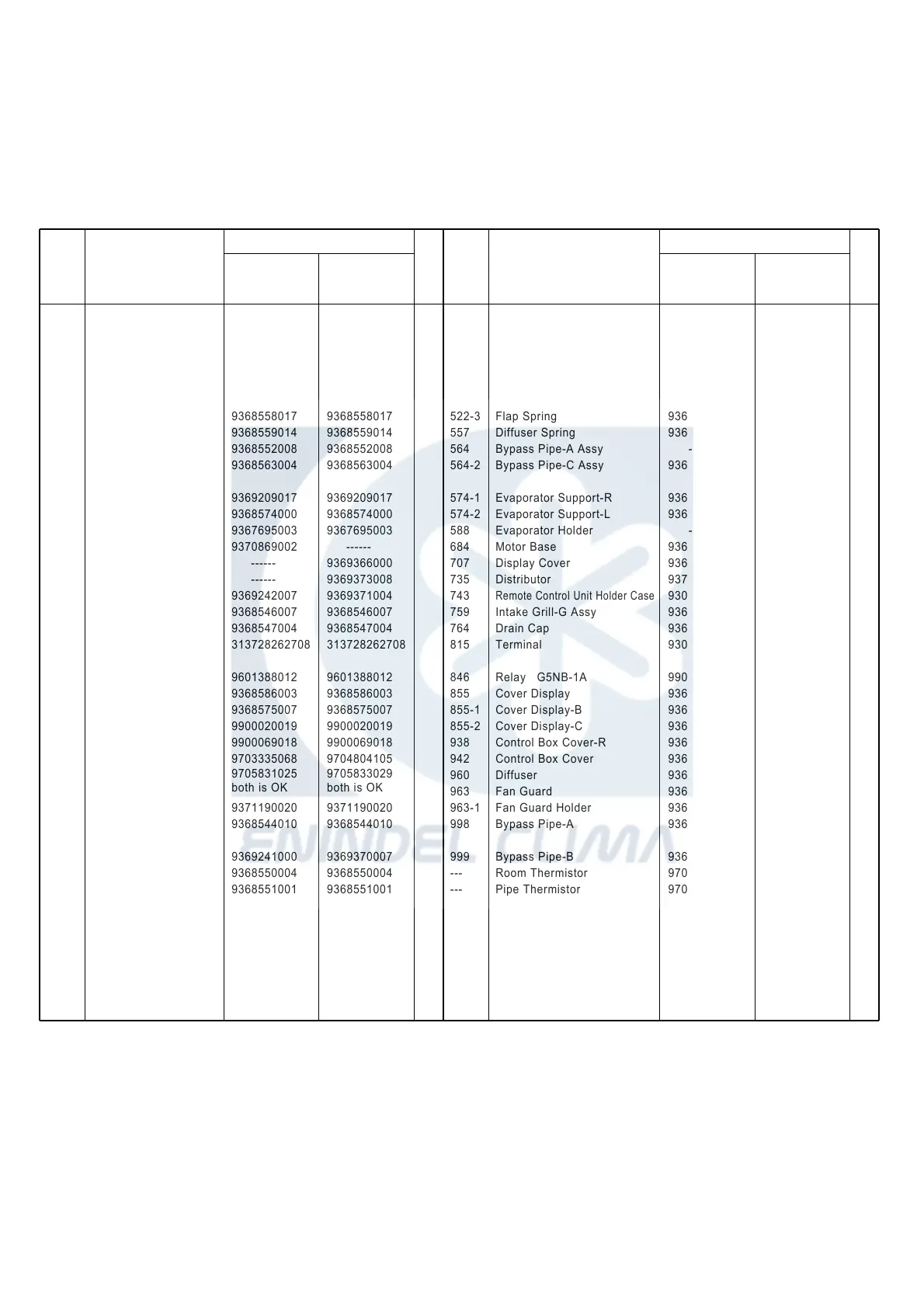

PARTS LIST
34 Capacitor (Fan Motor) 9704305060 9704305060
40 Water Seal Plate 9369684005 9369684005
45 Bracket (Eva. ) 9369372001 9369372001
61 Decoration Plate-G Assy 9368756017 9368756017
63
Front Panel 9368540012 9368540012
69 Louver 9368560010 9368560010
69-1
Louver Base-A 9368558017 9368558017
69-2
Louver Base-B 9368559014 9368559014
74
Air Filter 9368552008 9368552008
92 Link Holder 9368563004 9368563004
108 Base Assy 9369209017 9369209017
122 Bearing Assy 9368574000 9368574000
127 Drain Hose 9367695003 9367695003
146 Evaporator-A Assy 9370869002
------
146-1 Evaporator-A Assy ------
9369366000
146-2 Evaporator-B Assy ------
9369373008
158 Joint Pipe Assy 9369242007 9369371004
160 Front Drain Pan 9368546007 9368546007
160-1 Rear Drain Pan 9368547004 9368547004
163-2 Thermistor Spring-A 313728262708 313728262708
164 Fan Motor Assy-IN 9601388012 9601388012
169 Cross Flow Fan Assy 9368586003 9368586003
178-1 Rubber (Motor) 9368575007 9368575007
199 Step Motor 9900020019 9900020019
233 Power Transformer 9900069018 9900069018
236 Controller PCB Assy 9703335068
9705831025
both is OK
9704804105
9705833029
both is OK
240 Remote Control Unit 9371190020 9371190020
321 Flap 9368544010 9368544010
---
Room Thermistor
9703299179 9703299179
--- Pipe Thermistor 9703297076 9703297076
329 Coupling Pipe Assy 9369241000 9369370007
338 Motor Holder-A 9368550004 9368550004
338-1 Motor Holder-B 9368551001 9368551001
338-2 Motor Holder-C 9368769000 9368769000
385 Indicator PCB Assy 9702307011 9702307011
401 Wall Hook Bracket 9368579005 9368579005
408 Louver Link 9368562007 9368562007
425 Earth Plate 9368580001 9368580001
428 Screw Cover 9368576011 9368576011
435 Louver Spring 9368613006 9368613006
574-1 Evaporator Support-R 9368549008 9368549008
574-2 Evaporator Support-L 9368548001
9368548001
588 Evaporator Holder ------ 9368775001
684
Motor Base 9368555009 9368555009
707
Display Cover 9368564001
9368564001
735
Distributor 9371178004
9371325019
743
Remote Control Unit Holder Case
9305642014 9305642014
759 Intake Grill-G Assy 9368542016 9368542016
764 Drain Cap 9367677009 9367677009
815 Terminal 9306489106 9306489106
846 Relay G5NB-1A 9900007010 9900007010
855 Cover Display 9369264016 9369264016
855-1 Cover Display-B 9369594014 9369594014
855-2 Cover Display-C 9369683015 9369683015
938 Control Box Cover-R 9368570002 9368570002
942 Control Box Cover 9368611002 9368611002
960 Diffuser 9369346019 9369346019
963 Fan Guard 9368588007 9368588007
963-1 Fan Guard Holder 9368554002 9368554002
998 Bypass Pipe-A 9369238000 ------
999 Bypass Pipe-B 9369239007 9369368004
2005.03.09 32
473 Pipe Holder 9368565008 9368565008
473-1 Cord Holder 9368566005 9368566005
506 Louver Rod
9368561017 9368561017
514 Control Box 9368543006 9368543006
522-1 Sector Gear
9368556006 9368556006
522-2 Pinion Gear
9368557003 9368557003
522-3 Flap Spring 9368612009 9368612009
557 Diffuser Spring
9368587000 9368587000
564 Bypass Pipe-A Assy ------ 9369551000
564-2 Bypass Pipe-C Assy 9369479007 ------
INDOOR UNIT
Ref.
No.
Description
ASG18FBAJ
ASG18FBBJ
ASG18FBBN
Ord.
Q'ty
Part No.
ASG24FBBJ
ASG24FBBN
Ref.
No.
Description
ASG18FBAJ
ASG18FBBJ
ASG18FBBN
Ord.
Q'ty
Part No.
ASG24FBBJ
ASG24FBBN
When you order parts, please make a photocopy of this page
and fill the number of the parts in the Order column.
