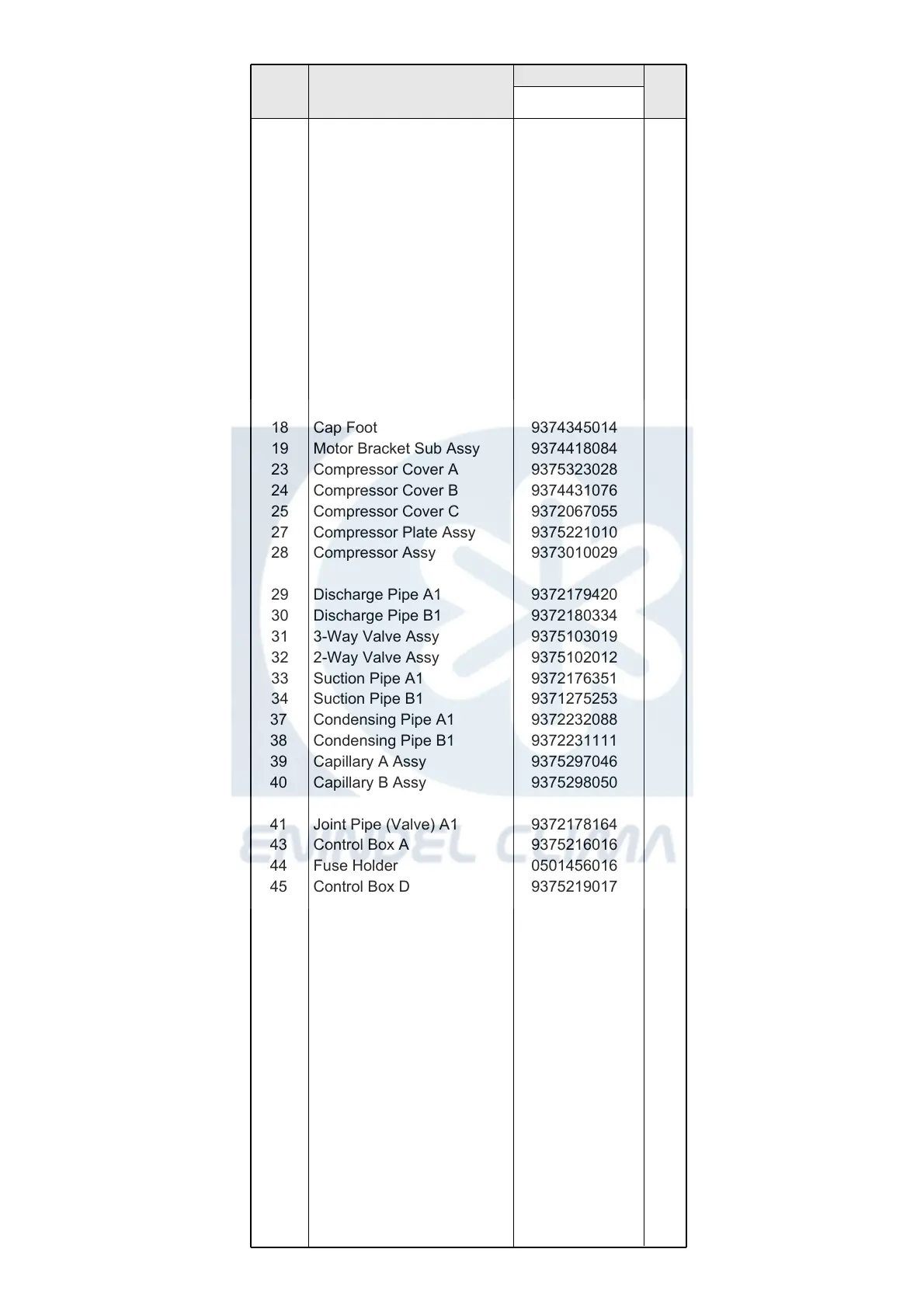

OUTDOOR UNIT
Ref.
No.
Description
Ord.
Q'ty
Part No.
AOH19FSCV2
162006.03.13
1 Top Panel Sub Assy 9374417018
2 Front Panel S 9374094080
3 Fan Guard 9374330010
4 Grip Side 9374173013
5 Service Panel Sub Assy 9374415045
6 Right Panmel 9374599042
9 Grip 9374172016
10 Print Net S 9374255047
11 Propeller Fan Assy 9366378013
12 Motor, Induction 9601671060
13 Condenser A Assy 9374433100
14 Separate Wall S 9374135042
15 Base Assy 9374166121
18 Cap Foot 9374345014
19 Motor Bracket Sub Assy 9374418084
23 Compressor Cover A 9375323028
24 Compressor Cover B 9374431076
25 Compressor Cover C 9372067055
27 Compressor Plate Assy 9375221010
28 Compressor Assy 9373010029
29 Discharge Pipe A1 9372179420
30 Discharge Pipe B1 9372180334
61
OCR Assy
9311143000
62
Special Nut
9355091008
63
Rubber Seat (Comp) A
9351507015
---
Emblem Rear
9372171011
41 Joint Pipe (Valve) A1
9372178164
43
46
Fuse
Control Box A
0600376086
9375216016
47
Band (Capacitor)
9352123009
44
Fuse Holder
0501456016
45
Control Box D
9375219017
48
Capacitor, Plastic (Comp.)
9900269043
49
Capcitor, Plastic (Fan)
9900270049
50
Relay
9900239015
51
Terminal
9900203047
52 Clamp (Cord) C
9359677000
53
Clamp (Cord)
9356857009
58
Special Nut M5
313199233602
59
Terminal Cover (Comp.)
9302419008
60
Terminal Gasket (Comp.)
9351505011
37 Condensing Pipe A1 9372232088
38
Condensing Pipe B1
9372231111
39
Capillary A Assy
9375297046
40 Capillary B Assy
9375298050
FOLS checked 2006/1/23
31 3-Way Valve Assy 9375103019
32 2-Way Valve Assy 9375102012
33 Suction Pipe A1 9372176351
34 Suction Pipe B1 9371275253
To Next Page
