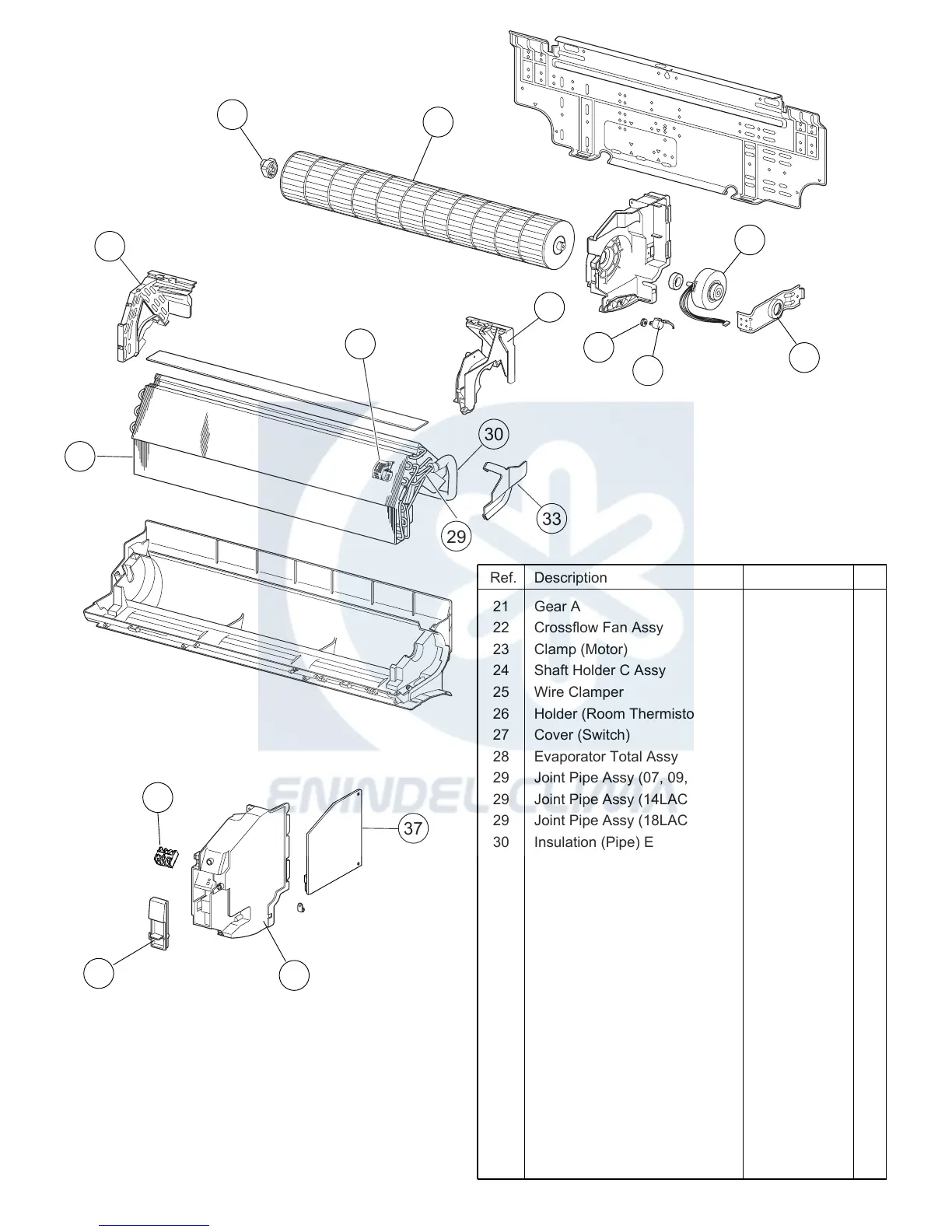

INDOOR UNIT
18
2007.04.23
--- Indicator PCB Assy 9705039032
--- Evaporator B (18LACM only) 9311275022
22 Crossflow Fan Assy 9307836015
30 Insulation (Pipe) E 9304607007
31 Holder (Evaporator) L 9309982017
32 Holder (Evaporator) R 9309983014
33 Water Seal 9312912018
34 Terminal 9701955114
35 Step Motor 9900139025
36 Fan Motor Assy 9602109012
37 Controller PCB Assy (07LACM) 9707404067
37 Controller PCB Assy (09LACM) 9707404074
37 Controller PCB Assy (12LACM) 9707404081
37 Controller PCB Assy (14LACM) 9707404043
37 Controller PCB Assy (18LACM) 9707404050
--- Pipe Thermistor 9702039042
--- Room Thermistor 9700801108
21 Gear A 9309994003
23 Clamp (Motor) 9310102008
24 Shaft Holder C Assy 9306628017
25 Wire Clamper 9313944018
27 Cover (Switch) 9313943011
28 Evaporator Total Assy 9313099039
29 Joint Pipe Assy (07, 09, 12) 9313104016
29 Joint Pipe Assy (14LACM) 9313104030
29 Joint Pipe Assy (18LACM) 9313792015
Ref. Description Part number
26 Holder (Room Thermistor) 9311948018
