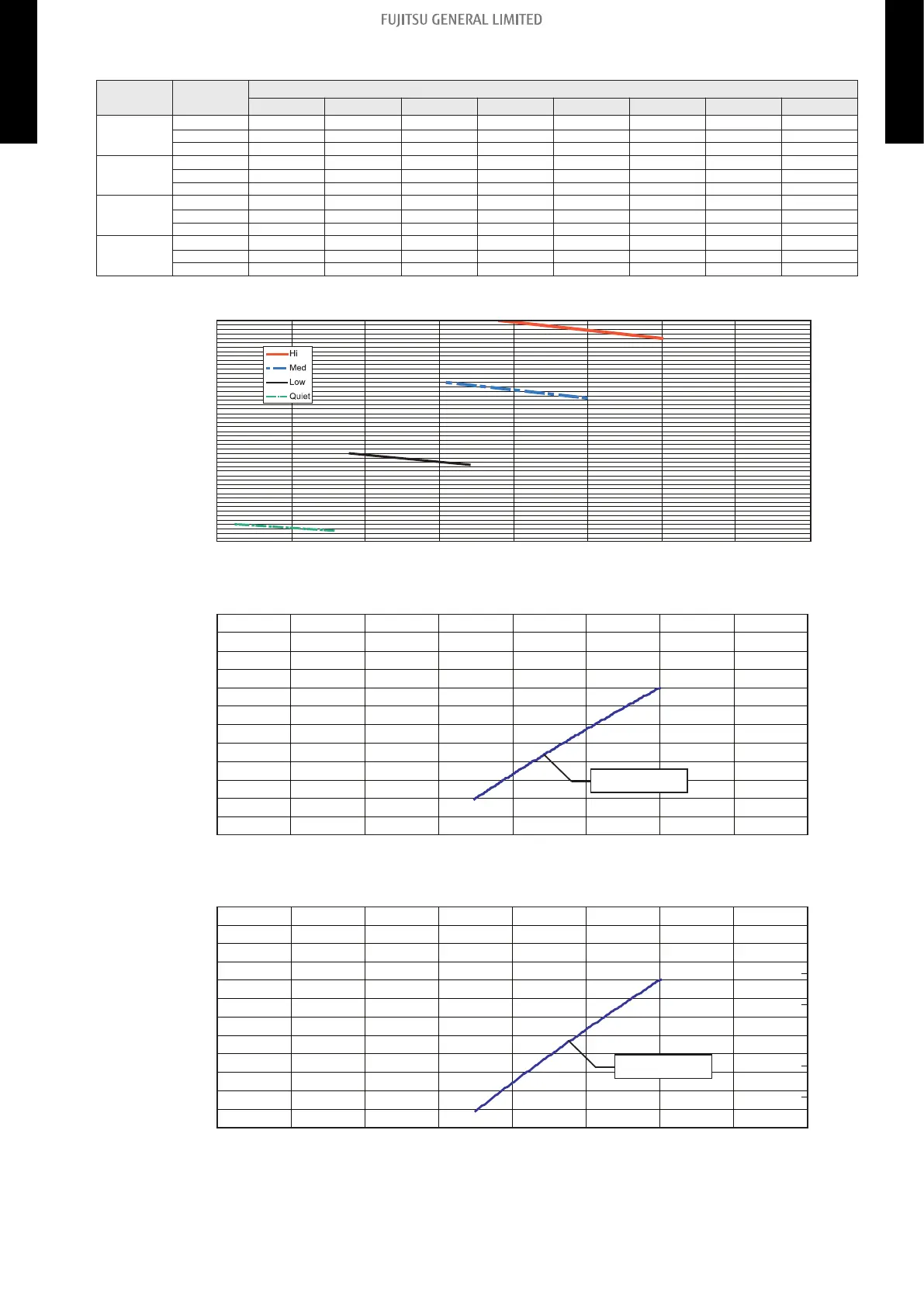

Model: ARXG22KMLB (Static pressure mode 3)
Fan speed Item
Static pressure (Pa)
55 58 85 90 115 122 142 150
HIGH
m
3
/h
— — — — — — 1100 880
l/s — — — — — — 306 244
CFM — — — — — — 647 518
MED
m
3
/h
— — — — 1000 810 — —
l/s — — — — 278 225 — —
CFM — — — — 589 477 — —
LOW
m
3
/h
— — 840 680 — — — —
l/s — — 233 189 — — — —
CFM — — 494 400 — — — —
QUIET
m
3
/h
660 525 — — — — — —
l/s 183 146 — — — — — —
CFM 388 309 — — — — — —
Q-h Characteristic curve
STATIC PRESSURE(Pa)
150
140
130
120
110
100
90
80
70
60
50
500 600 700 800 900 1,000 1,100 1,200 1,300
Airflow (m
3
/h)
COOLING
Cooling capacity(%)
104.0
102.0
100.0
98.0
96.0
94.0
92.0
500 600 700 800 900 1,000 1,100 1,200 1,300
Airflow (m
3
/h)
Capacity
HEATING
Heating capacity(%)
104.0
102.0
100.0
98.0
96.0
94.0
92.0
500 600 700 800 900 1,000 1,100 1,200 1,300
Airflow (m
3
/h)
Capacity
- 110 -
6-3. Medium static pressure duct type
6. Fan performance
4-5 UNIT
MULTI-SPLIT TYPE
4-5 UNIT
MULTI-SPLIT TYPE
