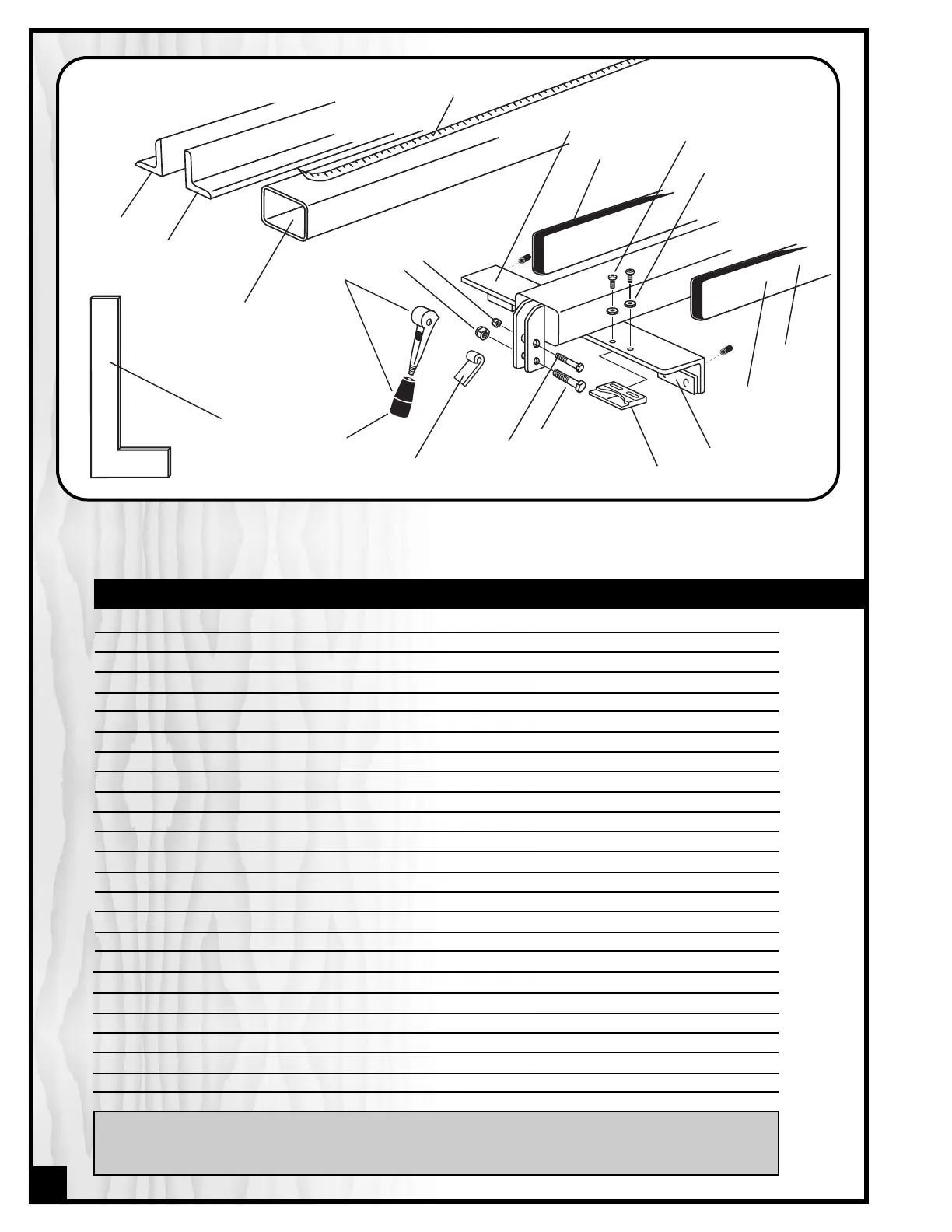

PARTS LIST
GENERAL T-FENCE
PART N0. DESCRIPTION SPECIFICATION QTY
F-42SA FENCE BODY 1
B-006SA CAM AND HANDLE ASS’Y 1
B-007 CAMFOOT 1
B-008 SIDE PANEL FOR 42” GUIDE 2
B-012 ARBORITE GUIDE COVERS FOR F-42 2
P-267 BLACK “T” MOLDINGS 1/8” x 1/2” x 96” 2
P-489 FLAT WASHERS 3/16” SAE 2
P-369 SELF TAPPING SCREWS
- NOT SHOWN
10 - 16 3/4” HEX. HD 5/16” 12
P-635 ROUND HD SLOT MACH. SCREW 10 - 32 x 3/8” 2
P-639 HEX. HD CAP SCREW 1/4” - 20 x 1 3/4” 1
P-707 NUT 3/8” -16 (NYLON INSERT) 1
P-760 NUT 1/4” -20 (NYLON INSERT) 7/16” 1
P-791 FENCE ALIGNMENT SET SCREWS 3/8” - 16 X 5/16” 2
P-799 NYLON PADS 6
P-804 HAIRLINE POINTER 1
P-987 HEX. HD CAP SCREW 3/8” - 16 x 1 3/4” 1
B-014 “L” JIG FOR F-42 1
12-502 REAR RAIL FOR 50” T-FENCE 1
12-501 FRONT RAIL FOR 50” T-FENCE 1
12-503 GUIDE TUBE FOR 50” T-FENCE 1
P-21 ADHESIVE MEASURING TAPE 1
P-249 HANDLE 35C HOLE 1
B-007
P-987
P-639
P-804
P-799
B-012
B-008
P-791
P-489
P-635
P-267
F-42SA
P-707
P-760
B-006SA
B-014
12-502
12-501
12-503
P-21
P-249
F-42 - COMPLETE FENCE ASS’Y
T50 - COMPLETE 50” GUIDE RAIL SET
