PRODUCT OVERVIEW
Fig. 1 shows all of the controls, indicators and physical features of the
MMD7NP. Familiarize yourself with their names, positions and functions before
moving on to the Setup Instructions.

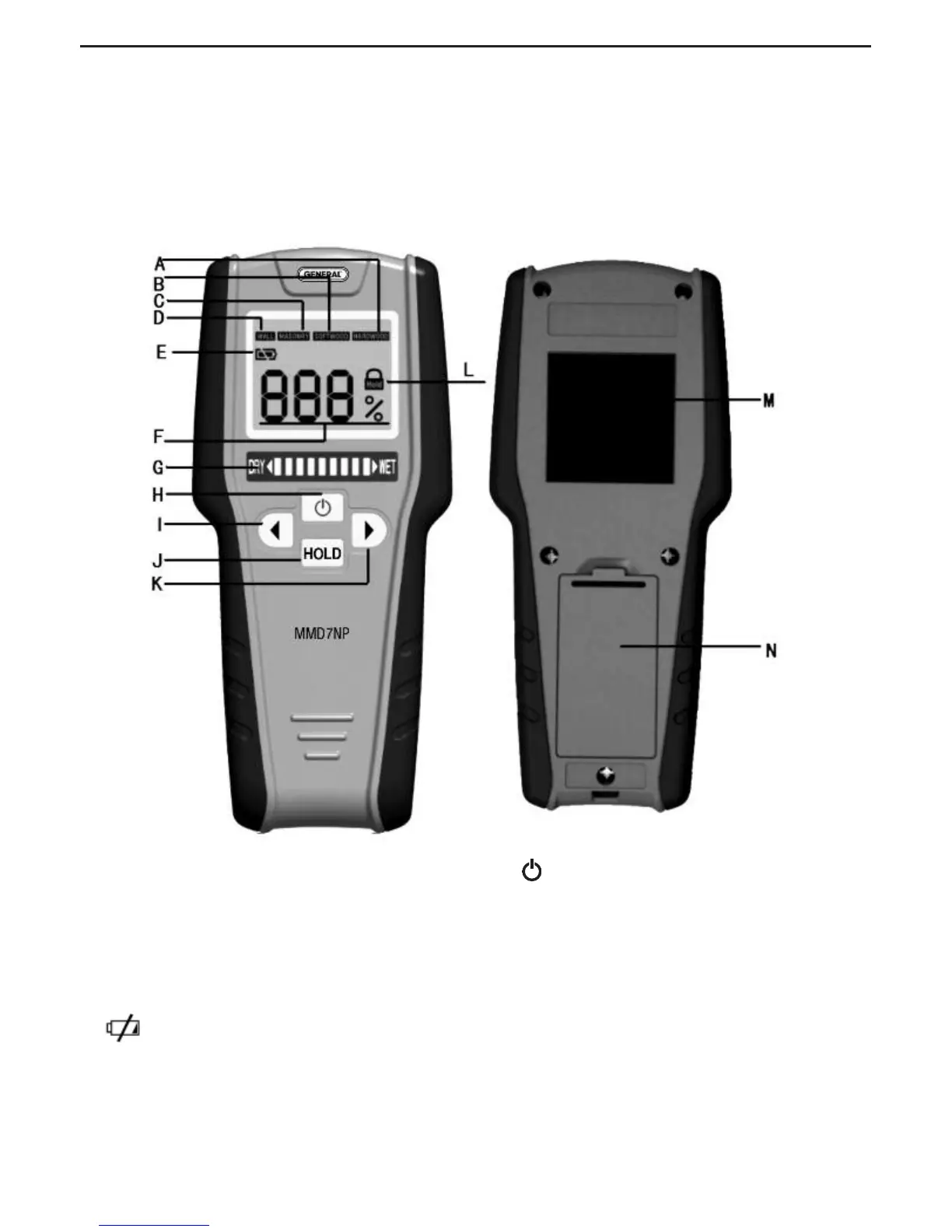

Fig. 1. The controls, indicators and physical features of the MMD7NP
5
A. HARDWOOD Mode indicator
B. SOFTWOOD Mode indicator
C. MASONRY Mode indicator
D. Drywall Mode indicator (WALL)
E. (Low battery) icon
F. Moisture level reading, in the unit of
% Wood Moisture Equivalent (WME)
G. Tricolor LED bar graph
H. button: Powers meter on and off
I. button: Press to select mode at
left of current mode
J. HOLD button
K. button: Press to select mode at
right of current mode
L. Held reading indicator
M. Inductive sensing area
N. Battery compartment
