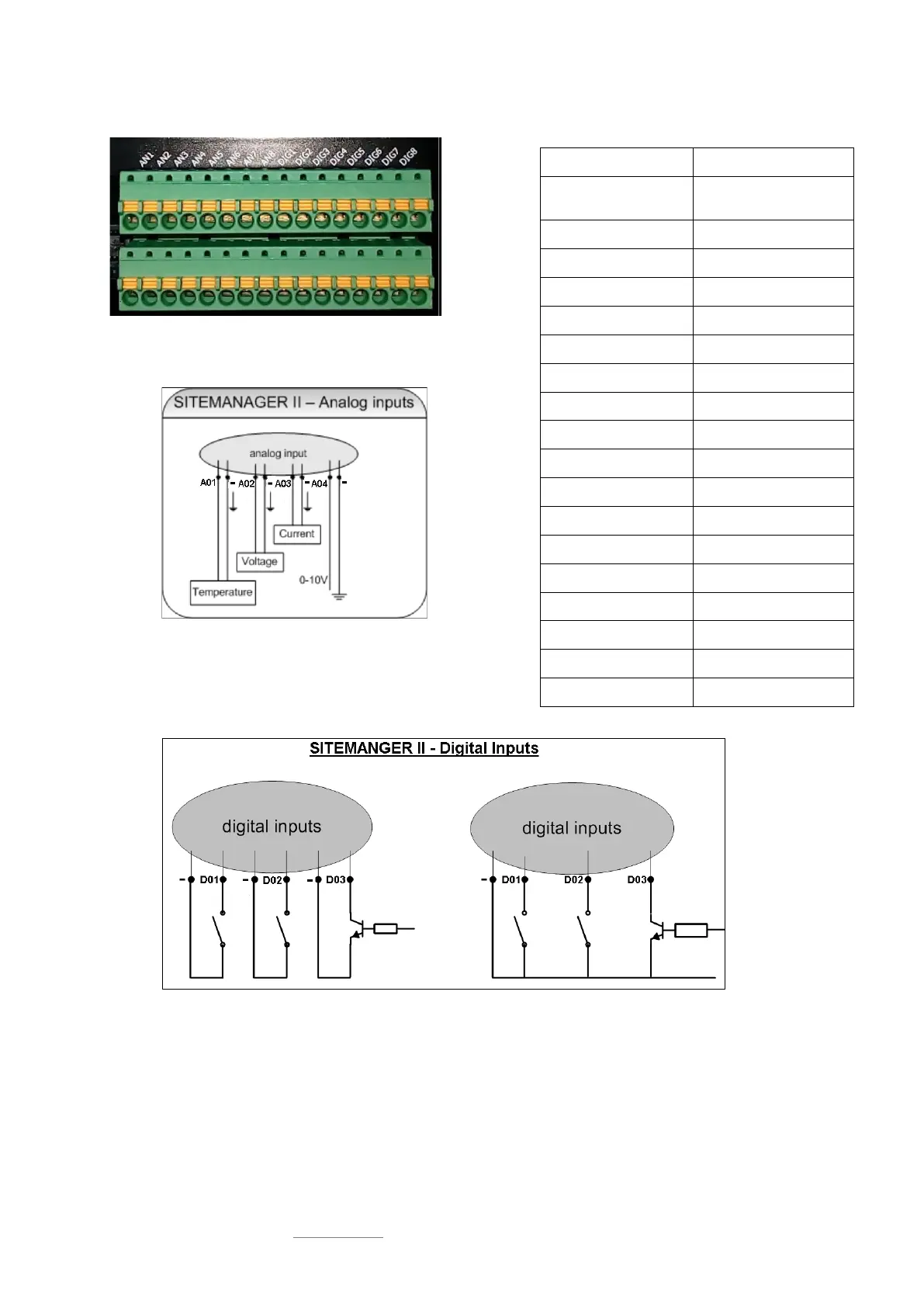

Abb.: Digital-/Analogeingänge SITEMANAGER II/v6
Abb.: Schaltbild Analogeingänge
Klemmenbezeichnung:
Anschluss:
X1 / 12V +
Betriebsspannung
+12VDC
X1 / -
GND -
X2/A01
Analog Input 1
X2/A02
Analog Input 2
X2/A03
Analog Input 3
X2/A04
Analog Input 4
X2/A05
Analog Input 5
X2/A06
Analog Input 6
X2/A07
Analog Input 7
X2/A08
Analog Input 8
X2/D01
Digital Input 1
X2/D02
Digital Input 2
X2/D03
Digital Input 3
X2/D04
Digital Input 4
X2/D05
Digital Input 5
X2/D06
Digital Input 6
X2/D07
Digital Input 7
X2/D08
Digital Input 8
