43

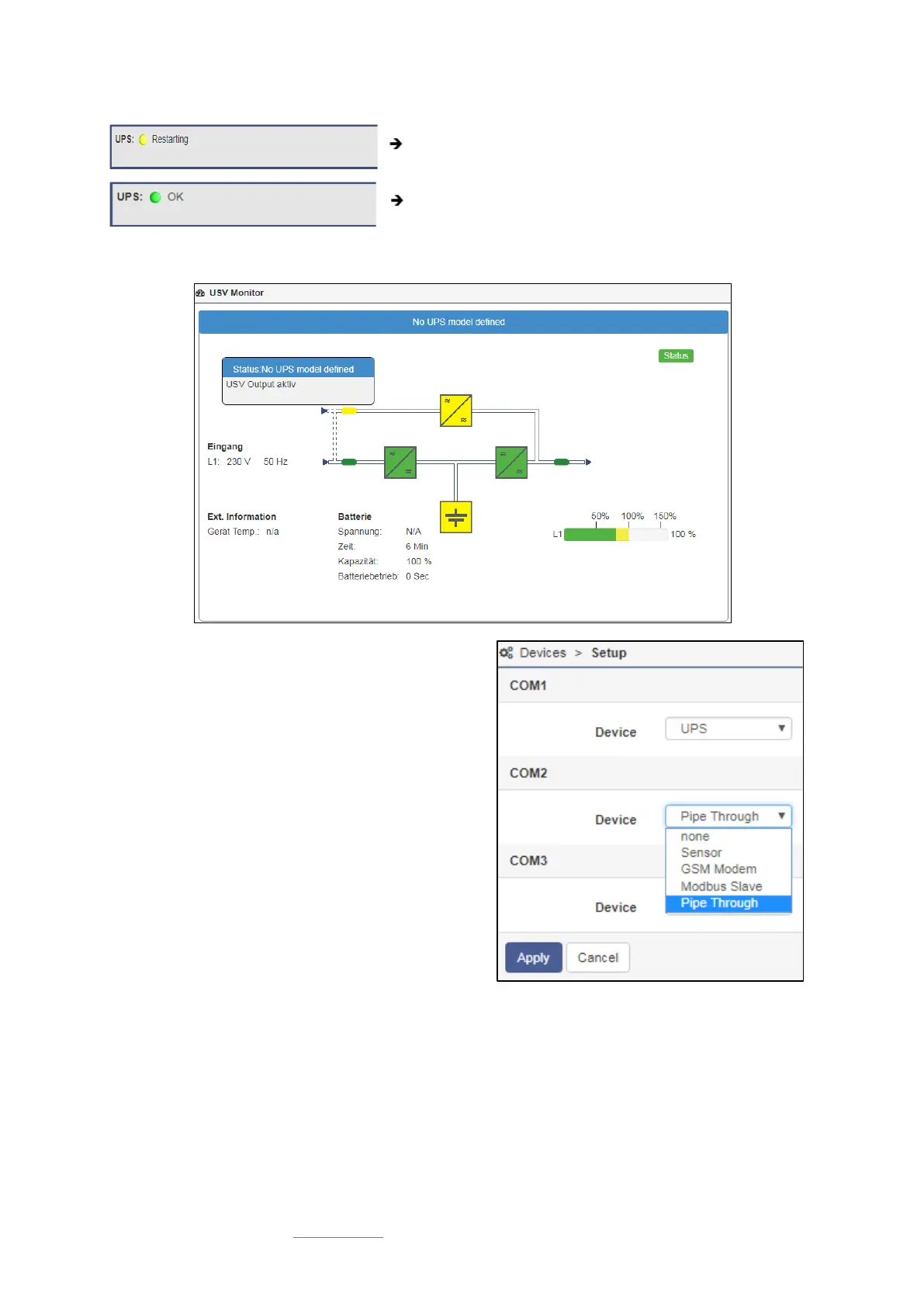

UPUPS service start-up routine in progress
TheUPS feature finished booting, the UPS menu accessible
Please note that only a dummy without a function has been started at this point, even if a UPS is apparently connected and in
operation:
Piping Through UPS signals
The COM port 2 is flexible and provides to connect various devices
to fulfil different functionalities:
- Sensors
- Modbus
- External modems
- UPS Signal piping
In companion to UPS configuration, the Pipe-Through functionality
of the CS141 offers an advantage in UPS signal usage:
The signal received from the UPS can be piped through the CS141
and will be available 1:1 at COM port 2.
Due to this fact administrators can harmonize emergency shutdown
solutions even if they need to use two different and physically
separated networks:
Physically separated network resources can be managed for their
own and use simultaneously the same UPS solution.
The configuration of Pipe Through is done on the Web Manager connected to the UPS. The second Web Manager is configured
as described on COM 1 but is connected to the COM2 port of the first Web Manager instead of the UPS.
