75

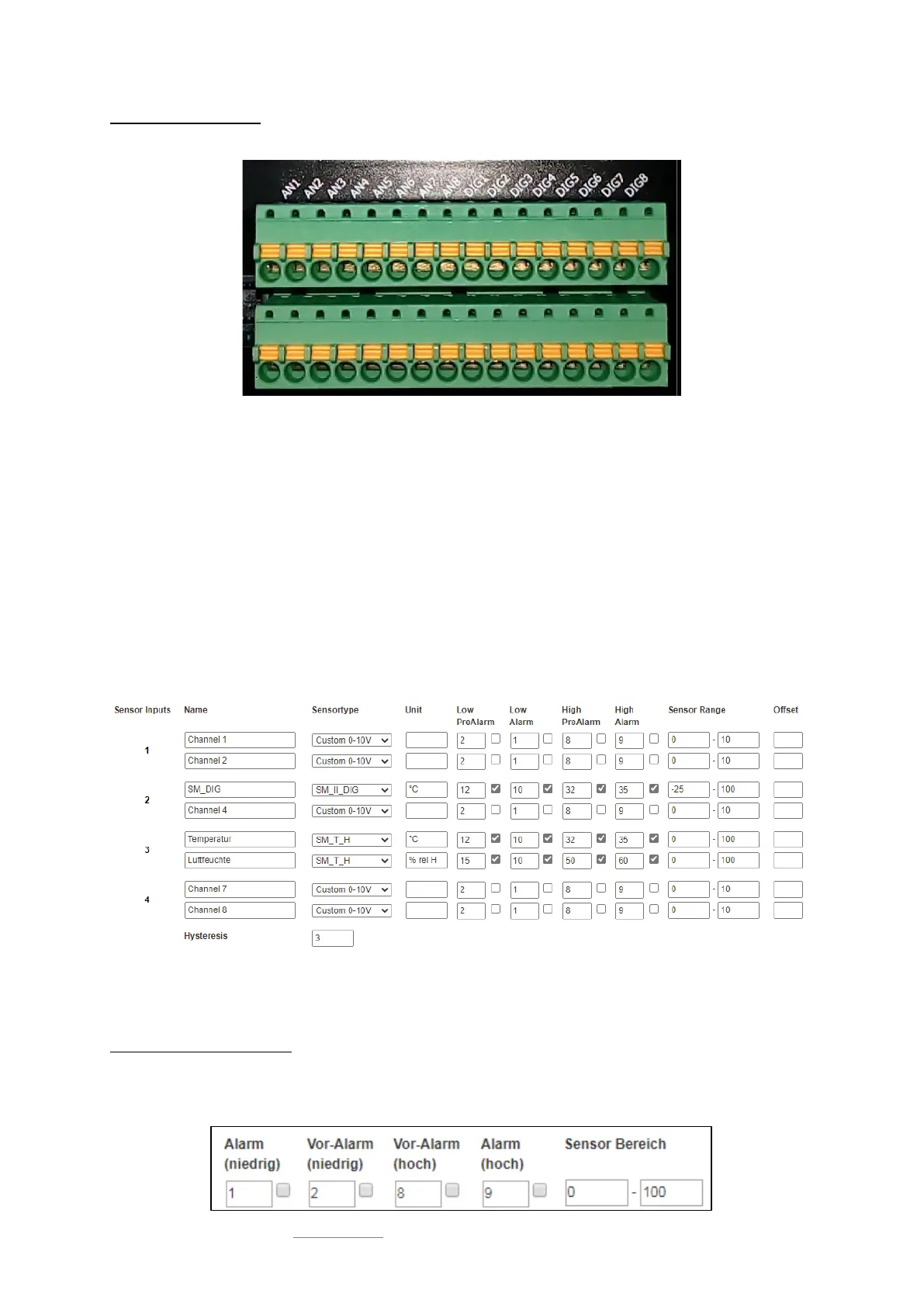

Using the direct connectors
If there is a need to connect of sensors directly, the SITEMANAGER 6 offers an optional terminal strip. The following key is used
for this:
AN1 / AN2 Sensor Input 1
AN3 / AN4 Sensor Input 2
AN5 / AN6 Sensor Input 3
AN7 / AN8 Sensor Input 4
The corresponding operating voltage or the reference points can be obtained from the second terminal strip below.
The configuration screen in the SITEMANAGER is divided into 3 parts
Analogue Sensors
After connecting the sensors, open the system menu "sensor type" and define which sensor is connected. Please note that the
individual channels are routed to the outside in pairs: Sensors 1 and 2 form a channel pair, sensors 3 and 4 form one, and so
on. If you set a combination sensor that uses 2 channels, the corresponding sensor twin is automatically assigned to the
channels.
Definition of the alarm thresholds
The sensors offer several possibilities to be adapted to the operating environment. As an example, a temperature sensor is
adapted:
