Generic XOR User Manual

-

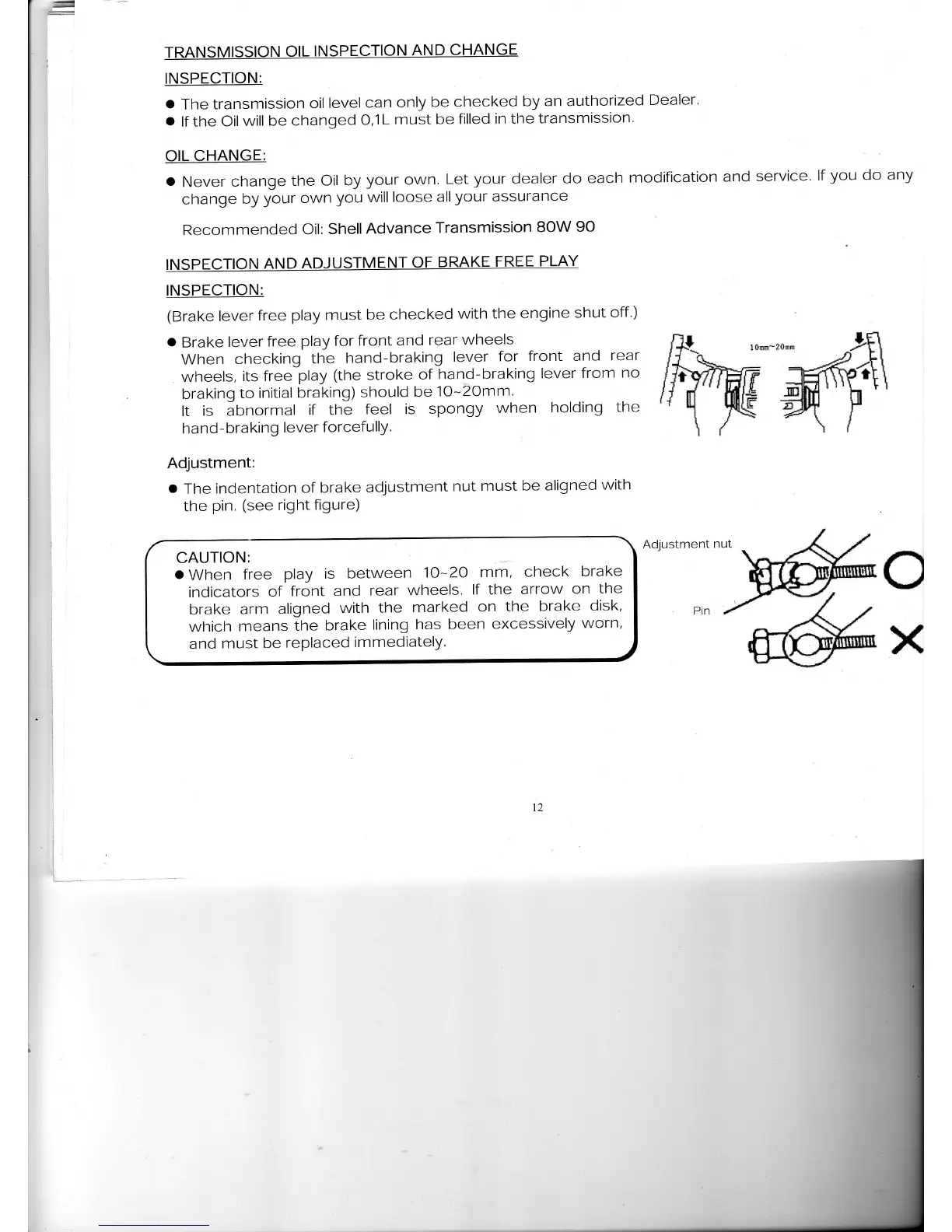

TRANSMISSION
OIL
INSPECTION
AND CHANGE
INSPECTION:
a
The
transmission
oil
levelcan
only
be checked
by
an authorized
Dealer'
.
lf the Oil
will be
chanqed
O,1L
must
be
filled
in the
transmission.
OIL
CHANGE:
o
Never
change
the Oil
by
your own.
Let
your dealer
do
each
modification
and
service.
lf
you do any
change
by
your own
you will
loose
allyour
assurance
Recommended
Oil: ShellAdvance
Transmission
BOW
90
INSPECTION
AND ADJUSTMENT
OF
BRAKE
FREE
PLAY
INSPECTION:
(Brake
lever
free
play
must
be
checked
with
the engine
shut
off
)
o
Brake
lever
free
play
for front
and
rear
wheels
When
checking
the
hand-braking
lever
for
front and
rear
wheels,
its free
play
(the
stroke
of
hand-braking
lever
from
no
braking
to
initial braking)
should
be
1O-2omm.
It
is abnormal
if the
feel is
spongy
when
holding
the
hand
-
bra
king
lever
forcefullY.
Adjustment:
o
The
indentation
of brake
adjustment
nut
must be
aligned
with
the
pin.
(see
right
figure)
CAUTION:
o
When
free
play
is between
1O-2O
mm, check
brake
indicators
of
front
and
rear
wheels.
lf the
arrow
on
the
brake
arm
aligned
with the
marked
on
the
brake
disk,
which
means
the
brake
lining
has
been
excessively
worn,
and
must be
replaced
immediatelY'
WW
Adjustment
nut
C
X

Generic XOR Specifications

General

Front Brake	Disc
Rear Brake	Drum
Engine	124.8 cc, 4-Stroke, Air Cooled, SI Engine
Max Power	8 kW @ 7500 rpm
Max Torque	10.5 Nm @ 6000 rpm
Fuel Tank Capacity	11 Liters
Kerb Weight	140 kg
