all crates and store them safely, in case you need to move these
speakers some time in the future.
Next, set up the midrange/tweeter wings. The wings
are marked left and right, so set them up on the
correct side. First locate the crate containing the left
wings, and locate the corresponding Corian panel.
The left Corian panel will have the column of tweeters
to the right of the midrange ribbon.

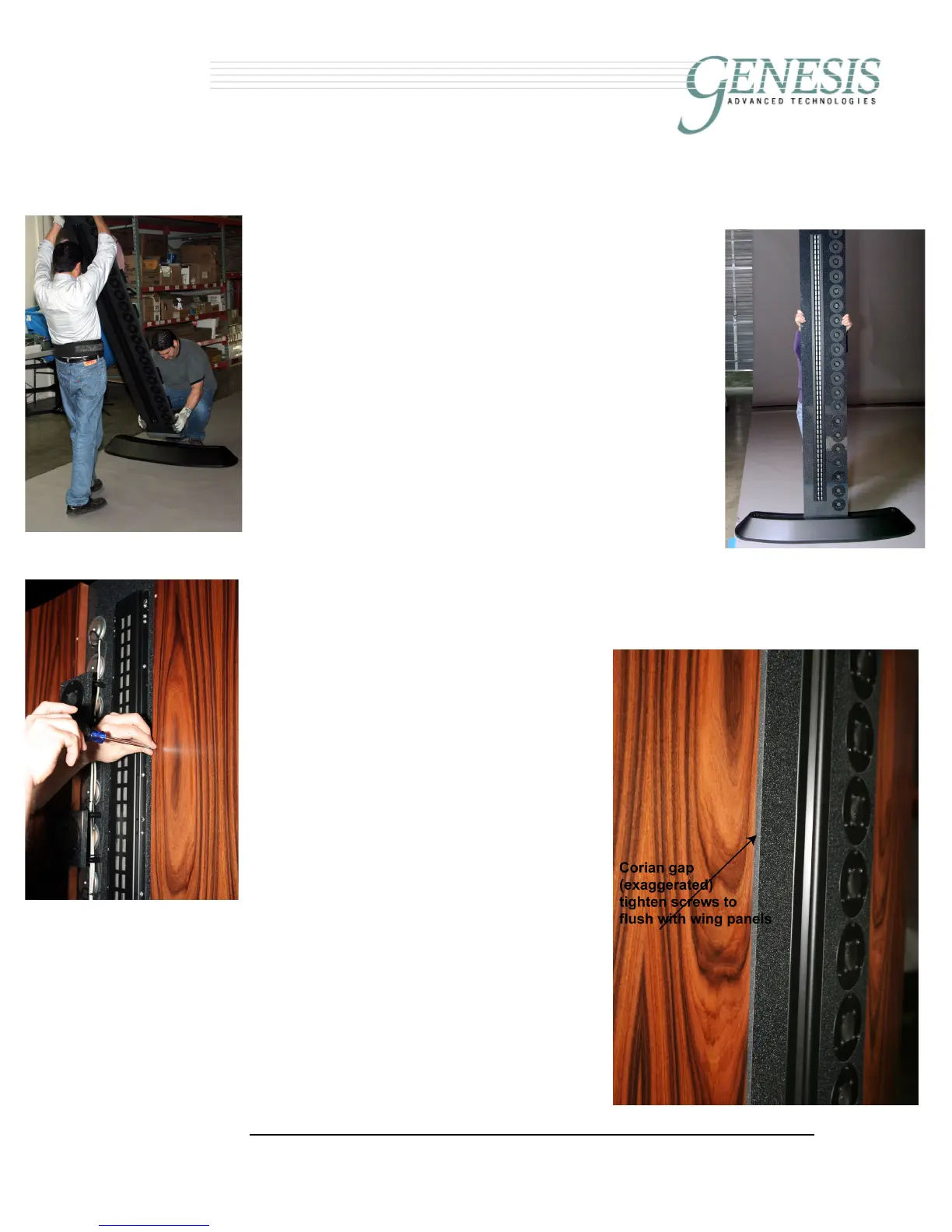

Unscrew the top of crates and remove the lids. First,
remove the Corian panel with the tweeters and
midrange and insert it into the center part of the base.
Have someone hold the panel in place until the wings
are put in place. The wings hold the panel up, and if
the panel tilts too far front or back, the bottom might
break off.
Then, while someone else holds the panel vertical,
place one of the veneer/mdf wings into the slot beside the panel.
Once both wings are in place, screw the three parts together. Make
sure that the tweeters are on the inside – ie. the row of tweeters are
closer together than the midrange ribbons.
Insert all 12 screws provided (with the
washers) from the back through the
holes in the wings into the inserts on the
Corian panel. Finger-tighten the screws,
taking care to seat the screws properly
into the brass inserts. You may have to
move the panel forwards and
backwards slowly to align all the screws
properly.
Once all 12 screws are in, you can then
tighten them to make the surface of the
wings flush with the Corian panel. Do not
over-tighten. The screws are just used to
hold the wings and panel vertically in
place. The curve of the wings provides
most of the structural strength.
