Genesis BYC-013TG1 User Manual

- 11 -

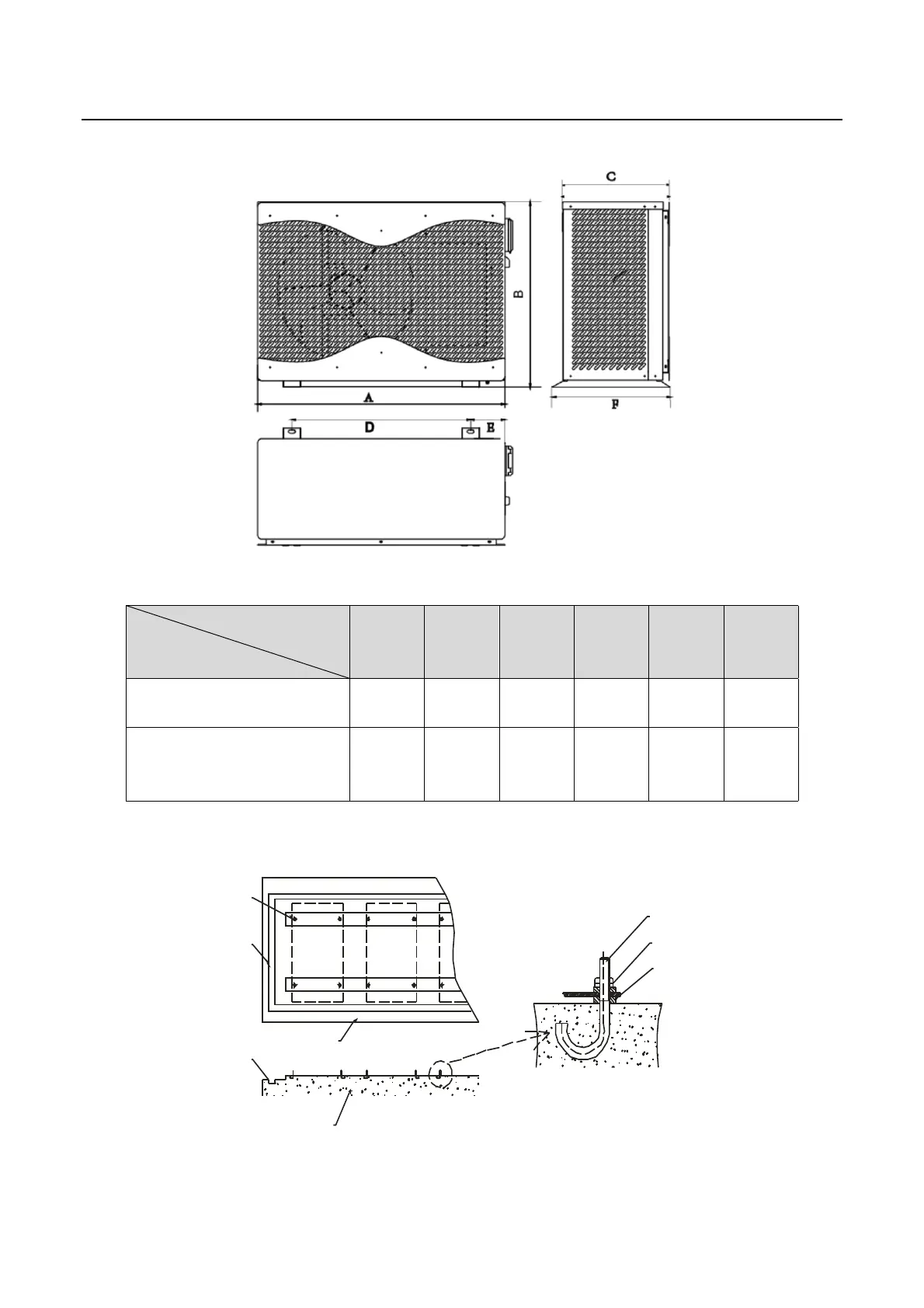

4.4 Heat pump dimensions
#
Figure 4 Heat pump dimensions
Size(mm)
Model No.
A
B
C
D
E
F
BYC-007TG1
BYC-010TG1
821
587
362
474
173
405
BYC-013TG1
BYC-017TG1
BYC-021TG1
850
637
366
614
118
405
4.5 Installation base for heat pump
Please refer to Figure 5.
Figure 5 Installation base
Anchor bolt
Drainage tray
!"#$ %&'(
Installation base
Concrete
Anchor bolt
Screw nut/washer
Shock absorb
!"#$ %&'(
Drainage tray
