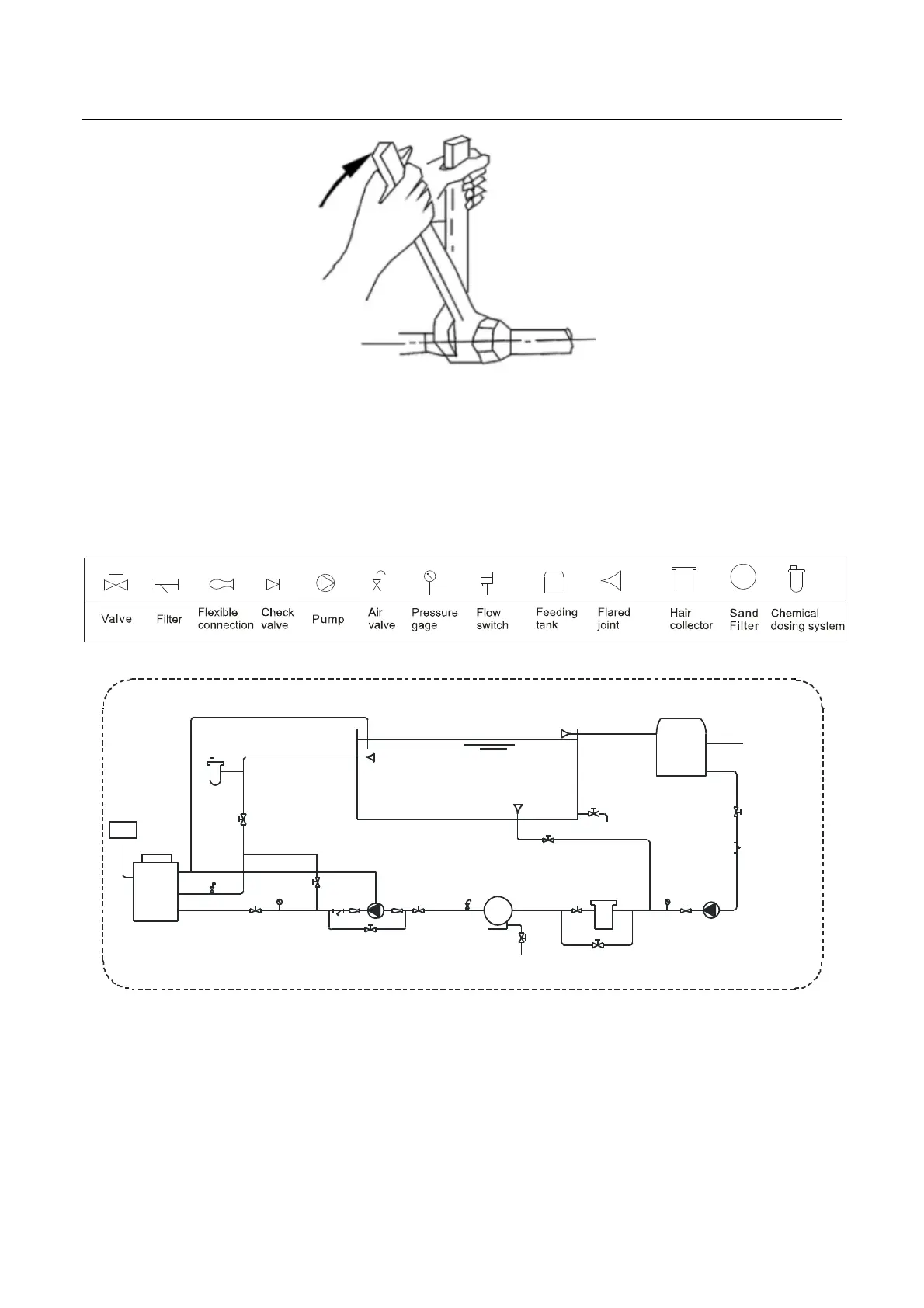

Figure 7
5.2 Instructions
5.2.1 Symbols
5.2.2 Pipeline installation diagram
Figure 8 Diagram!Single unit for reference"
●It is recommended to install a one-way valve for each unit to prevent water back flow.
●Multiple units can be installed as part of a system, but each unit should be controlled independently.
●All pipes and valves should be insulated.
5.2.3 Connection sizes
Controller
Heat
Pump
Water temp sensor wire! "! !
Swimming Pool
Pump signal wire
Pump
Drainage
Drainage
Feeding water
