Quick Start Guide HD Ground Loop Isolator - BNC Male to BNC Female
2
The Genie GCB01HD is a passive ground loop isolator for AHD, HDCVI, HDTVI and
Analogue Video signal over coaxial cable. The device helps to combat interference
issues caused by different ground potential during the signal transmission, which
improves the video anti-interference capability and effectively eliminates tearing
and scrolling pictures.
Features
• Passive, no power required
• Eliminate video distortion caused by ground loops circuit
• Eliminate issues as image tearing, cross-talk, rolling etc.
• Built-in 800v insulated voltage
• Fully compatible with HDCVI, HDTVI, AHD, Analogue video signals
• Excellent anti-interference capability, superior lighting-protection, ESD and EFT
capability

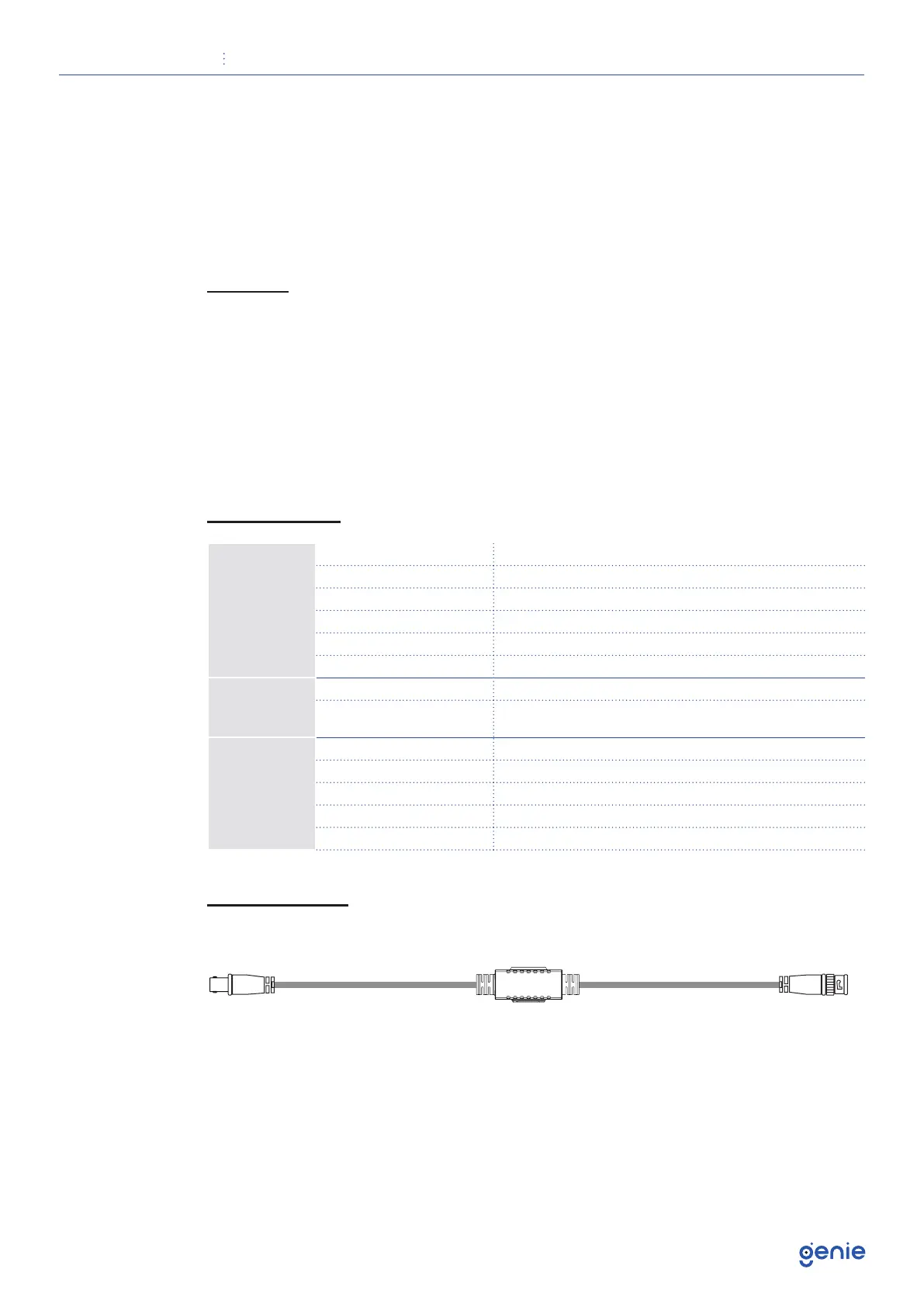

Specifications
Board Diagram
BNC Female
(Input)
BNC Male
(Output)
Function
Insertion Loss 0.5dB
Frequency Response 5Hz-70MHz
Input Impedance 75
Output Impedance 75
Isolation Voltage 800V (Minimum)
Isolation Resistance 100M
Protection
Surge Protection Level 3 Per IEC61000–4–5
ESD Protection
Contact Discharge: 6KV,
Air Discharge: 8KV, Per IEC61000–4–2
Others
Operation Temperature -10°C ~ 55°C
Storage Temperature -40°C ~ 85°C
Humidity 0~95% (Non-Condensing)
Dimensions 41 × 24.5 × 21.6 mm
Weight 51g
