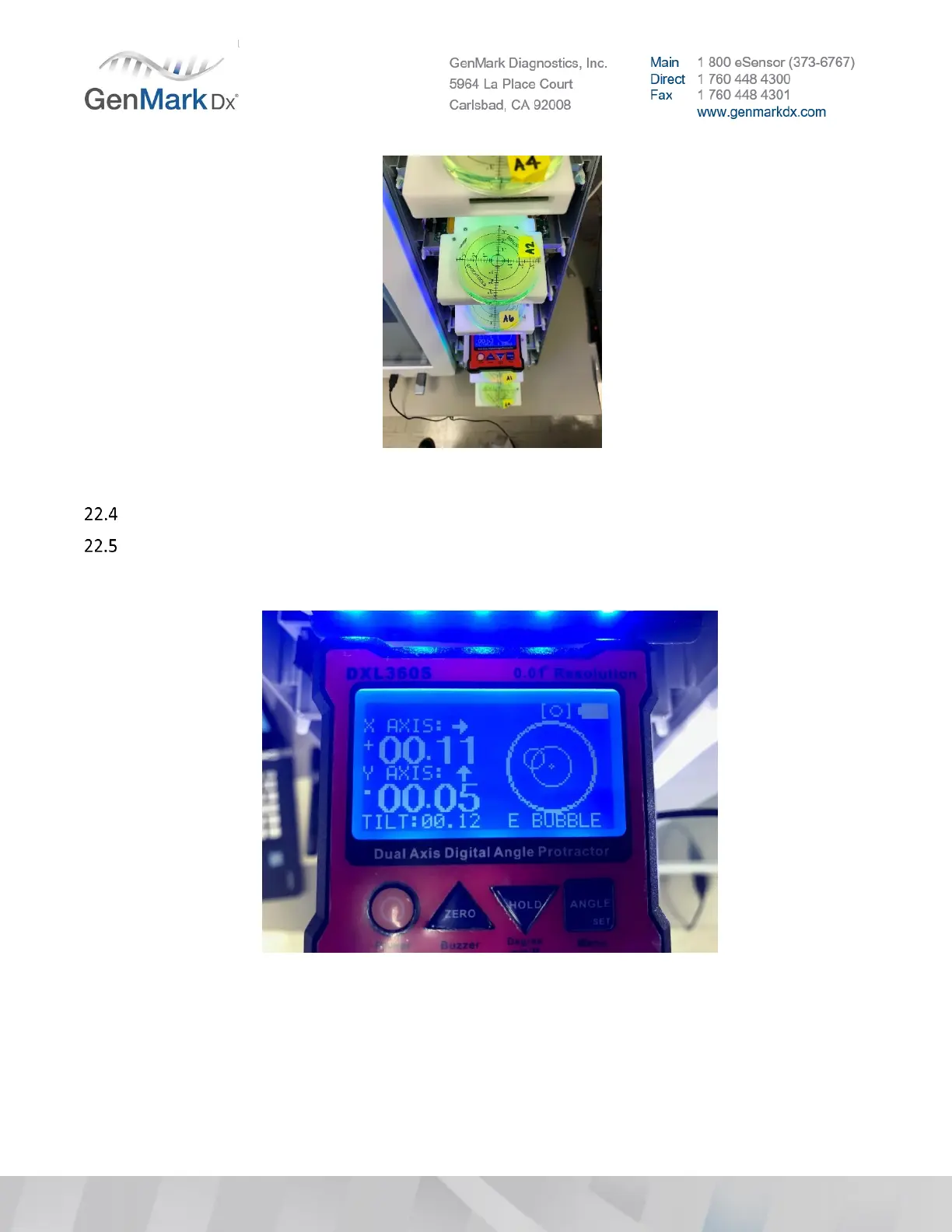

Figure 58 Fine Tuning Bay Leveling
Unlock the ¼ turn bay fasteners and use slight pressure to fine tune level on all bays
Using a dual axis leveling device note the initial measurement in both axis and record the data below.
Level the system in X axis (-0.25° to +0.5° potentially biased with the left side high) and Y axis (-0.5°
to 0.0° potentially biased with the back side high).
Figure 59 Dual axis level reading for bay on test cartridge
