Preflight will start and eventually fail after pogo pins have pressed against the parafilm.
Repeat steps 21.3 - for each bay.
Inspect inside of all bays to ensure no parafilm or tape was left behind inside the bay and all gaskets
have not been dislodged.
Bay leveling procedure during OQ
Place all test cartridges upside-down on a level surface and inspect to ensure they are flat.
Note: For the leveling procedure, use only flat test cartridges.

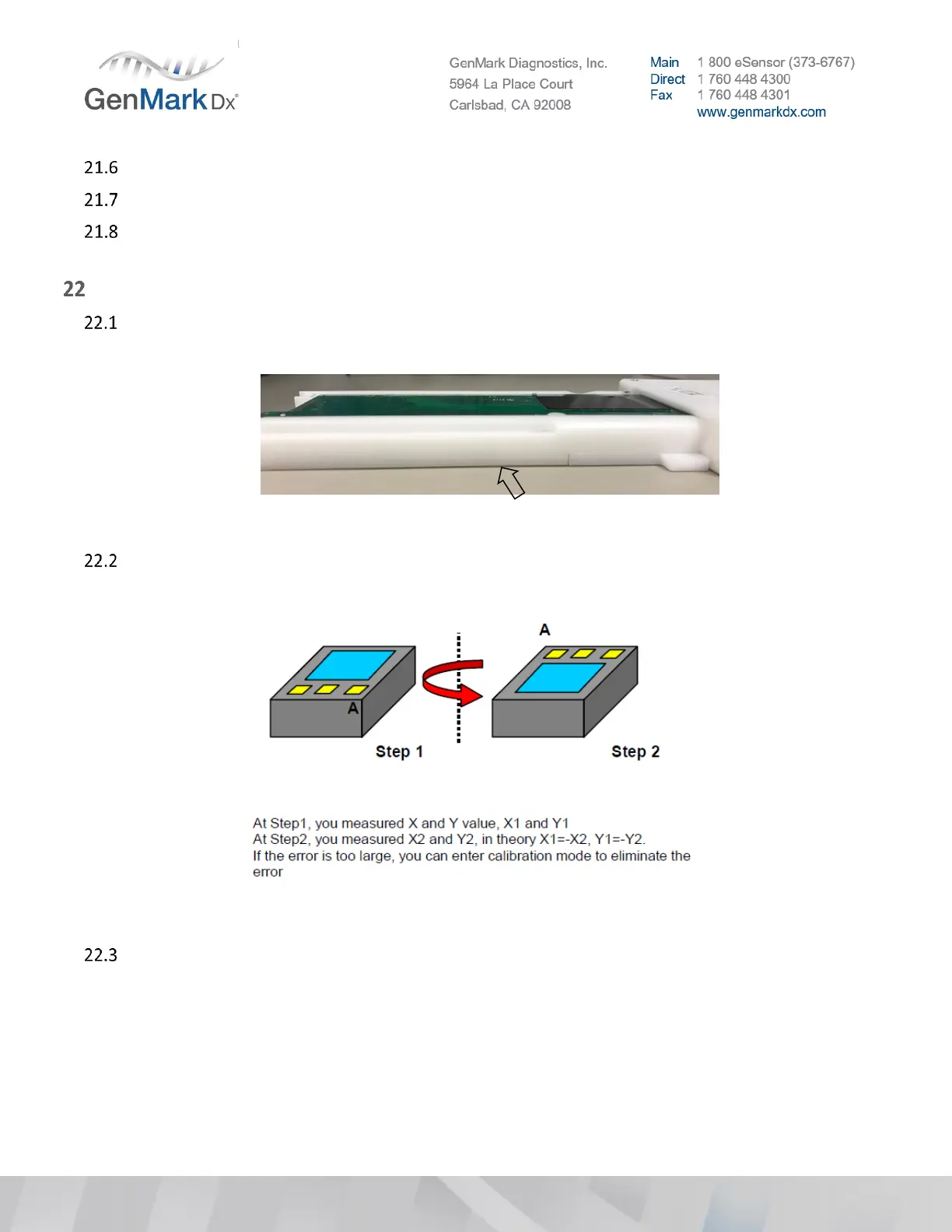

Figure 56 An unacceptable warped test cartridge with a gap under the middle of the cartridge
Check dual axis level for accuracy using procedure in Figure 57 Dual Axis Accuracy Checkin section 24
prior bay leveling.
Figure 57 Dual Axis Accuracy Check
While OQ is running, place dual axis level on the test cartridge of the bay you are tuning.
Note: Ensure the level sits flat on the test cartridge to ensure proper level and not on the plastic seam
Note: Ensure the labels on the test cartridges are moved to the bottom of the test cartridge—making
measurements with a gauge on a label produces erroneous values.
