GenMark Dx ePlex - Page 44

GNMK-IMC-6072-A

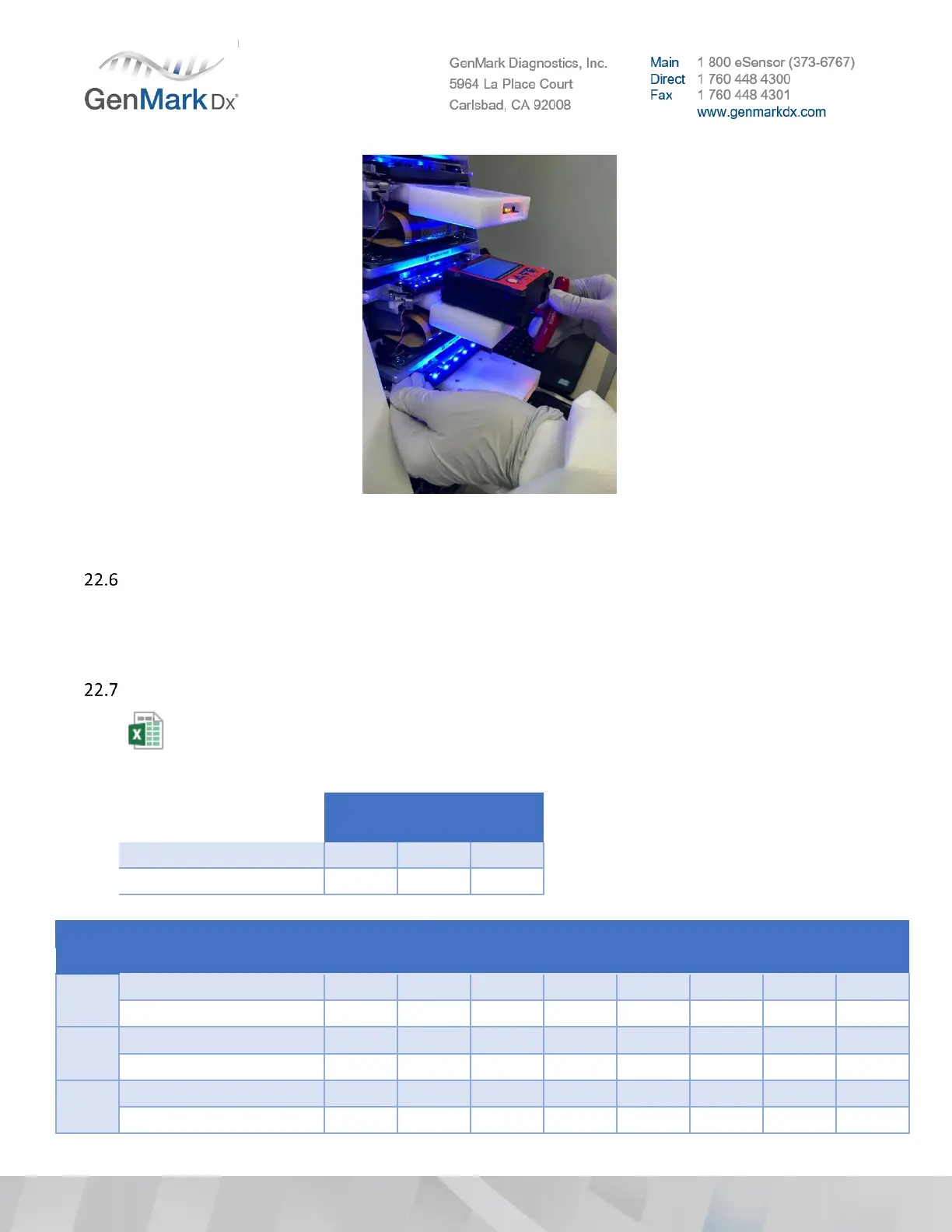

Figure 61 Minor adjustment to Bay level using bay drip tray and locking in place with ¼ turn
fasteners
If acceptable level is still not attained, then adjust the Base and Tower feet accordingly.
Note: Begin with A1, continuing to B1, C1, and D1 prior to moving downward into the system. This will
allow for general system level. Ensure towers are in same plane and all but the out 4 feet are raised up
off the bench so they don’t bottom out when trying to level the outermost feet.
Record the level information in the ePlex Level Template spreadsheet.
ePlex Level
Template.xlsx
Bench
Base
Initial
Initial
Final
X axis
Y axis
Tower A
Tower B
Tower C
Tower D
Bay
Acceptable Range
Initial
Final
Initial
Final
Initial
Final
Initial
Final
1
X axis (-0.25 to +0.70)
Y axis (-0.70 to 0.00)
2
X axis (-0.25 to +0.70)
Y axis (-0.70 to 0.00)
3
X axis (-0.25 to +0.70)
Y axis (-0.70 to 0.00)
