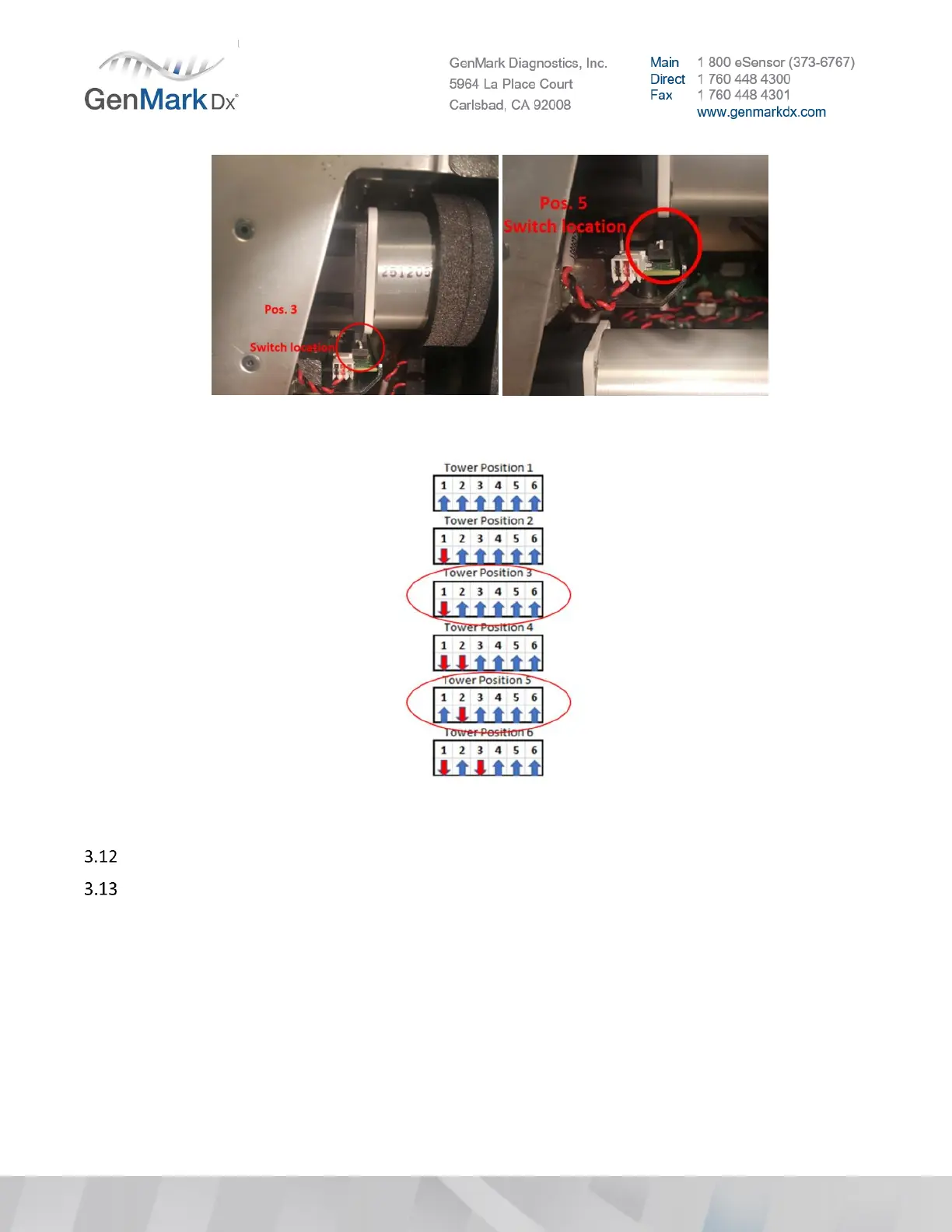

Figure 6 Position 3 and 5 Switch Location
Figure 7 NP Switch positions 1 – 6
Bottom out the front Tower feet on the bottom of the tower.
Position Tower(s) on the work bench next to the Base using one of the available positioning options
for ePlex Base-Tower configuration shown in Figure 8. Configuration should be based on number of
towers, space available, and customer preference.
