73

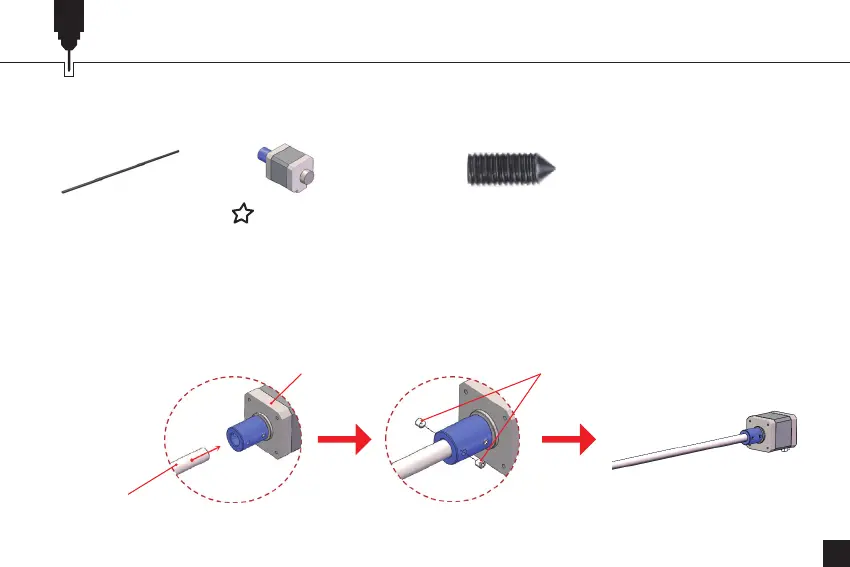

1. Install the extended lead screw into the coupler, screw the 2 M4x4mm screws with an Allen
wrench and tighten them.
Step 1: Install the Y-axis Right Module
What you need in this step of the installation:
L755mm Lead Screw
(2) M4x4mm Hexagon Socket Set Screw
Note: To ensure the stability and accuracy of the machine, it is recommended that you reinforce the screws with a
screw fixing compound. (It is recommended to use a high strength screw fixing compound. Apply to the first third
of the tightening screw threads.)
Motor Kit(YR)
L755mm Lead Screw
Motor Kit(YR) (2)Screw of Coupler
To Next Page
