GENTRON G6000LPG - Crankcase Cover System Assembly

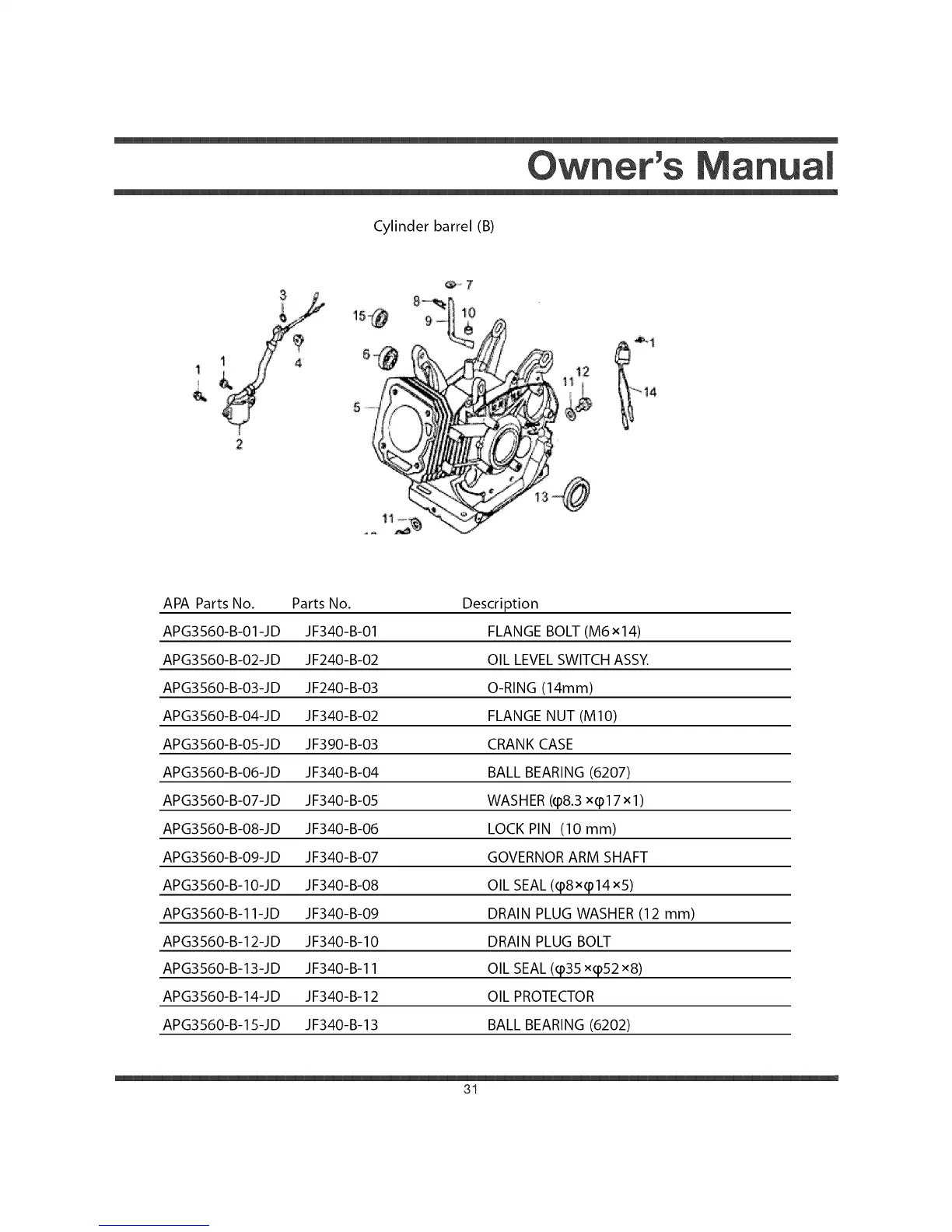

Cylinder barrel (B)
2
APA Parts No.
APG3560-B-01-JD
APG3560-B-02-JD
APG3560-B-03-JD
APG3560-B-04-JD
APG3560-B-05-JD
APG3560-B-06-JD
APG3560-B-07-JD
APG3560-B-08-JD
APG3560-B-09-JD
APG3560-B-10-JD
APG3560-B-1 I-JD
APG3560-B-12-JD
APG3560-B-13-JD
APG3560-B-14-JD
APG3560-B-15-JD
Parts No.
JF340-B-01
JF240-B-02
JF240-B-03
JF340-B-02
JF390-B-03
JF340-B-04
JF340-B-05
JF340-B-06
JF340-B-07
JF340-B-08
JF340-B-09
JF340-B-10
JF340-B-11
JF340-B-12
JF340-B-13
Description
FLANGE BOLT(M6x14)
OIL LEVELSWITCHASSY.
O-RING (14mm)
FLANGE NUT (MIO)
CRANKCASE
BALL BEARING(6207)
WASHER(q_8.3xr_17xl)
LOCK PIN (10 mm)
GOVERNORARM SHAFT
OIL SEAL(_8x_14 x5)
DRAIN PLUGWASHER(12 mm)
DRAIN PLUG BOLT
OIL SEAL(_35 x_52 x8)
OIL PROTECTOR
BALL BEARING(6202)
31
