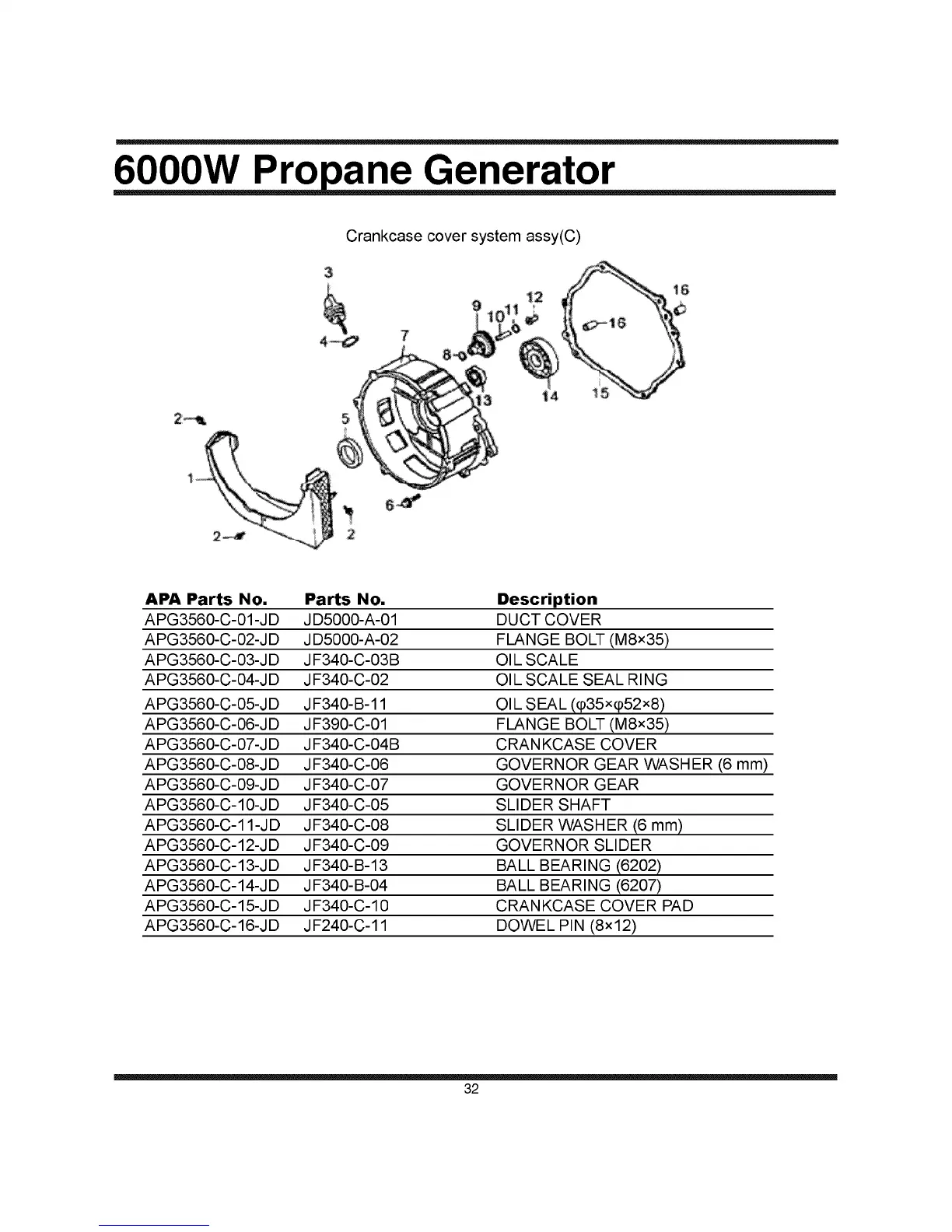

GENTRON G6000LPG - Crankshaft System Assembly

6000W Pro ane Generator
3
Crankcase cover system assy(C)
2_
14 t5
APA Parts No.
APG3560-C-01-JD
APG3560-C-02-JD
APG3560-C-03-JD
APG3560-C-04-JD
APG3560-C-05-JD
APG3560-C-06-JD
APG3560-C-07-JD
APG3560-C-08-JD
APG3560-C-09-JD
APG3560-C-10-JD
APG3560-C-11-JD
APG3560-C-12-JD
APG3560-C-13-JD
APG3560-C-14-JD
APG3560-C-15-JD
APG3560-C-16-JD
Parts No.
JD5000-A-01
JD5000-A-02
JF340-C-03B
JF340-C-02
JF340-B-11
JF390-C-01
JF340-C-04B
JF340-C-06
JF340-C-07
JF340-C-05
JF340-C-08
JF340-C-09
JF340-B-13
JF340- B-04
JF340-C- 10
JF240-C- 11
Description
DUCT COVER
FLANGE BOLT (M8x35)
OI L SCALE
OIL SCALE SEAL RING
OIL SEAL (q)35xcp52x8)
FLANGE BOLT (M8x35)
CRANKCASE COVER
GOVERNOR GEAR WASHER (6 mm)
GOVERNOR GEAR
SLIDER SHAFT
SLIDER WASHER (6 mm)
GOVERNOR SLIDER
BALL BEARING (6202)
BALL BEARING (6207)
CRANKCASE COVER PAD
DOWEL PIN (8x12)
32
