GENUINE DGH9 V4 080 - Prepare Vehicle Bumper for Installation; Position Side Installation Templates

Rear Bumper
1. Prepare Bumper:
Open lift gate/trunk.A.
Clean the tape attachment areas on the bumper thoroughly with the alcohol prep pad provided and allow to dry.B.
Apply adhesion promoter directly onto the tape attachment areas of the bumper.C.
Allow the adhesion promoter 5 minutes drying time once applied.D.

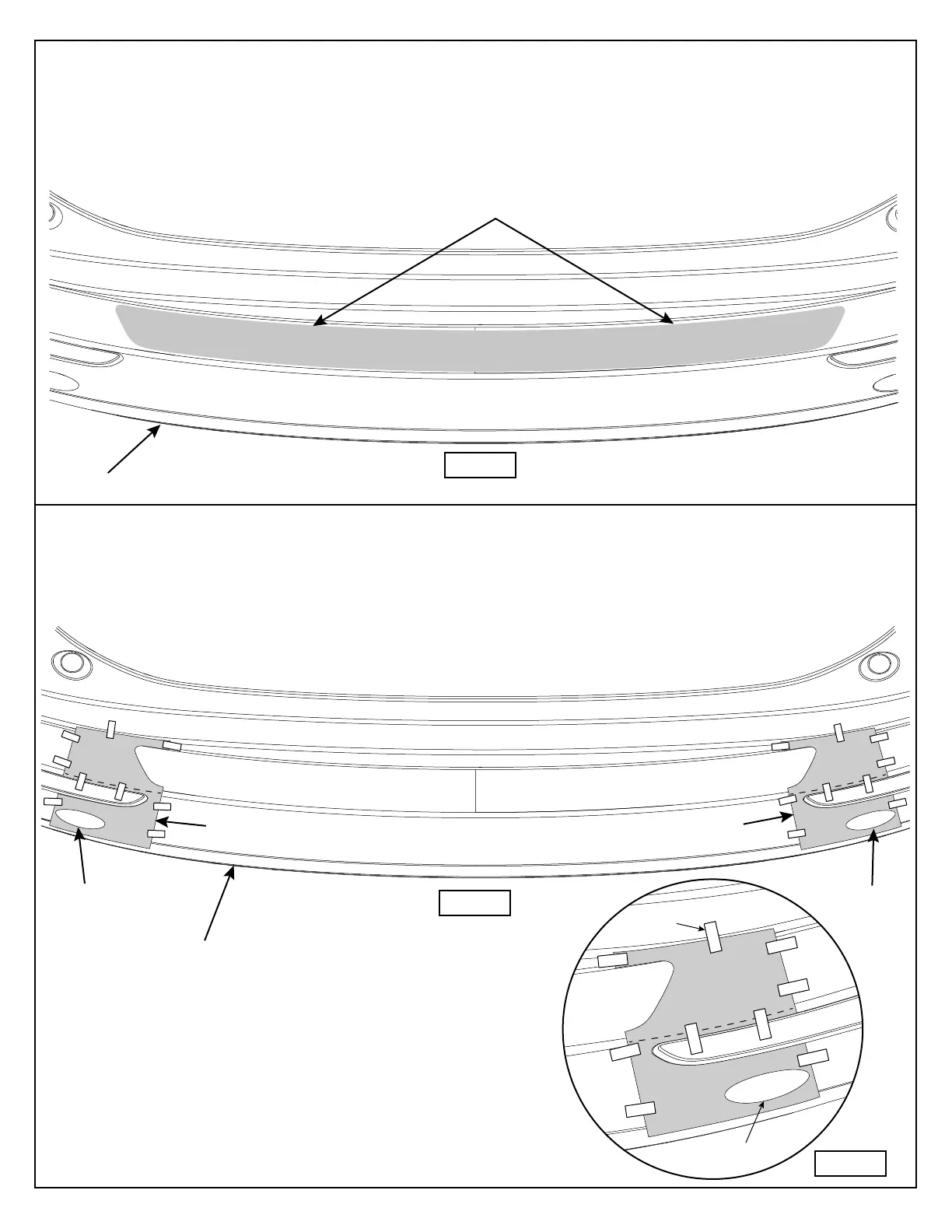

Figure 1
06/06/19 SK713
Clean top surface of bumper
Rear Bumper
Align to Hole
Align to Hole
2. Position Side Templates:
Fold the die cut templates at the dotted lines.A.
Place the die cut templates into position at the rear bumper, aligning to the holes. (Figure 2). B.
Tape into place (Figure 3).C.
Figure 2
Die Cut
Template
Die Cut
Template
Figure 3
Align to Hole
Tape x9
Die Cut
Template
