3D Window
3D WINDOW
NOTE: This function is available only with the NAVIONICS Platinum™ cartridges.

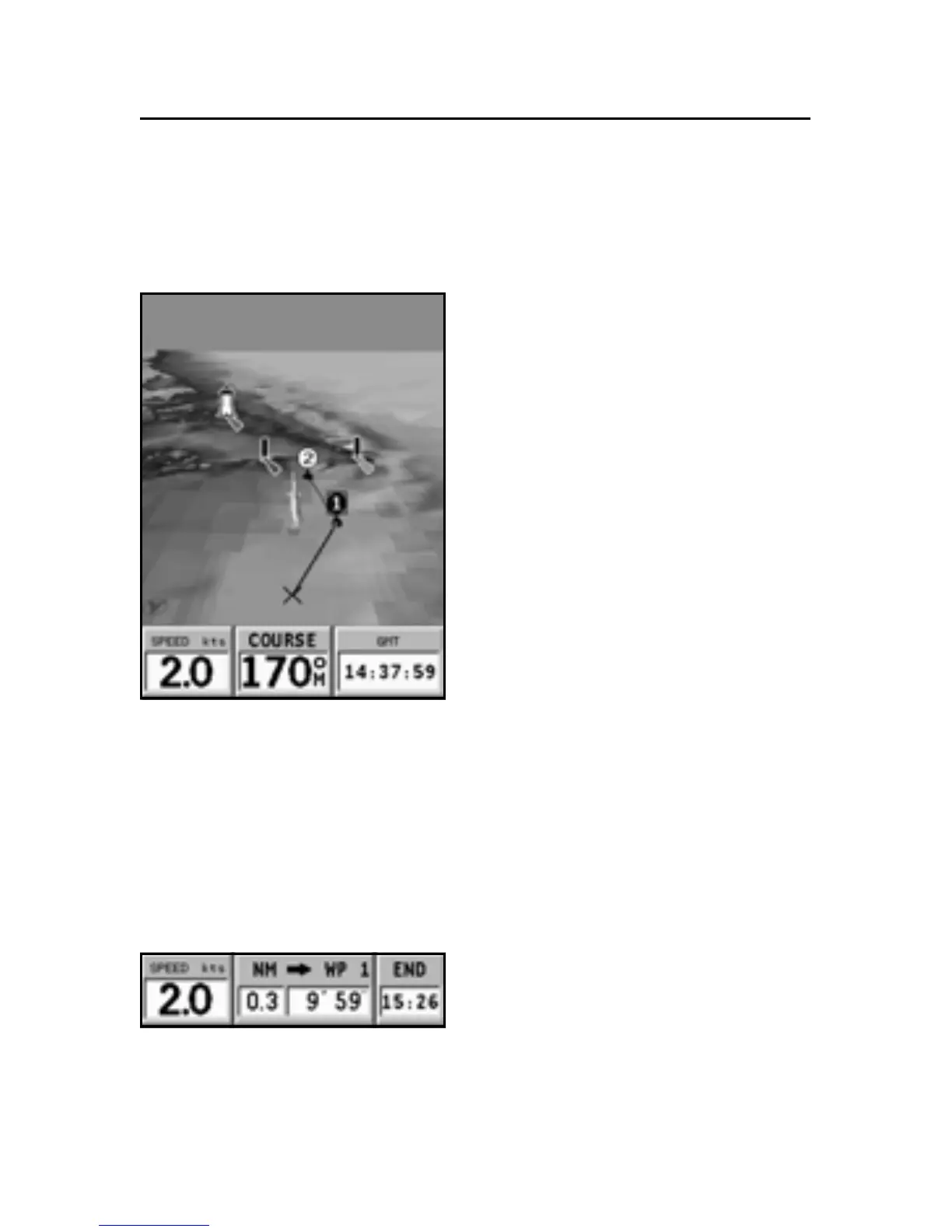

This window allows displaying
a 3D chart image of the area sur-
rounding the current boat’s po-
sition. The image simulates the
view according to the direction
you are moving to.
Press the PAGE/EXIT key repeatedly
to display the 3D navigation win-
dow, then use the joystick to
move the viewing angle and the
ZOOM key to enlarge or reduce the
image.
The ENTER key allows to raise the
view point and rotate the view.
Press ENTER once or twice to
switch from one function to another.
To choose the level of detail of the items to display, as well as
the quality of the picture, press GOTO to display the menu,
select SETUP, then 3D DISPLAY and edit the options as de-
sired.
If a route is present, the following data are displayed:
• Boat’s speed
• Distance from the target
waypoint
• Estimated time of arrival at
the target waypoint
• Time of arrival at the last
waypoint
