⚫ By adjusting the height of speed control rod, control the depth of rotary tiller, shift down,
depth increase; shift up, depth decrease.
3. Start the power tiller
⚫ Put the tiller in neutral gear position , press down handle bar of the emergency power cut off
devices, then start the machinery according to this instruction.
4. Adjust the clutch
Caution: reduce the speed of engine before using clutch.
⚫ By adjusting the “separate” or “join” of clutch, to control the output of engine power.

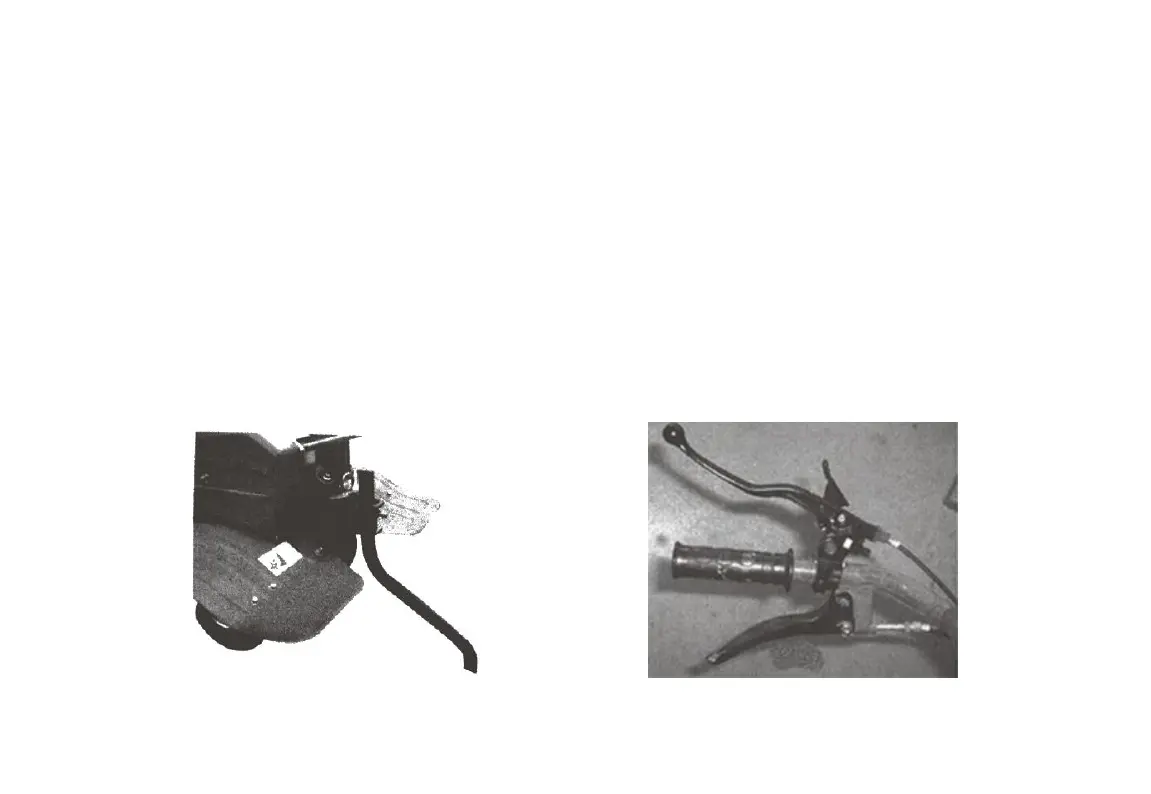

⚫ Grip the clutch, clutch join together, the engine power transport to the power tiller, rotary
blazes begin running. (see picture 7)
Picture 6 Picture 7
