Getac F110G6 User Manual

4
Left cap (P/N 344918000033)

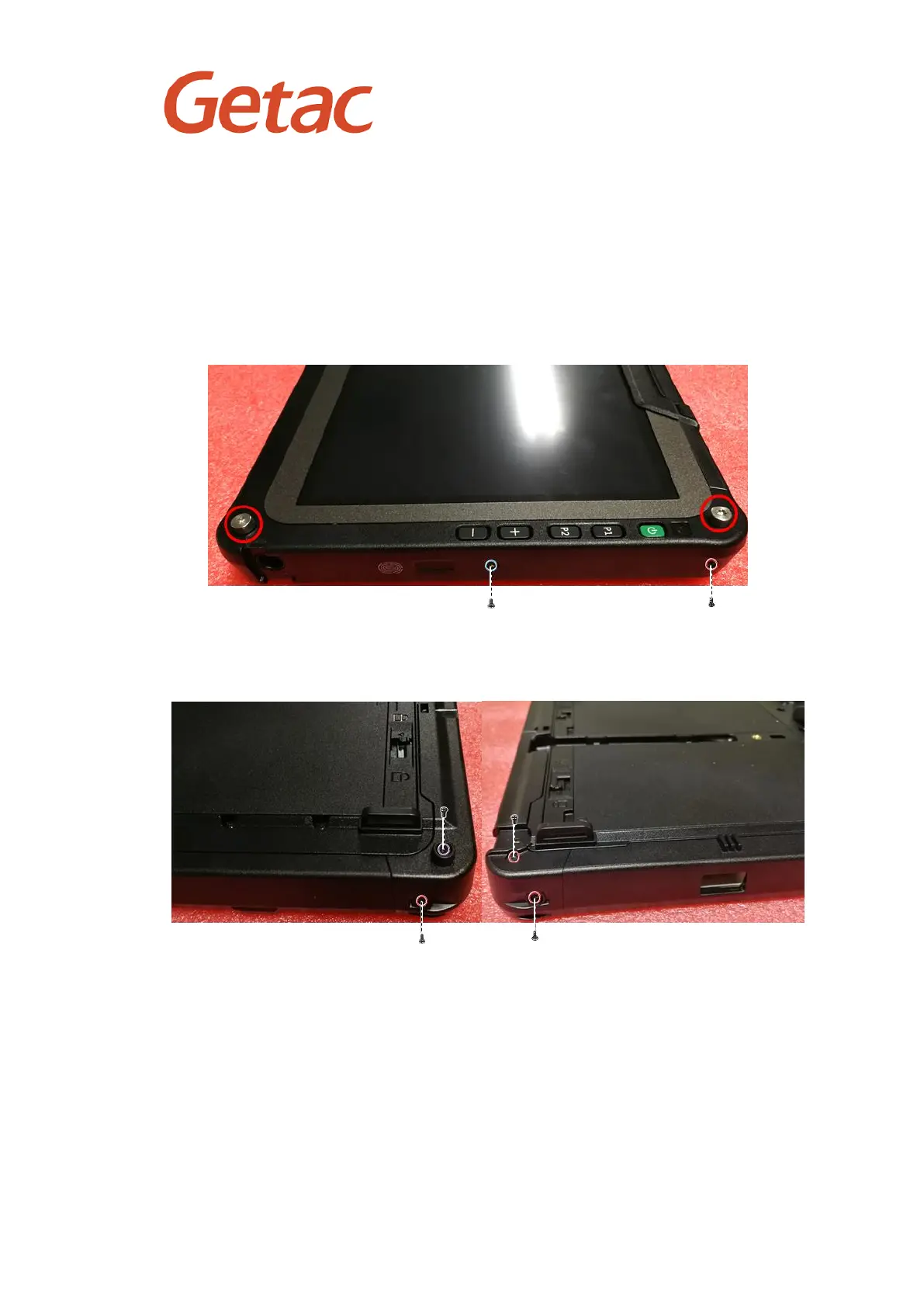

Removing the left cap
1. Remove the DC door.
2. Remove two GUIDE-PINs (371102610027). Remove the one screw
(371102600001) and one screw (370102010421),
3. Remove the three screws (371102600001). Remove the one screw
(342830700019) and washer.
4. Detach the left cap from F110G6,
Installing the left cap
Reverse the removal procedure to install the new part.

Getac F110G6 Specifications

General

Brand	Getac
Model	F110G6
Category	Tablet
Language	English
