Gewiss RESTART/AUTOTEST - Synchronisation Functionality

26
AUTOMATIC TEST
I
Un 230V ~
In 25 A
I∆n 0,03 A
2 pol.
6.000
63
-25
24
1
3
INSERIRE CON
LEVA IN
POSIZIONE I
ON OFF
230V
R
TEST
I
230V
I
Un 230V ~
In 25 A
I∆n 0,03 A
2 pol.
6.000
63
-25
24
1
3
INSERIRE CON
LEVA IN
POSIZIONE I
ON OFF
230V
R
TEST
I
230V

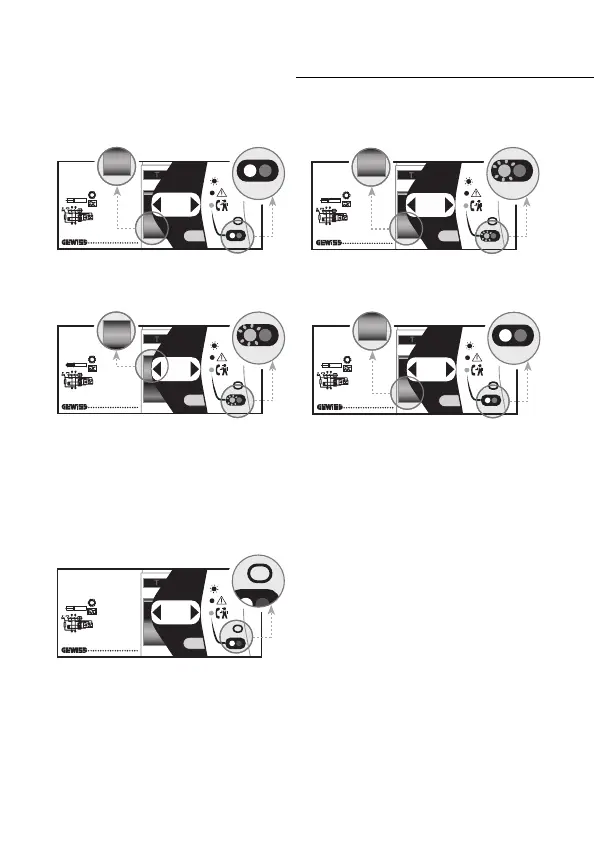

1. Normal operation. 2. Start of test.
0
Un 230V ~
In 25 A
I∆n 0,03 A
2 pol.
6.000
63
-25
24
1
3
INSERIRE CON
LEVA IN
POSIZIONE I
ON OFF
230V
R
TEST
0
230V
I
Un 230V ~
In 25 A
I∆n 0,03 A
2 pol.
6.000
63
-25
24
1
3
INSERIRE CON
LEVA IN
POSIZIONE I
ON OFF
230V
R
TEST
I
230V
3. Automatic tripping of the switch lever
(keeping the system powered up).
4. Reset completed. (The lever cannot be
operated manually in the next three
minutes).
I
Un 230V ~
In 25 A
I∆n 0,03 A
2 pol.
6.000
63
-25
24
1
3
INSERIRE CON
LEVA IN
POSIZIONE I
ON OFF
230V
R
TEST
R
SYNCHRONISATION
Self-diagnosis can be forced at any time
by pressing key R with a narrow point
(tool, pen, etc.). The weekly self-diagnosis
program will be synchronised and the
count of the 7 days will restart from this
moment.
There might be a few minutes delay in
performing the Autotest cycle if key R is
pressed following a previous reset.
