26
Connecting alarm contacts for Alarm,
Window Open and Fault
There are 3 floating (potential-free) alarm contacts for output signals:
Alarm, Window Open (optional, cannot be retrofitted) and Fault.
You can connect signal lamps, audible alarms or alarm signal lines to the fire station
to these contacts. The maximum load for each contact is 30 W at 24 V.

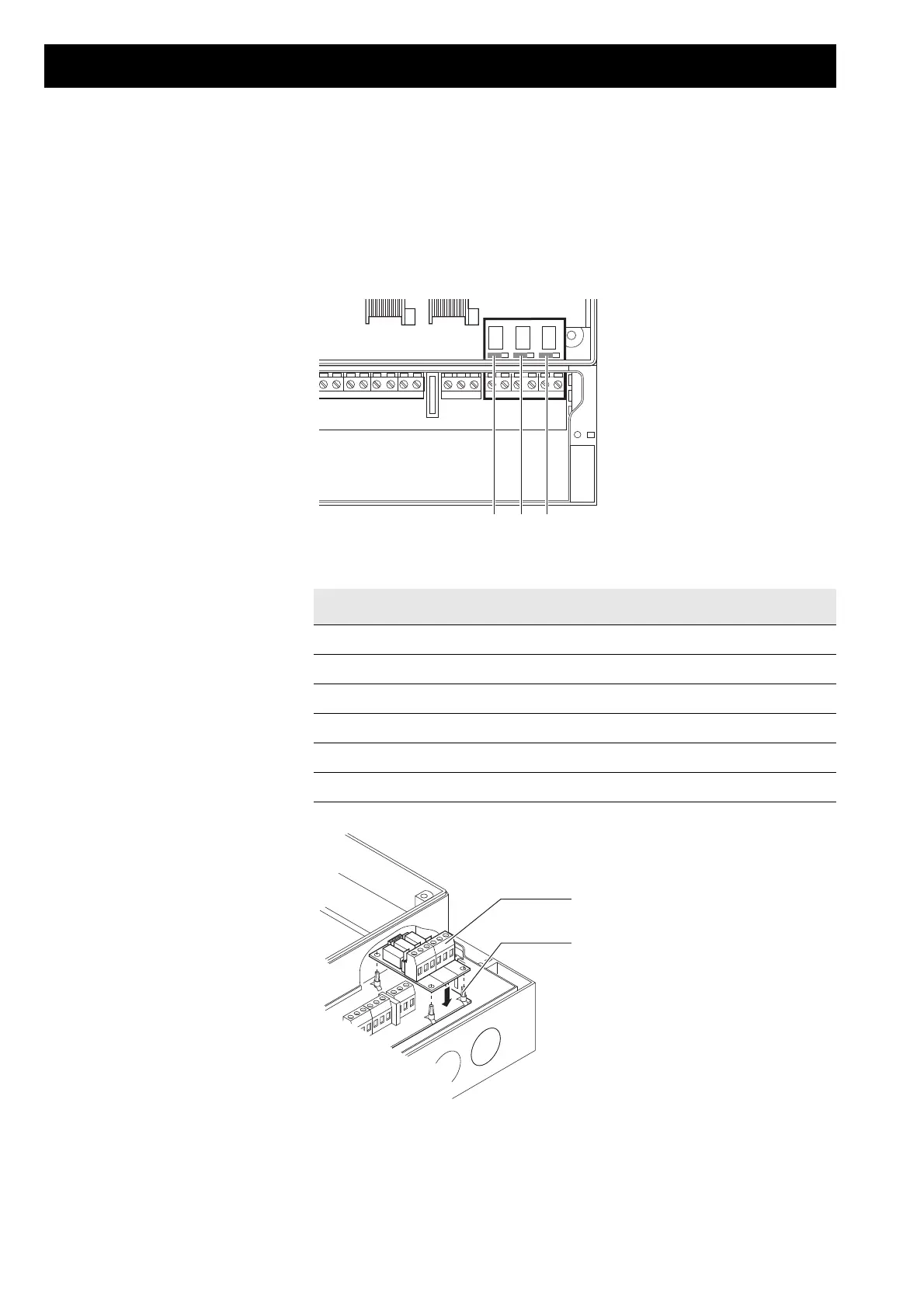

➮ The black jumpers (1), (2) and (3) behind the associated contact terminals
configure the contacts as make (NO) or break (NC) contacts.
Installing the "Alarm Contacts"
daughter card
1. Switch off the mains and remove the battery fuse.
The system is now off the circuit and de-energised.
2. Open the case.
3. Insert four spacers (2) into the holes in the main circuit board.
4. Push the "Alarm Contacts" daughter card (1) onto the spacers.
Jumper Position Function
(1) left Alarm contact acts as make (NO) contact.
(1) right Alarm contact acts as break (NC) contact.
(2) left Window Open contact acts as make (NO) contact.
(2) right Window Open contact acts as break (NC) contact.
(3) left Fault contact acts as make (NO) contact.
(3) right Fault contact acts as break (NC) contact.
