1.2 Components description
1.2.1 Operation Controls

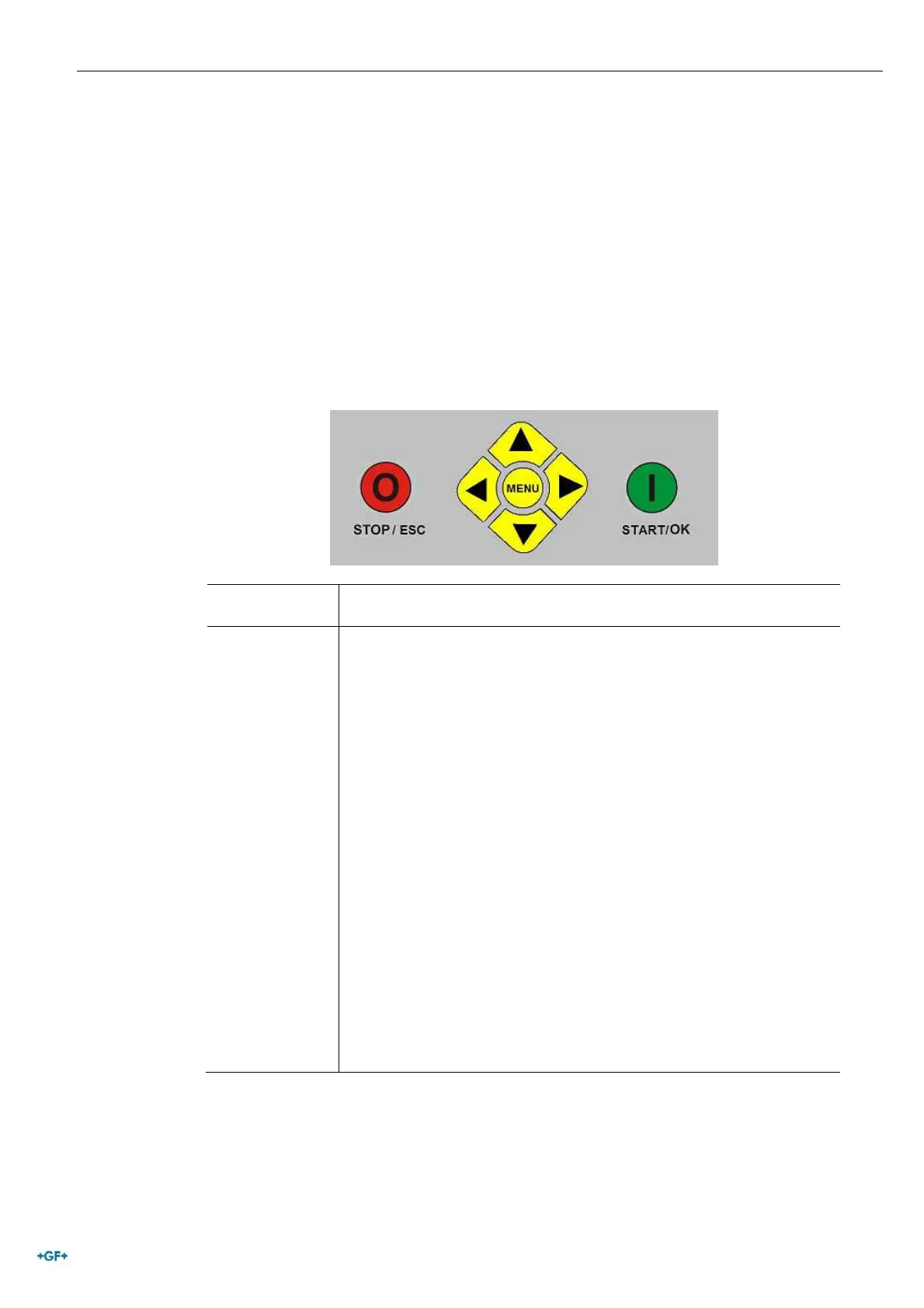

There are seven buttons the user can press to operate the
machine. START (green button) and STOP (red button) are the
most important, used to get a confirmation or a stop for all the
actions. The remaining (blue) are auxiliary buttons used for
menu navigation and data entry.
Button Description
()
Moves the cursor to previous field,
increases set values, scrolls characters
()
Moves the cursor to next field, decrement
set values, scrolls characters in reverse
order
()
Moves the cursor to the left
()
Moves the cursor to the right
Enters into additional menus
STOP/ESC
(O)
Stops any operation and the process; goes
back to previous step
Confirms inserted data and starts welding
