Chapter 1 Introduction
VFD-E Series
1-4 Revision August 2006, 01EE, SW--PW V1.03/CTL V2.03

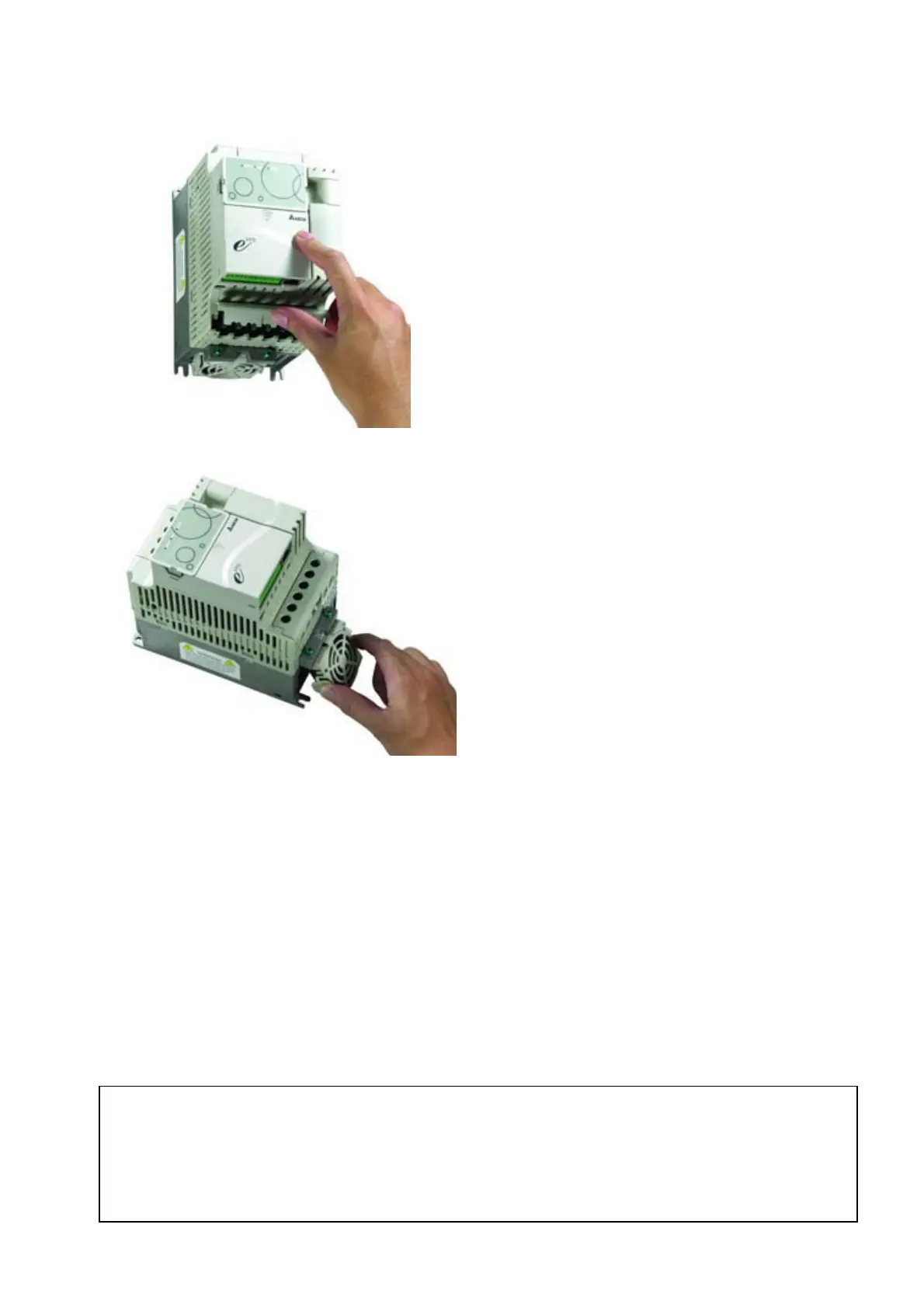

1.3.4 Remove UVW Terminal Cover
Frame B and Frame C
1.3.5 Remove Fan
1.4 Lifting
Please carry only fully assembled AC motor drives to prevent machine damage.
1.5 Storage
The AC motor drive should be kept in the shipping carton or crate before installation. In order to
retain the warranty coverage, the AC motor drive should be stored properly when it is not to be used
for an extended period of time. Storage conditions are:
Store in a clean and dry location free from direct sunlight or corrosive fumes.
Store within an ambient temperature range of -20
°
C to +60
°
C.
Store within a relative humidity range of 0% to 90% and non-condensing environment.
Store within an air pressure range of 86kPa to 106kPa.
