- 14 -
Gaming Monitor User Guide

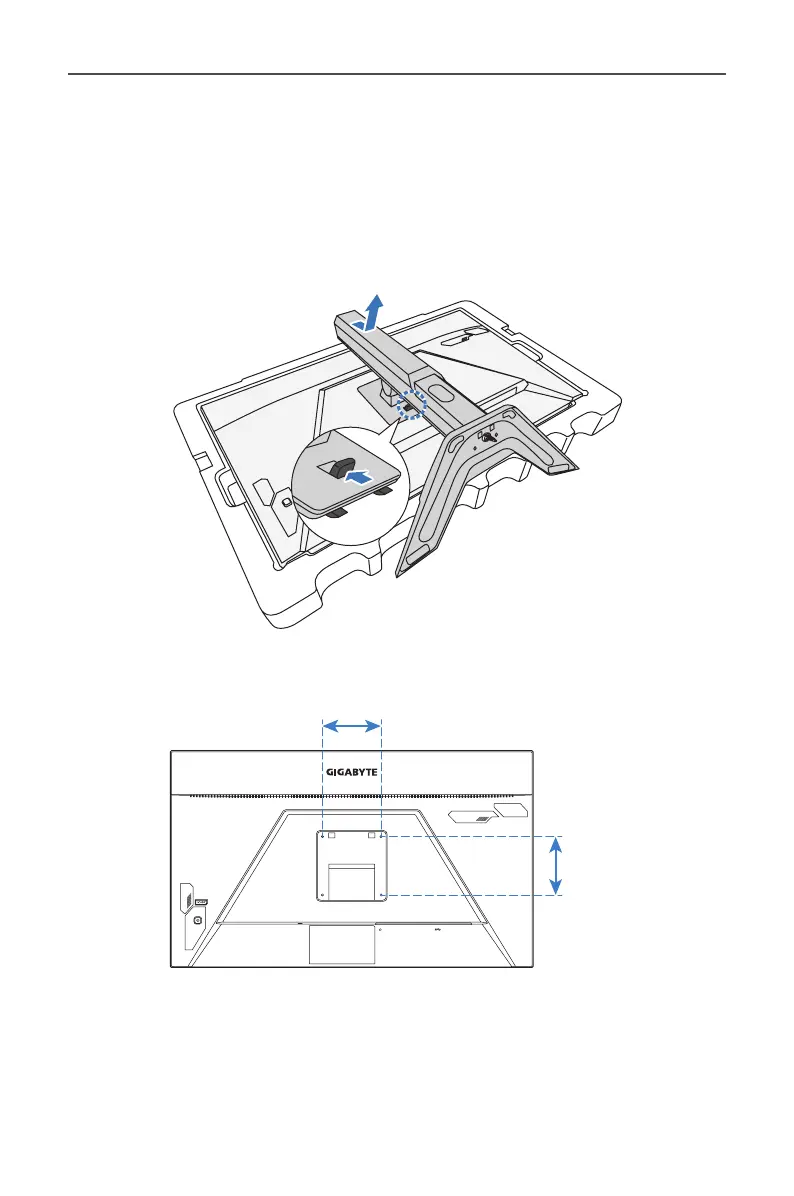

Installing a Wall-Mount Bracket (Optional)
Use only a 100 x 100 mm VESA compatible wall mount kit.
1. Place the monitor on the lower EPS foam, with the screen facing
down.
2. Push the release button upwards to disengage the stand from the
monitor. Then remove the stand.
3. Attach the mounting bracket to the mounting holes at the rear of
the monitor. Then use the screws to secure the bracket in place.
DPHDMI-1 HDMI-2 TYPE-C USB 3.0DC
100 mm
Note: To mount the monitor on the wall, refer to the installation guide that is
included in the wall-mount bracket kit. VESA mounting screw size: M4 x 20mm
minimum.
