- 12 -8S648FXP-RZ Series Motherboard
English

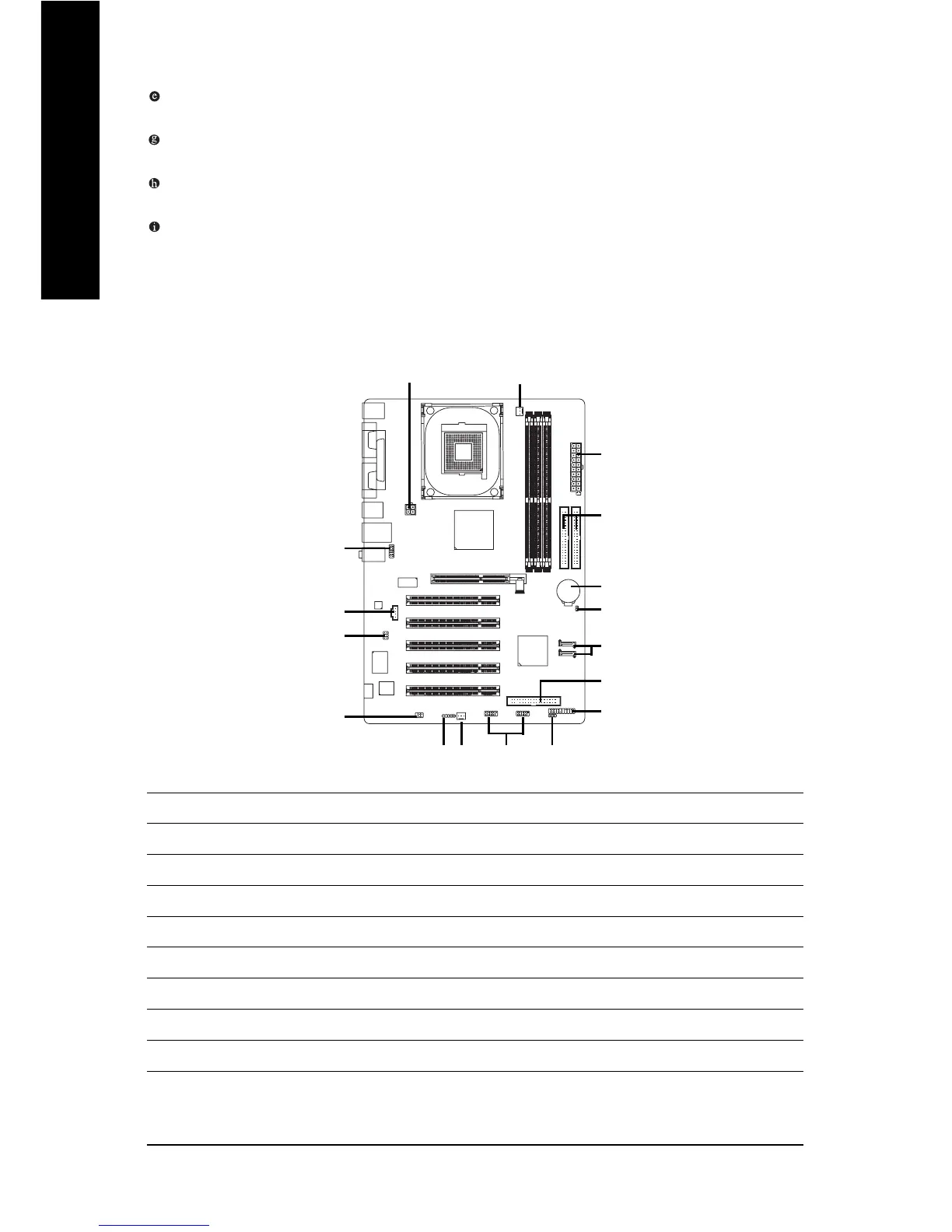

Step 4-2: Connectors Introduction
LAN port *
The provided Internet connection is fast Ethernet, providing data transfer speeds of 10/100Mbps.
Line In jack
Devices like CD-ROM, walkman etc. can be connected to Line In jack.
Line Out jack
Connect the stereo speakers or earphone to this connector.
MIC In jack
Microphone can be connect to MIC In jack.
2
31
8144
12
6
17
16
5
11
13
9
10
7
15
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN
5) FDD
6) IDE1 / IDE2
7) SATA0 / SATA1
8) PWR_LED
9) F_PANEL
10) F_AUDIO
11) SPDIF_IO
12) SUR_CEN
13) CD_IN
14) F_USB1 / F_USB2
15) IR
16) CLR_CMOS
17) BAT
"*" Only for 8S648FXP-RZ.
