- 14 -8S648FXP-RZ Series Motherboard
English

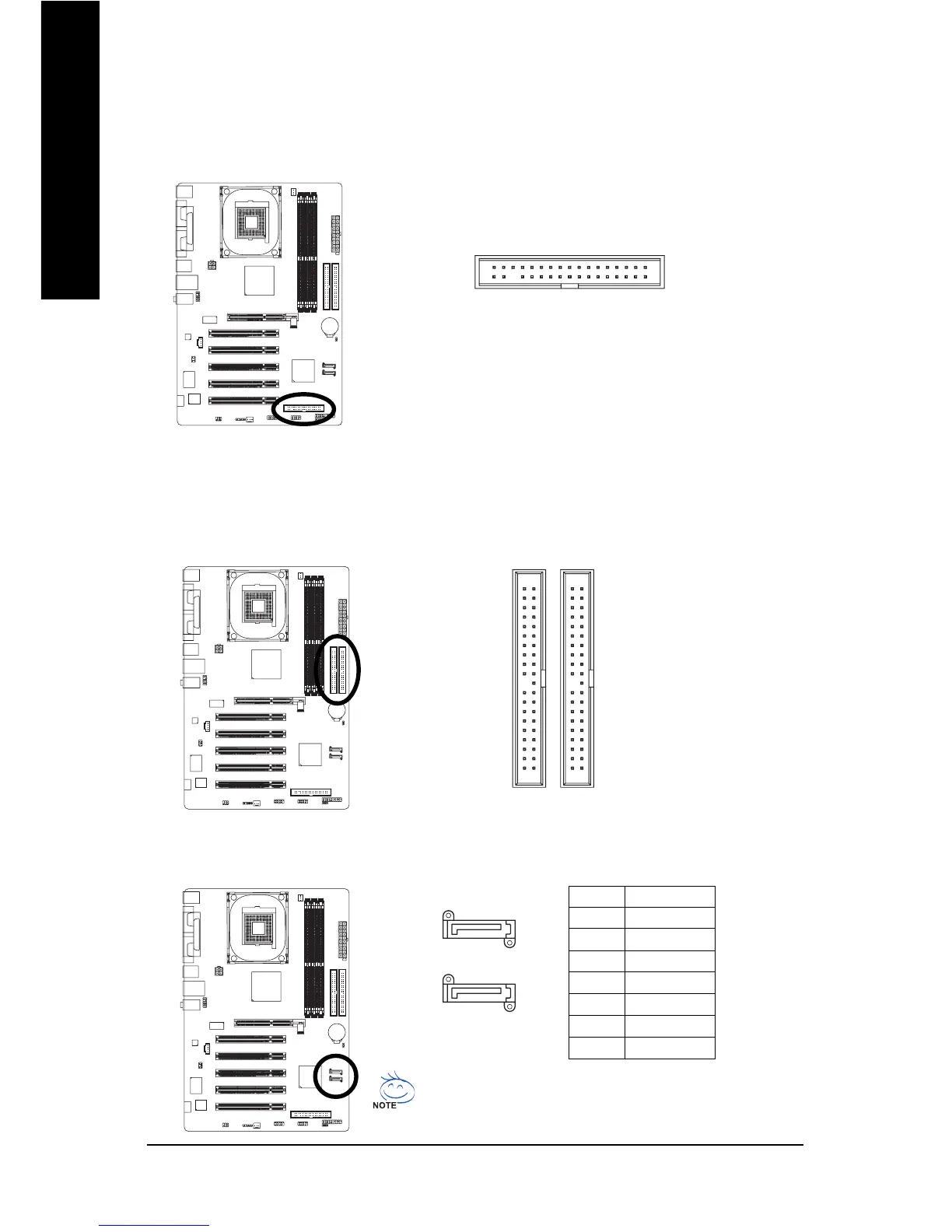

6) IDE1 / IDE2 (IDE1 / IDE2 Connector)
An IDE device connects to the computer via an IDE connector. One IDE connector can connect to
one IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical
drive). If you wish to connect two IDE devices, please set the jumper on one IDE device as Master
and the other as Slave (for information on settings, please refer to the instructions located on the IDE
device).
IDE1IDE2
1
39
2
40
5) FDD (FDD Connector)
The FDD connector is used to connect the FDD cable while the other end of the cable connects to
the FDD drive. The types of FDD drives supported are: 360KB, 720KB, 1.2MB, 1.44MB and
2.88MB. Please connect the red power connector wire to the pin1 position.
33
34
1
2
7) SATA0 / SATA1 (Serial ATA Connector)
Serial ATA can provide 150MB/s transfer rate. Please refer to the BIOS setting for the Serial ATA and
install the proper driver in order to work properly.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
7
1
SATA1
7
1
SATA0
For more detailed Serial ATA RAID setup information, please
visit our website at http:\\www.gigabyte.com.tw.
