- 17 - Hardware Installation Process
English

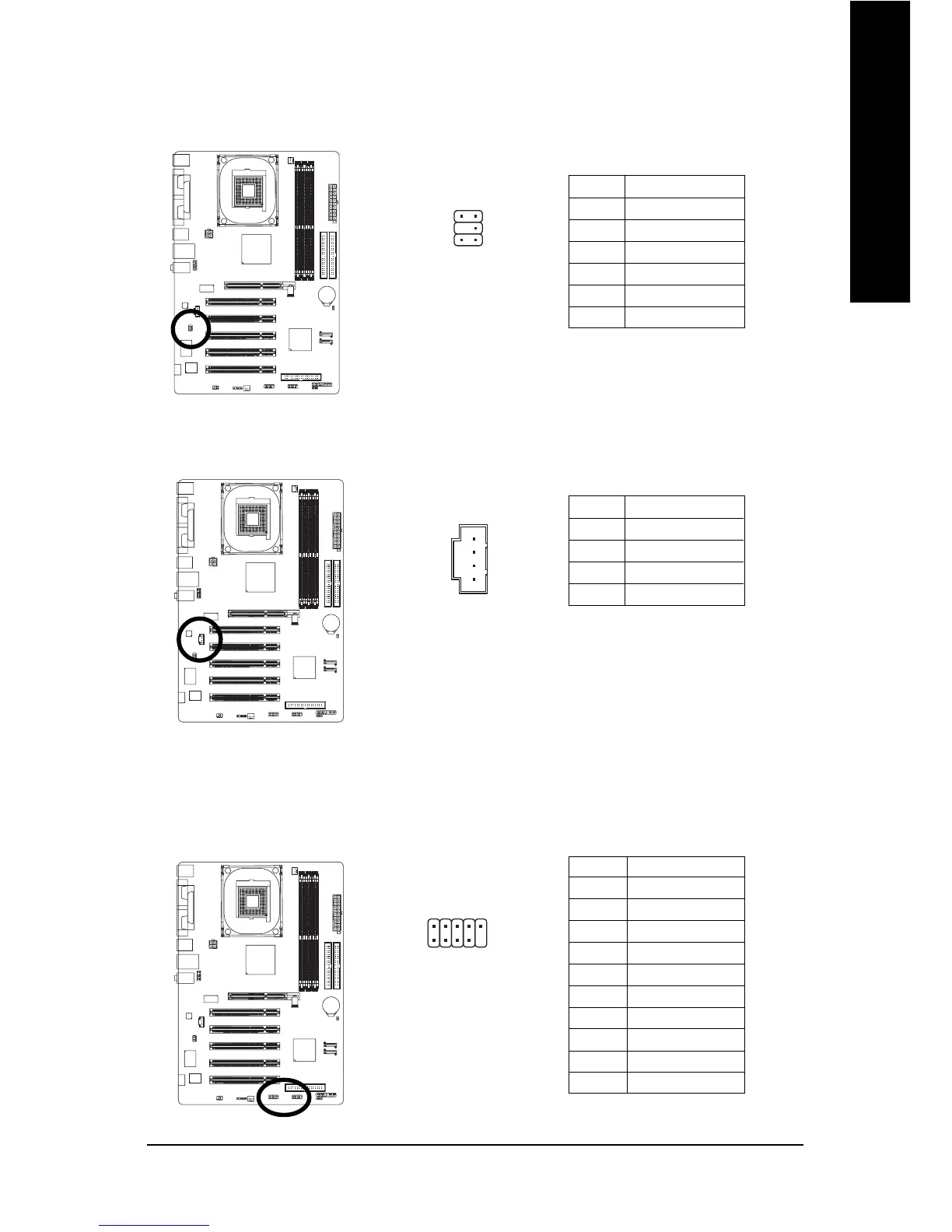

12) SUR_CEN (Surround Center Connector)
Please contact your nearest dealer for optional SUR_CEN cable.
1
5
6
2
13) CD_IN (CD In Connector)
Connect CD-ROM or DVD-ROM audio out to the CD_IN connector
1
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
Pin No. Definition
1 SUR OUTL
2 SUR OUTR
3 GND
4 No Pin
5 CENTER_OUT
6 BASS_OUT
14) F_USB1 / F_USB2 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while
you connect the front USB cable, incorrect connection between the cable and connector will make
the device unable to work or even damage it. For optional front USB cable, please contact your
local dealer.
210
1
9
Pin No. Definition
1 Power
2 Power
3 USB DX-
4 USB Dy-
5 USB DX+
6 USB Dy+
7 GND
8 GND
9 No Pin
10 NC
To Next Page
