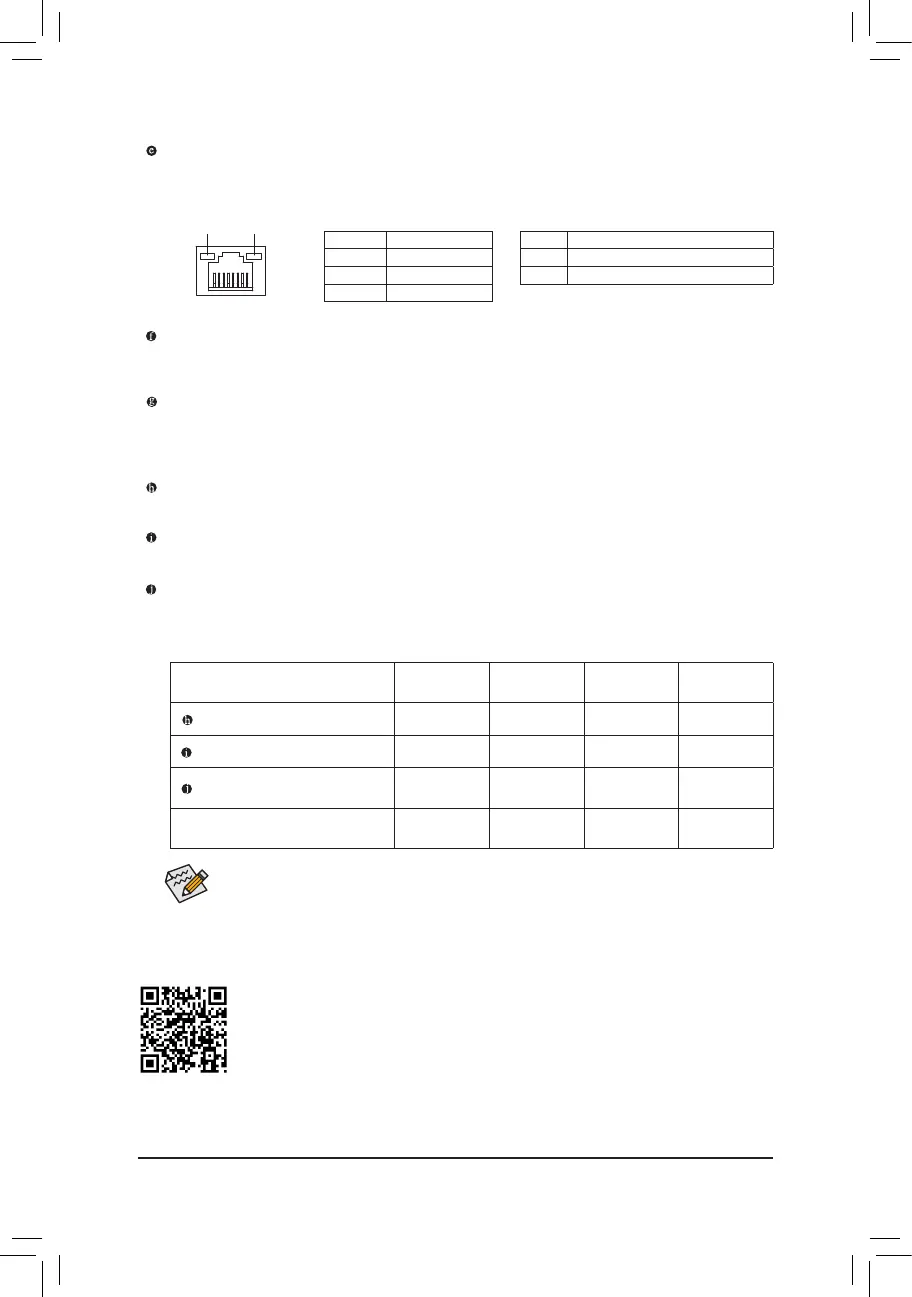

AudioJackCongurations:
Jack
Headphone/
2-channel
4-channel 5.1-channel 7.1-channel
Line In/Rear Speaker Out
a a a
Line Out/Front Speaker Out
a a a a
Mic In/Center/Subwoofer
Speaker Out
a a
Front Panel Line Out/Side
Speaker Out
a
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
• TheintegratedHD(HighDenition)audioprovidesjackretaskingcapabilitythatallowstheuser
to change the function for each jack through the audio driver.
• Tocongure7.1-channelaudio,youneedtoopentheaudiosoftwareandselectDeviceadvanced
settings>PlaybackDevicetochangethedefaultsettingrst.
(Note 1) For 3rd Generation AMD Ryzen
™
with Radeon
™
Graphics processors only.
(Note 2) The DVI-D port does not support D-Sub connection by adapter.
(Note 3) To enable the Q-Flash Plus function please visit the "Unique Features" webpage of GIGABYTE's website.
PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.
USB 3.2 Gen 1 Port
TheUSB3.2Gen1portsupportstheUSB3.2Gen1specicationandiscompatibletotheUSB2.0
specication.UsethisportforUSBdevices.
USB 3.2 Gen 1 Port (Q-Flash Plus Port)
TheUSB3.2Gen1portsupportstheUSB3.2Gen1specicationandiscompatibletotheUSB2.0
specication.UsethisportforUSBdevices.BeforeusingQ-FlashPlus
(Note 3)
, make sure to insert the
USBashdriveintothisportrst.
Line In/Rear Speaker Out
The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out/Front Speaker Out
The line out jack.
Mic In/Center/Subwoofer Speaker Out
The Mic in jack.
- 12 -

Gigabyte A520M AORUS ELITE Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 3rd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 5 5th Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
Maximum number of SMP processors	1
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4266 MHz
Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	AMD A520
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
ACPI version	5.0
BIOS memory size	128 Mbit
Desktop Management Interface (DMI) version	2.7
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Number of Parallel ATA connectors	-
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Bundled software	Norton Internet Security Realtek 8118 Gaming LAN Bandwidth Control Utility

Weight and Dimensions

Width	244 mm
