Gigabyte B450 AORUS PRO WIFI User Manual

- 5 -

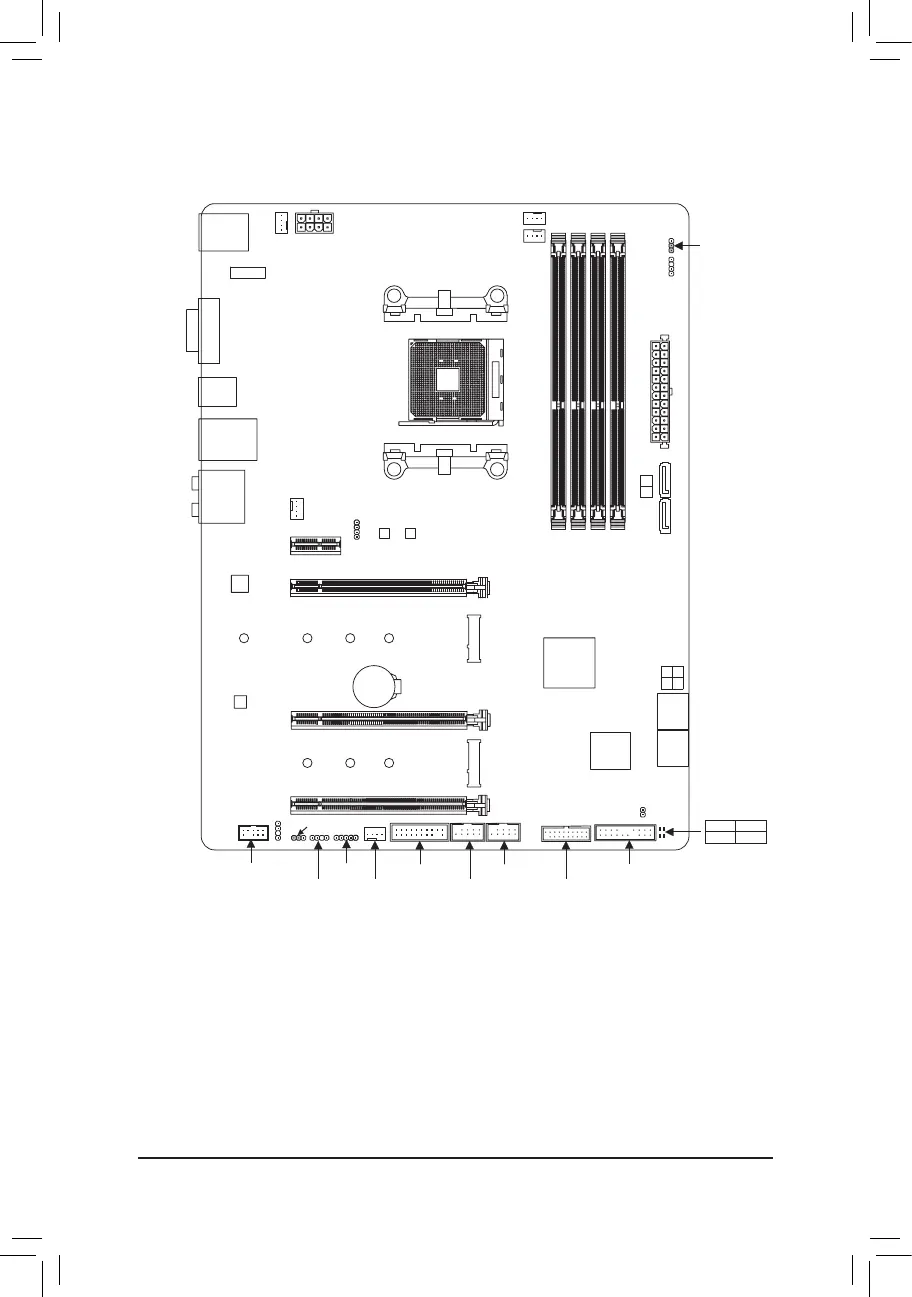

B450 AORUS PRO (WIFI) Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5 B450 AORUS PRO WIFI or B450 AORUS PRO motherboard
5 Two SATA cables 5 M.2 screw(s)/M.2 standoff(s)
5 Motherboard driver disk 5 One G Connector
5 User's Manual 5 One Wi-Fi antenna
(Note)
(Note) Only for the B450 AORUS PRO WIFI.
CPU DRAM
VGA BOOT
Socket AM4
AMDB450
R_USB30
CPU_FAN
ATX_12V
ATX
F_AUDIO
AUDIO
B_BIOS
PCIEX4
DDR4_2 DDR4_1
DDR4_4
DDR4_3
BAT
F_PANEL
PCIEX1_2
CLR_CMOS
CODEC
M_BIOS
PCIEX1_1
PCIEX16
SPDIF_O
B450 AORUS PRO (WIFI)
DVI
TYPEC
HDMI
USB30_LAN
SATA3
iTE
®
Super I/O
F_USB1
LED_C
SYS_FAN2
TPM
M2A_SOCKET
Intel
®
GbE LAN
0 2 1 3
F_USB30
42
6080
110
CPU_OPT
LED_CPU
M2_WIFI
(Note)
SYS_FAN1
42
6080
M2B_SOCKET
F_USB2SYS_FAN3_PUMPD_LED1
DLED_V_SW1
WIFI Module
(Note)
D_LED2
DLED_V_SW2
USB31
ASATA3
1 0

Gigabyte B450 AORUS PRO WIFI Specifications

General

Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	AMD B450
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200 MHz
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	16384 MB
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Processor socket	Socket AM4
Compatible processor series	AMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Number of M.2 (M) slots	2
PCI Express x16 (Gen 3.x) slots	3
RAID levels	0, 1, 10
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
HDD size	2.5/3.5 \
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	32 Mbit
Desktop Management Interface (DMI) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cables included	SATA
Bundled software	Norton Internet Security (OEM version) cFosSpeed

Weight and Dimensions

Depth	244 mm
Width	305 mm
