Gigabyte B450 I AORUS PRO WIFI User Manual

- 5 -

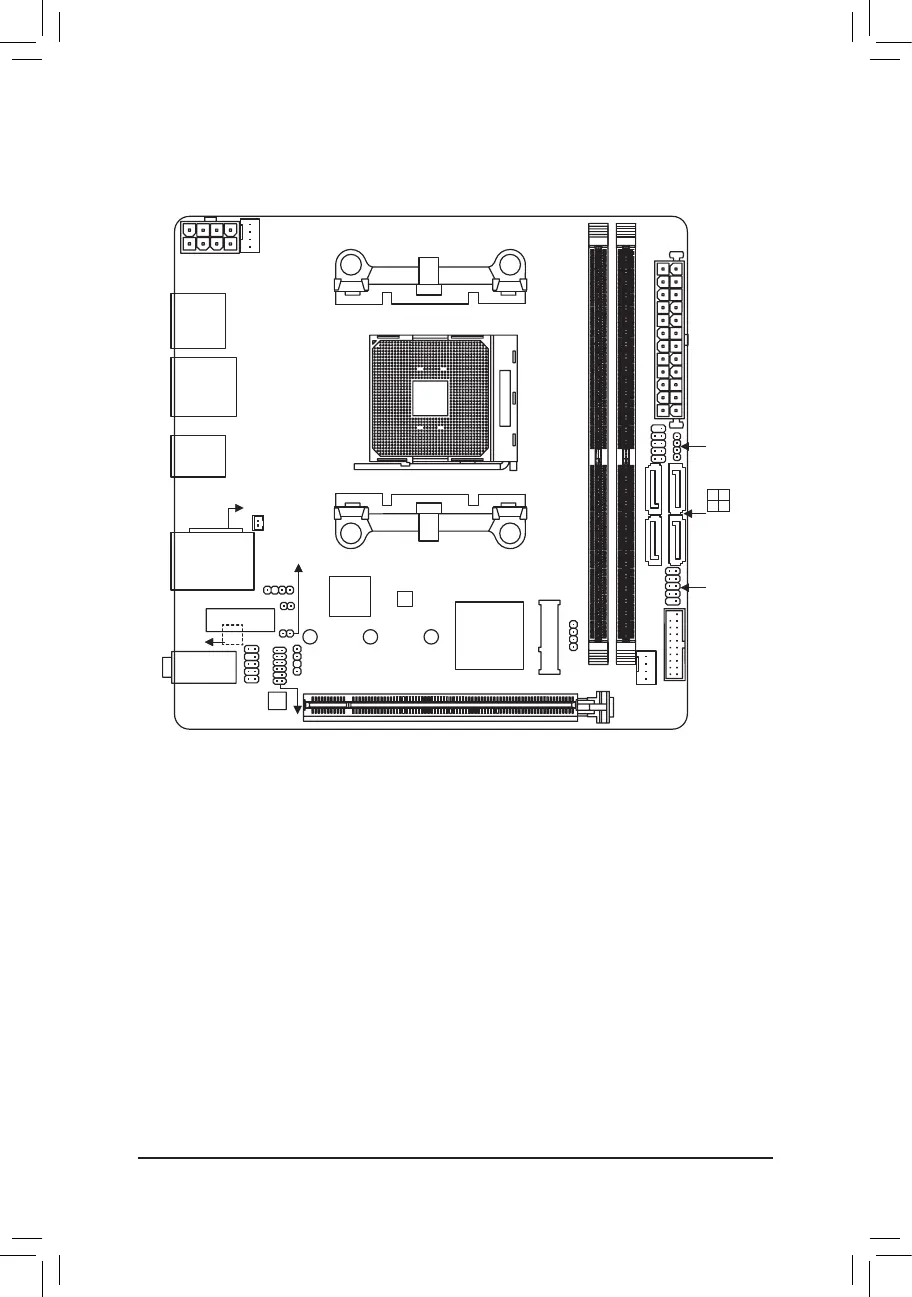

B450 I AORUS PRO WIFI Motherboard Layout
Socket AM4
R_USB31
USB30_LAN
HDMI 1
R_USB30
DP
HDMI
ATX
AUDIO
M2_WIFI
DDR4_2 DDR4_1
ATX_12V
AMD B450
LED_CPU
M_BIOS
PCIEX16
CODEC
F_PANEL
SPEAKERF_USB1
F_USB30
TPM
CLR_CMOS
CI
F_AUDIO
D_LED
SPDIF_O
SYS_FAN1
CPU_FAN
iTE
®
Super I/O
M2P
6080
SATA3
Intel
®
GbE LAN
(Note 1)
0 2 1 3
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5 B450 I AORUS PRO WIFI motherboard
5 Motherboard driver disk 5 I/O Shield
5 User's Manual 5 M.2 screw(s)/M.2 standoff(s)
5 Two SATA cables 5 One antenna
(Note 1) The chip is on the back of the motherboard.
(Note 2) The hole is on the PCH heatsink of the motherboard.
42
(Note 2)
BAT
B450 I AORUS PRO WIFI

Gigabyte B450 I AORUS PRO WIFI Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Audio chip	Realtek ALC1220-VB
Component for	PC
Motherboard chipset	AMD B450
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Windows operating systems supported	Windows 10, Windows 7
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400, 2667, 2933 MHz
DisplayPort version	1.2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Maximum resolution	4096 x 2304 pixels
Number of displays supported	3
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	5.0
Ethernet interface type	Gigabit Ethernet
RAID levels	0, 1, 10
Supported storage drive types	SSD
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Desktop Management Interface (DMI) version	2.7
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
