- 4 -

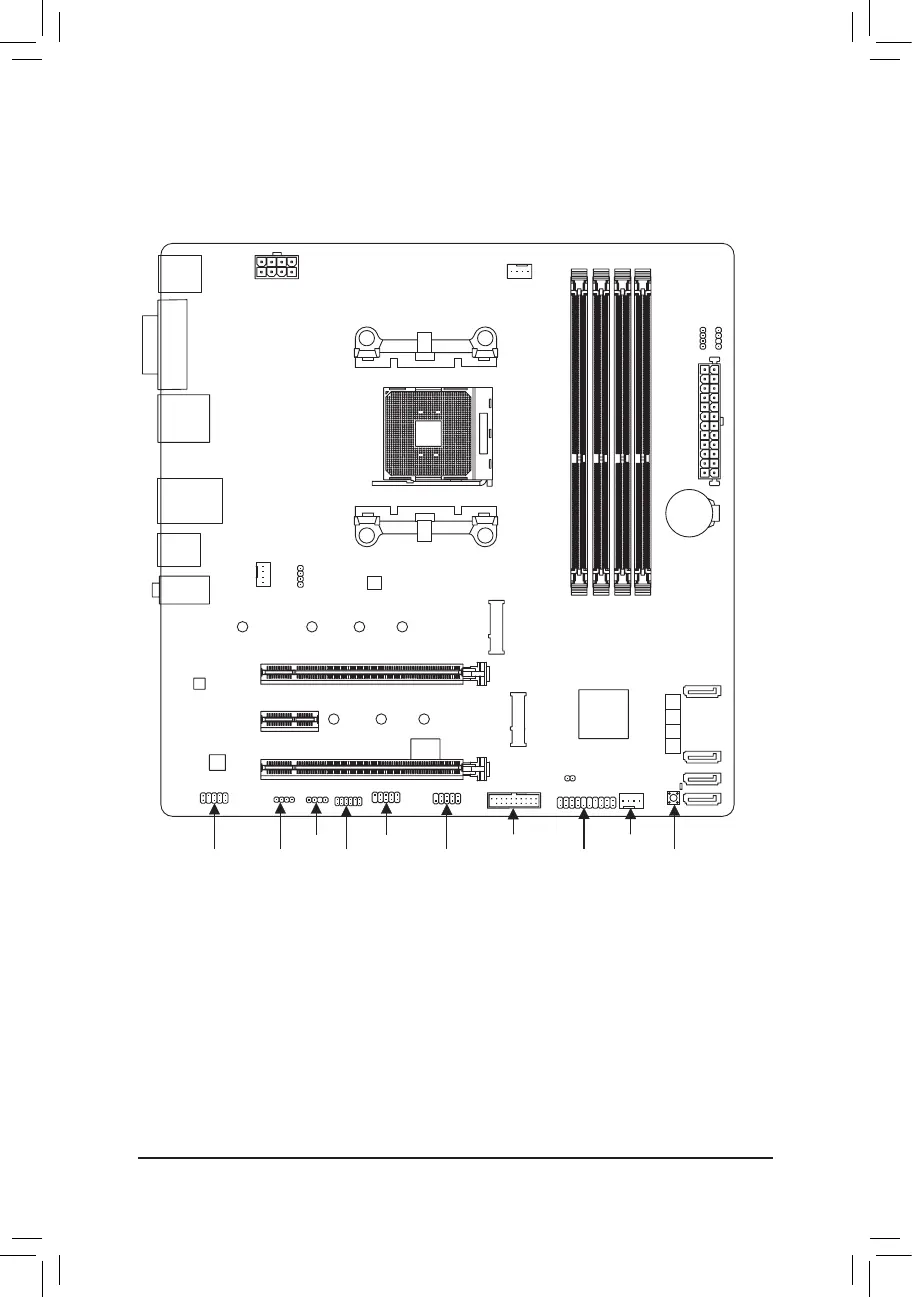

B550M DS3H Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5 B550M DS3H motherboard 5 Two SATA cables
5 Motherboard driver disc 5 I/O Shield
5 User's Manual
KB_MS_USB
CPU_FAN
SYS_FAN1
LED_CPU
ATX
LED_C2
D_LED2
B550M DS3H
AUDIO
DDR4_A1
DDR4_B2
BAT
ATX_12V
AMD
B550
HDMI
U32_1
CODEC
M_BIOS
DVI
PCIEX16
PCIEX1
iTE
®
Super
I/O
Realtek
®
GbELAN
F_U32 SYS_FAN2
F_USB1 F_PANEL QFLASH_PLUS
QFLED
COM
U32_2
Socket AM4
USB_LAN
CLR_CMOS
M2A_CPU
M2B_SB
80
80
60
60
42
42
110
0 1 2 3
SATA3
DDR4_A2
DDR4_B1
TPM
D_LED1
LED_C1F_AUDIO
PCIEX4
